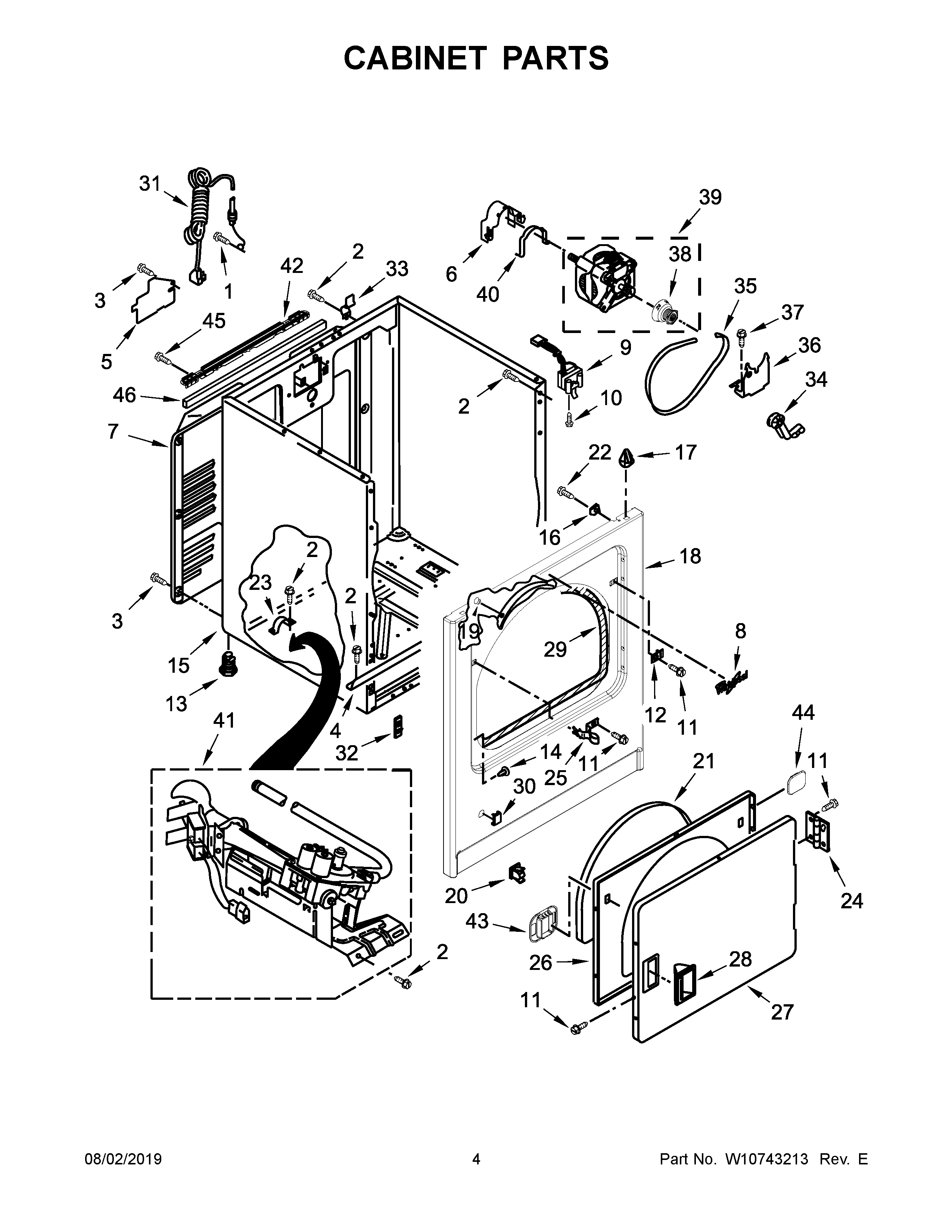

WGD7300DW0 03 – CABINET PARTS

WGD7300DW0 03 – CABINET PARTS

Written by

in

WGD7300DW0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10850756 Whirlpool Screw
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4BRACKET, CABINET
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7W10634729 Whirlpool Rear Panel
8W11178521 Whirlpool Dishwasher Nameplate
9WP3406107 Whirlpool Dryer Door Switch
10WP3395530 Whirlpool Screw
11WP488627 Whirlpool Refrigerator Screw
12W11684591 Whirlpool Dryer Plug
14WP3404413 Whirlpool Plug
158533643 Whirlpool Dryer White Cabinet
16WP98234 Whirlpool Nut
17WP8066092 Whirlpool Panel Clip
18W10248059 Whirlpool Panel
19279220 Whirlpool Clip
20W11429587 Whirlpool Catch Assembly
21SEAL-DOOR DRYER
22SCREW
23CLAMP, PIPE
24WPW10362431 Whirlpool Hinge Assembly
25W11429589 Whirlpool Strike
26WPW10463967 Whirlpool Door Assembly
27W10861227 Whirlpool Door Assembly
28WPW10549553 Whirlpool Dryer Door Handle
29W11035878 Whirlpool Bearing and Seal
30W10811916 Whirlpool Plug
31W11222083 Whirlpool Power Cord
32W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33W11715722 Whirlpool Hinge
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35W11025122 Whirlpool Belt
36WP348780 Whirlpool Base
373400500 Whirlpool Screw
38WP8066184 Whirlpool Dryer Motor Pulley
39279827 Whirlpool Dryer Drive Motor
40CLAMP
41W10823508 Whirlpool Gas Burner
42W10641295 Whirlpool Bracket
43WPW10529197 Whirlpool Catch Assembly
44W11173656 Whirlpool Cover
45W11693756 Whirlpool Screw Assembly
46W10685675 Whirlpool Seal
