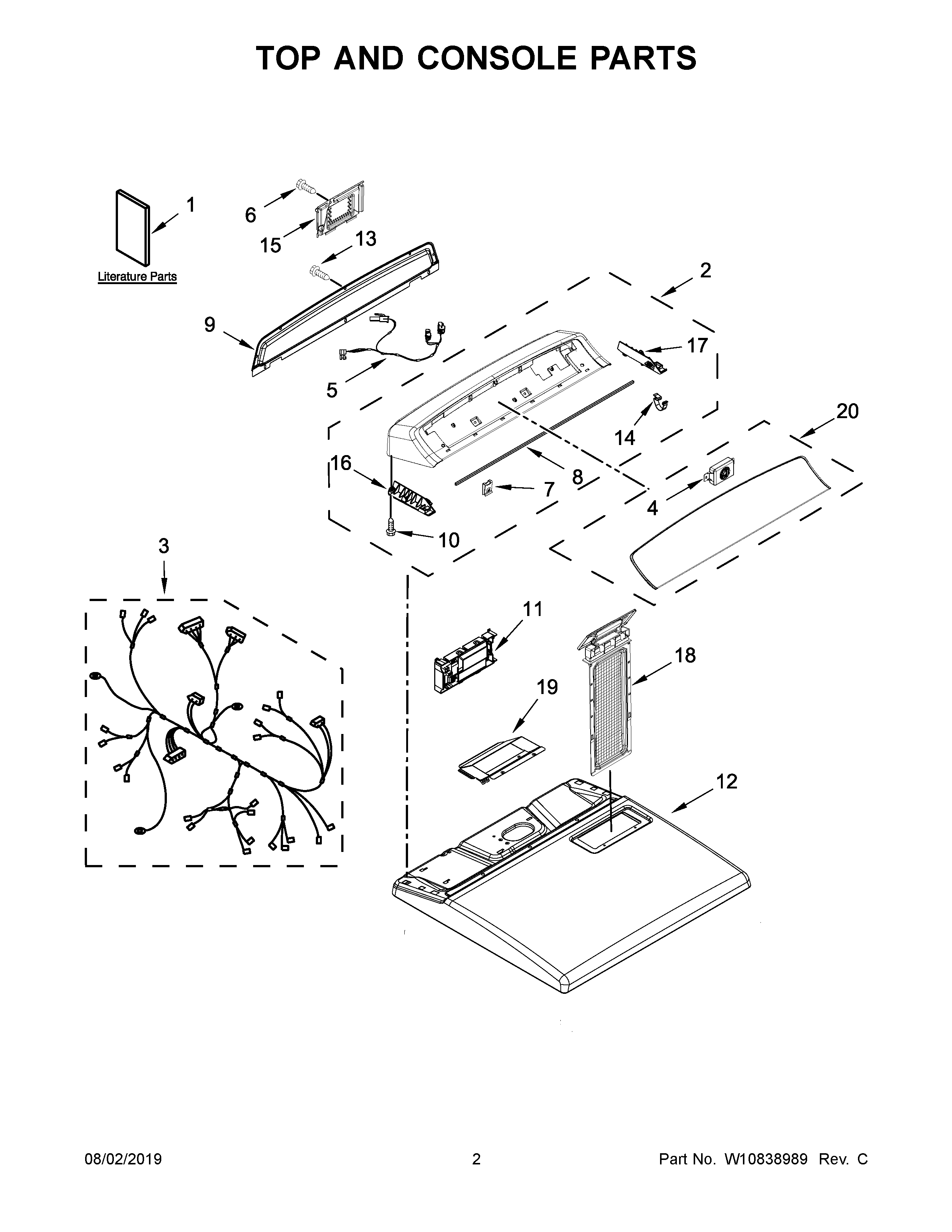

WGD7300DW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1C	QUICKSTART GUIDE
1B	TECH SHEET
1A	GUIDE, USE AND CARE
1	INSTALLATION INSTRUCTIONS
2	W11050696 Whirlpool Console
3	W10706061 Whirlpool Wire Harness
4	W11123146 Whirlpool Speaker
5	W10634454 Whirlpool Wire Harness User Interface
6	WP90767 Whirlpool Screw
7	W11213336 Whirlpool Nut
8	W11721376 Whirlpool Seal Assembly
9	W10775189 Whirlpool Rear Panel
10	W10853898 Whirlpool Screw
11	W10802078 Whirlpool Electronic Control Board + Core
12	W11222514 Whirlpool Top Assembly
14	WP8312709 Whirlpool Endcap Clip
15	W11539855 Whirlpool Refrigerator Pump
16	W10631629 Whirlpool Bracket
17	W10631630 Whirlpool Bracket Assembly
18	SCREEN
19	W10662472 Whirlpool Cover Assembly
20	ASSEMBLY, FASCIA
