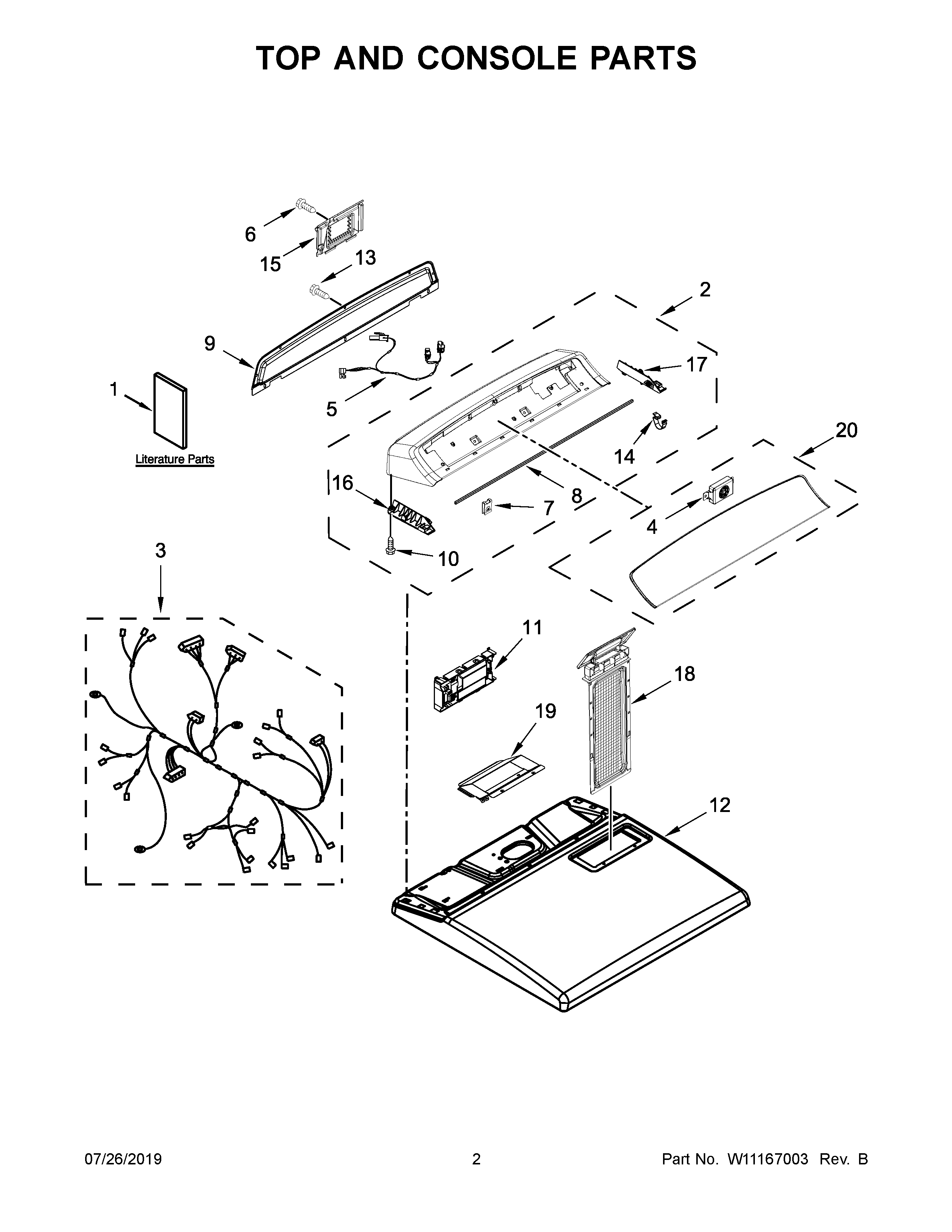

WGD7300DW3 02 – TOP AND CONSOLE PARTS

WGD7300DW3 02 – TOP AND CONSOLE PARTS

Written by

in

WGD7300DW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BTECH SHEET
1CQUICKSTART GUIDE
1AGUIDE, USE AND CARE
2W11050696 Whirlpool Console
3W10865052 Whirlpool Wire Harness
4W11123146 Whirlpool Speaker
5W10634454 Whirlpool Wire Harness User Interface
6WP90767 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10775189 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11W11126817 Whirlpool Electronic Control Board + Core
12W11222514 Whirlpool Top Assembly
13WP693995 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15W11539855 Whirlpool Refrigerator Pump
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18SCREEN
19W10662472 Whirlpool Cover Assembly
20ASSEMBLY, FASCIA
