WGD7300XW0 01 – TOP AND CONSOLE PARTS
Written by
in

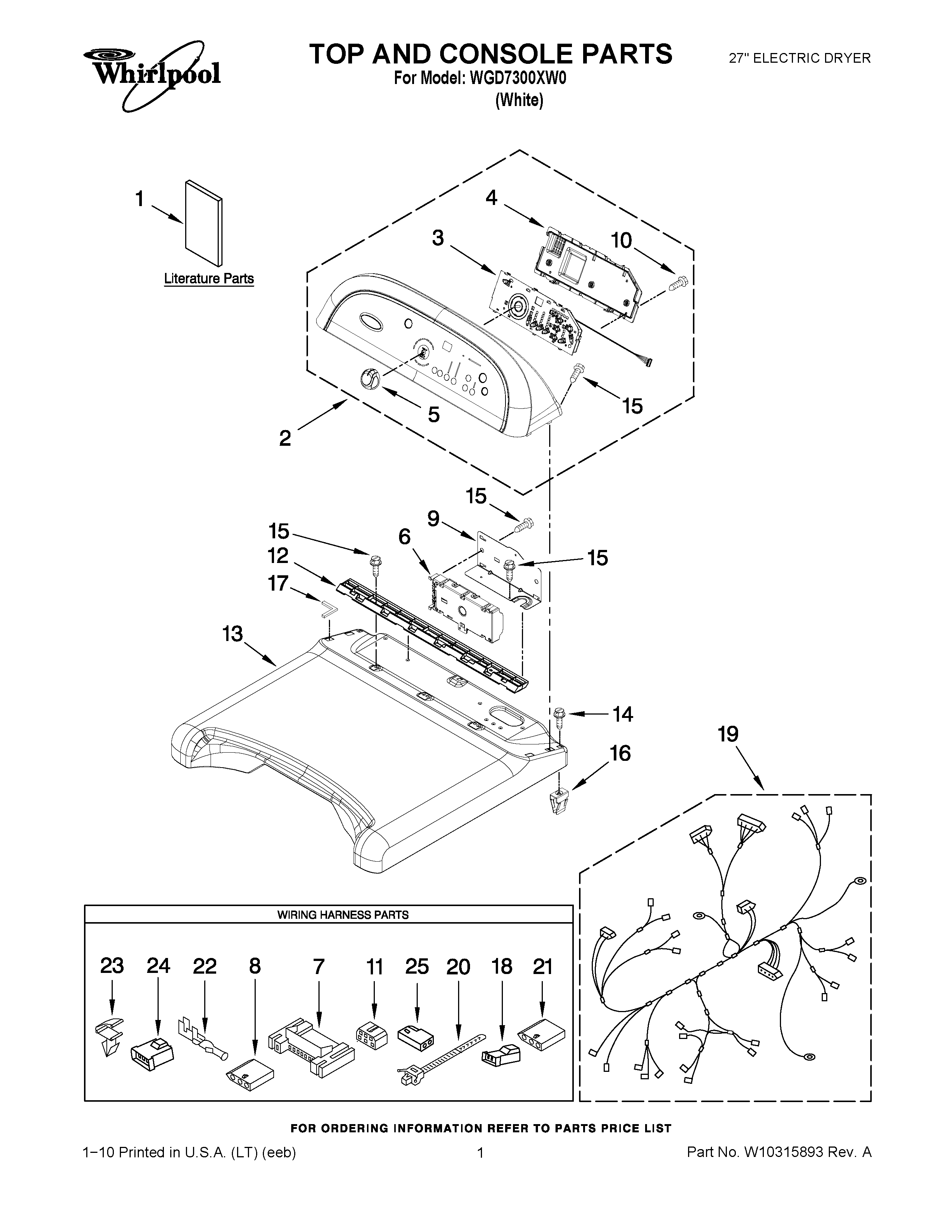

WGD7300XW0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
INSTALLATION INSTRUCTION
1
TECH, SHEET
1
GUIDE, USE & CARE
2
PANEL, CONSOLE
3
USER INTERFACE
4
8564265 Whirlpool Cover
5
WPW10211335 Whirlpool Knob
6
CONTROL ELECTRONIC
7
3395683 Whirlpool Connector
8
353424 Whirlpool Connector
9
BRACKET, MACHINE CONTROLLER
10
WP4449745 Whirlpool Screw
11
Block, Disconnect
12
Bracket, Console
13
TOP
14
W10131402 Whirlpool Screw
15
WP33001882 Whirlpool Screw
16
W10112673 Whirlpool Clip
17
W10185554 Whirlpool Seal Assembly
18
WP3403499 Whirlpool Connector
19
HARNESS, WIRING MAIN
20
WP3391018 Whirlpool Wire Tie
21
3936144 Whirlpool Connector
22
WP94614 Whirlpool Terminal
23
WP3394427 Whirlpool Clip
24
WP3403498 Whirlpool Connector
25
Receptacle, Latching (2-Way) (Uses Terminal 94614)
←
