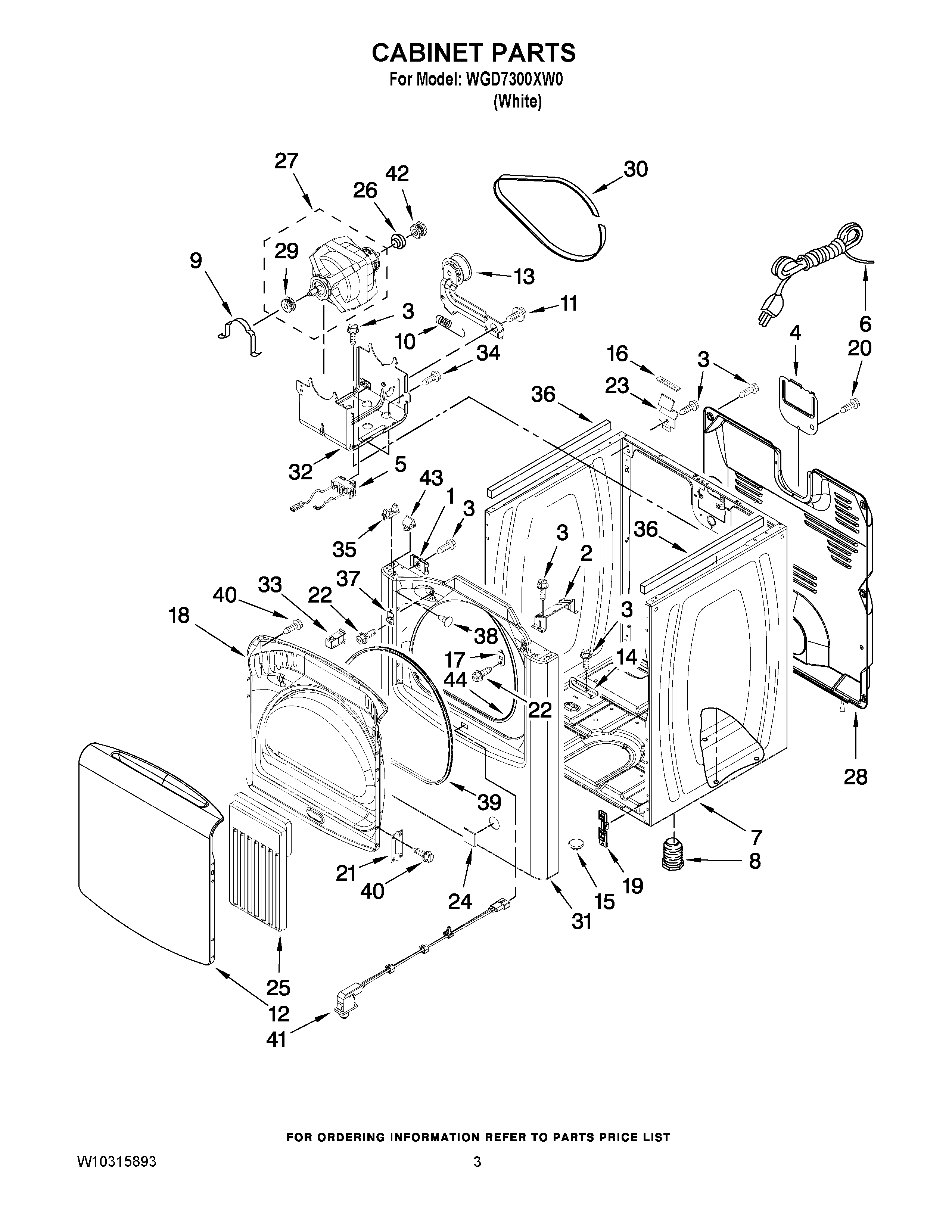

WGD7300XW0 02 – CABINET PARTS

WGD7300XW0 02 – CABINET PARTS

Written by

in

WGD7300XW0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1Clip, Ground (2)
2BRACKET, BURNER
3WP3390631 Whirlpool Screw
4W11736322 Whirlpool Cover Assembly
5WPW10411937 Whirlpool Switch
6W11222083 Whirlpool Power Cord
7W10223154 Whirlpool Cabinet Assembly
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP8571361 Whirlpool Door
13WPW10547292 Whirlpool Dryer Idler Pulley
14BRACKET-GAS PIPE
158578560 Whirlpool Plug
1618849 Whirlpool Pad
17WPW10111888 Whirlpool Plate Assembly
18DOOR INNER
19W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20W10850756 Whirlpool Screw
21WP8565018 Whirlpool Hinge
22WP3400805 Whirlpool Screw Assembly
23WP8066217 Whirlpool Hinge
24W10811916 Whirlpool Plug
25FILLER, DOOR
26WP3393657 Whirlpool Belt Retainer
27WPW10448896 Whirlpool Drive Motor
28Panel, Rear
29PULLEY, BLOWER
30WP8547157 Whirlpool Dryer Drum Drive Belt
31W10312757 Whirlpool Oven Panel
32WPW10308685 Whirlpool Base
33WPW10111905 Whirlpool Dryer Door Catch
34W10002600 Whirlpool Screw
35WP8568303 Whirlpool Lock Assembly
36WPW10157932 Whirlpool Seal Foam
37W10295405 Whirlpool Strike
38PLUG, HOLE
39W10239307 Whirlpool Door Seal
40WP488627 Whirlpool Refrigerator Screw
41W10201785 Whirlpool See Note Substitutions by Model Number
42WP8547171 Whirlpool Motor Pulley
43WP8576625 Whirlpool Lock
44W10044490 Whirlpool Seal Assembly
