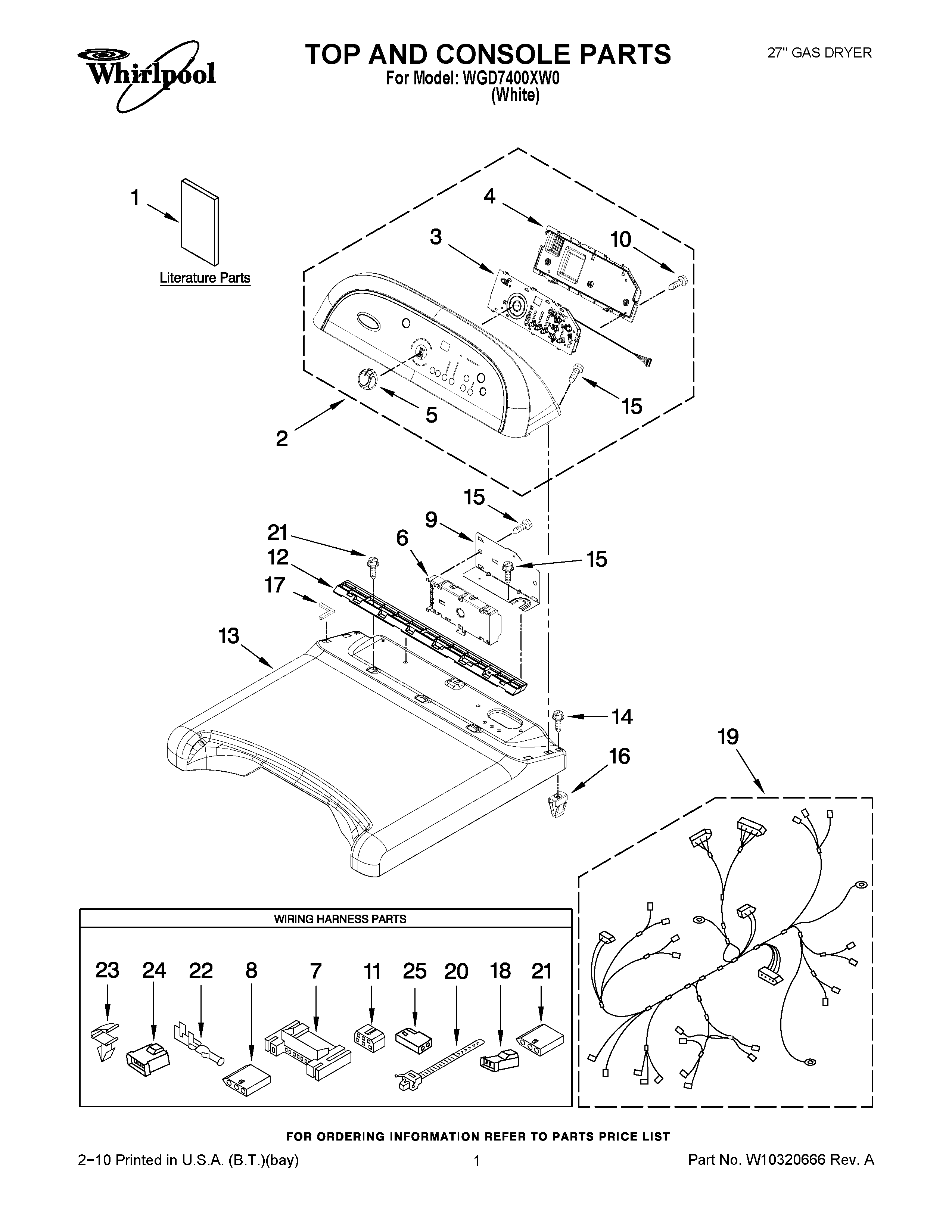

WGD7400XW0 01 – TOP AND CONSOLE PARTS

WGD7400XW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD7400XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTION
1TECH, SHEET
1GUIDE, USE & CARE
1INSTALLATION INSTRUCTION (SPANISH)
1GUIDE, USE & CARE (SPANISH)
2PANEL, CONSOLE
3WPW10298627 Whirlpool Electronic Control Board
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6CONTROL ELECTRONIC
73395683 Whirlpool Connector
8353424 Whirlpool Connector
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11Block, Disconnect
12Bracket, Console
13TOP
14W10131402 Whirlpool Screw
15WP33001882 Whirlpool Screw
16W10112673 Whirlpool Clip
17W10185554 Whirlpool Seal Assembly
18WP3403499 Whirlpool Connector
19W10319803 Whirlpool Wire Harness
20WP3391018 Whirlpool Wire Tie
213936144 Whirlpool Connector
22WP94614 Whirlpool Terminal
23WP3394427 Whirlpool Clip
24WP3403498 Whirlpool Connector
25Receptacle, Latching (2-Way) (Uses Terminal 94614)
