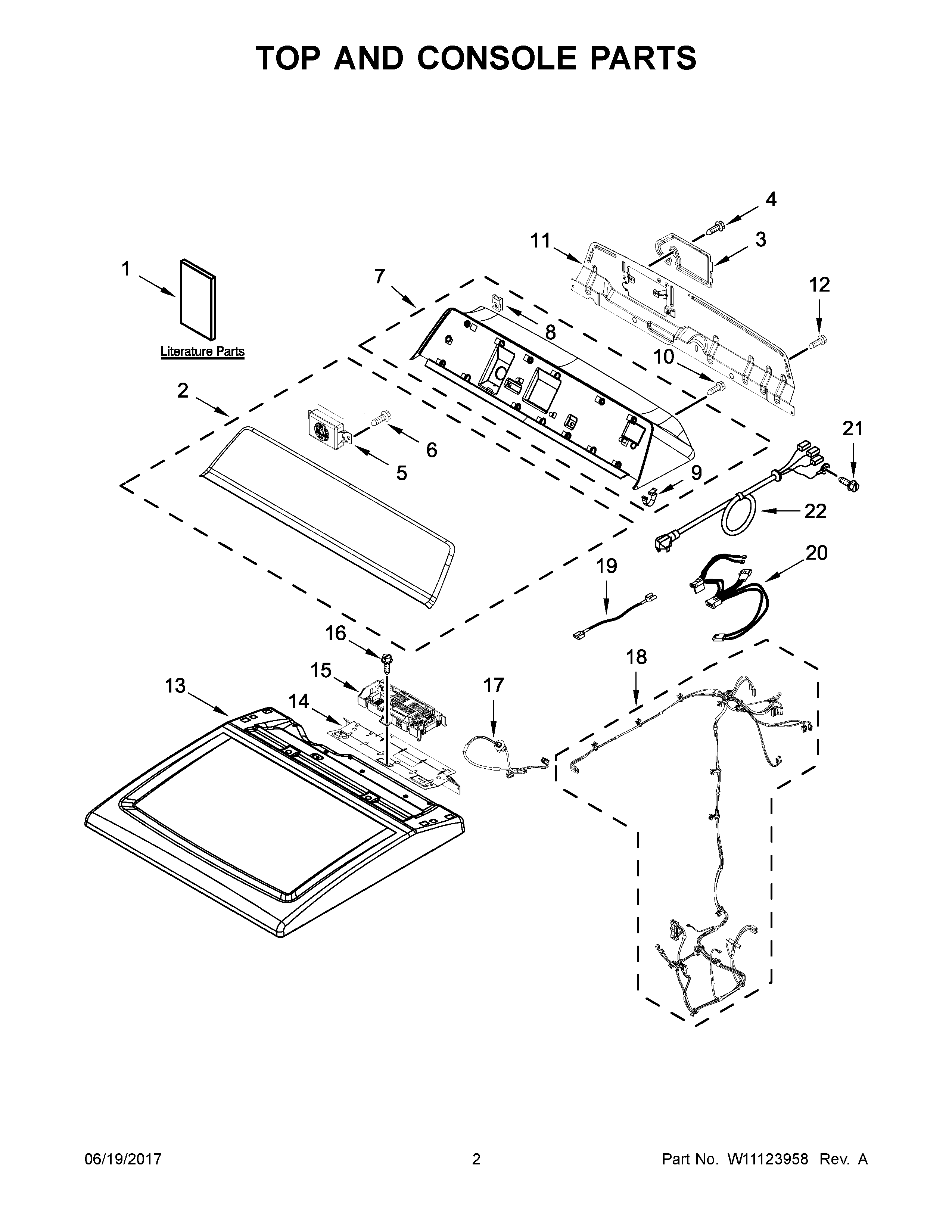

WGD7500GC0 02 – TOP AND CONSOLE PARTS

WGD7500GC0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD7500GC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1AGUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
1CQUICK START GUIDE
2W11124268 Whirlpool Console Assembly
3COVER, POWER CORD
4WP3390631 Whirlpool Screw
5W11123146 Whirlpool Speaker
6W11631670 Whirlpool Screw
7W11124266 Whirlpool Console
8W11213336 Whirlpool Nut
9WP8312709 Whirlpool Endcap Clip
10WP9740848 Whirlpool Dishwasher Screw
11W11089307 Whirlpool Rear Panel
12W10853898 Whirlpool Screw
13W11641122 Whirlpool Top
14W11431865 Whirlpool Bracket
15W11124284-includeCORE Whirlpool W11124284 Washer Electronic Control Board + Core
16WP488729 Whirlpool Refrigerator Door Screw
17W10906300 Whirlpool Wire Harness
18W10907916 Whirlpool Wire Harness
19W10525140 Whirlpool Wire Harness
20W10305870 Whirlpool Wire Harness
21W10850756 Whirlpool Screw
22W11222083 Whirlpool Power Cord
