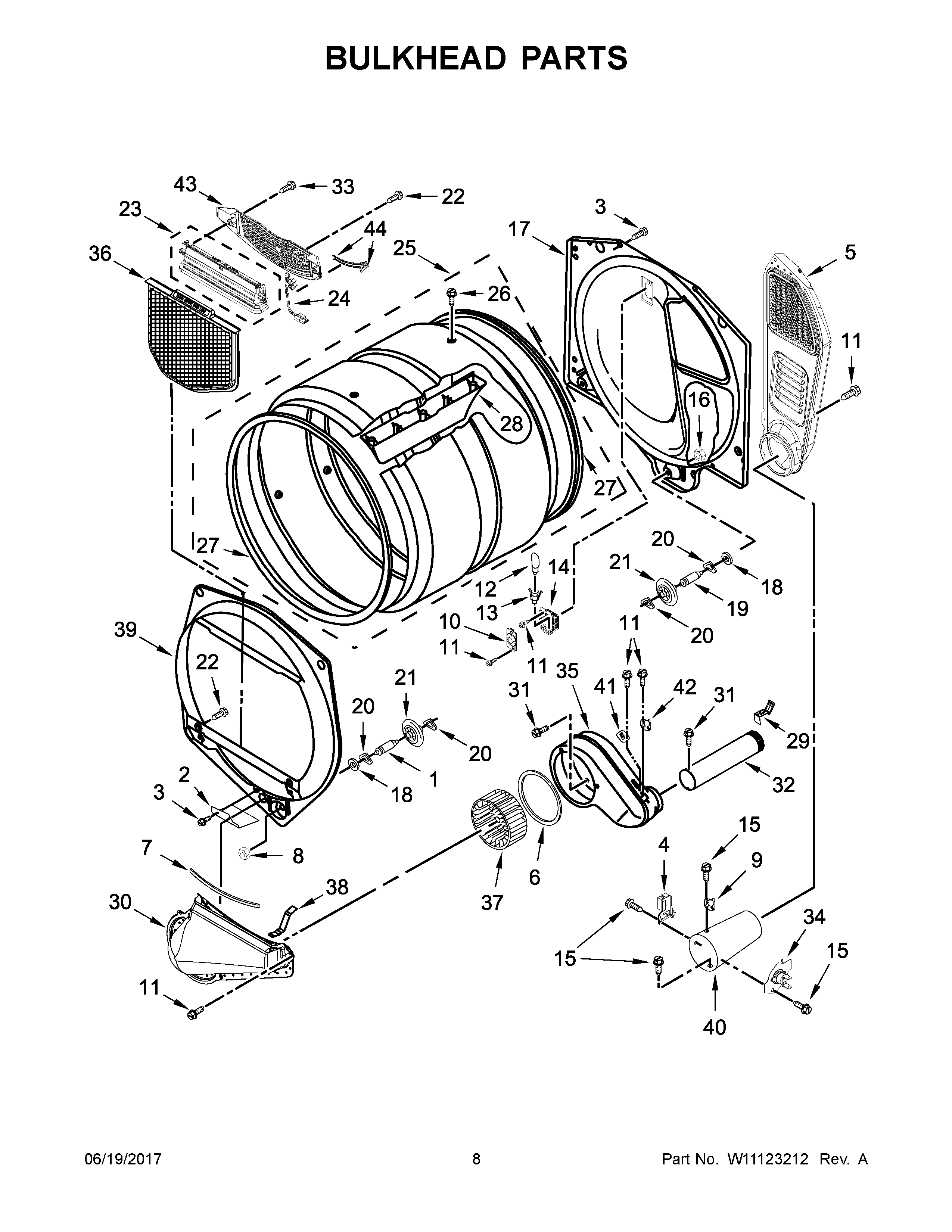

WGD7500GW0 05 – BULKHEAD PARTS

WGD7500GW0 05 – BULKHEAD PARTS

Written by

in

WGD7500GW0 05 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2W11257251 Whirlpool Shield
3WP488729 Whirlpool Refrigerator Door Screw
4WP338906 Whirlpool Dryer Gas Sensor
5WPW10293765 Whirlpool Air Duct
6WP697770 Whirlpool Blower Cover Plate Seal
7WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9THRMST-FIX
10W11226088 Whirlpool Lens Assembly
11WP693995 Whirlpool Screw
12WP22002263 Whirlpool Dryer 10W Light Bulb
13W11222979 Whirlpool Socket
148578825 Whirlpool Bracket
15WP90767 Whirlpool Screw
16WPW10080190 Whirlpool Nut
17W11299301 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
23W11129408 Whirlpool Out Housing
24WPW10298258 Whirlpool Wire Harness
25W10545923 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WPW10113136 Whirlpool Drum Baffle
29W11684573 Whirlpool Clip Assembly
30WPW10128606 Whirlpool Lint Duct
31WP489463 Whirlpool Refrigerator Screw
32279936 Whirlpool Exhaust Pipe
33WP308685 Whirlpool Microwave Screw
34WP8573713 Whirlpool Thermal Fuse
35W10888146 Whirlpool Housing
36W10120998 Whirlpool Dryer Lint Screen Filter
37WHEEL
38WP8066208 Whirlpool Clip
39WP697557 Whirlpool Bulkhead Assembly
40WP8573824 Whirlpool Funnel
41FUSE-THRML
42WP8577274 Whirlpool Dryer Thermistor
43W11086603 Whirlpool Dryer Link Screen Air Grille
44WP3387223 Whirlpool Electrode Assembly
