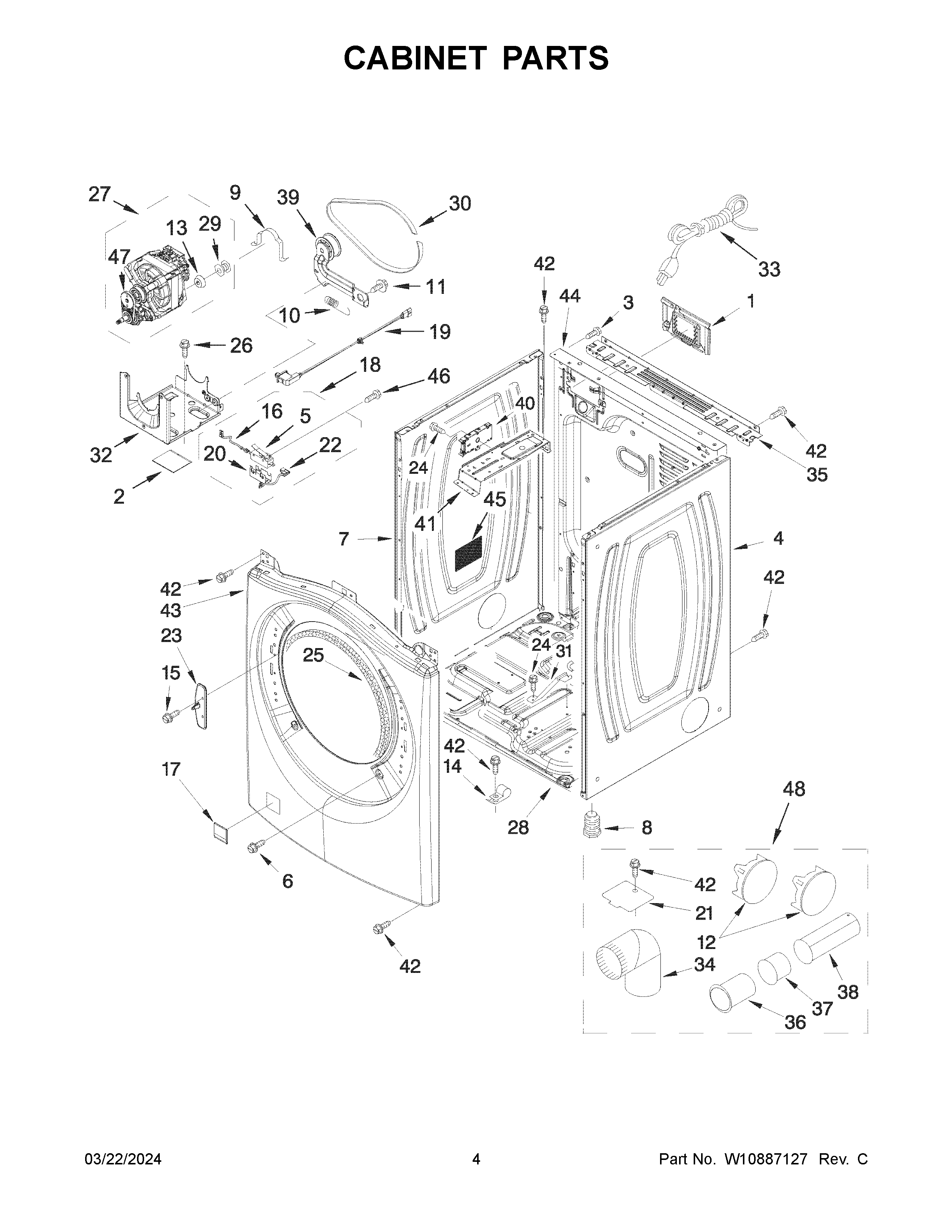

WGD7590FW0 03 – CABINET PARTS

Products

Position	Product
1	W10819767 Whirlpool Cover
2	W11113654 Whirlpool Pad
3	W10850756 Whirlpool Screw
4	W11310043 Whirlpool Panel
5	WP8564010 Whirlpool Plug Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
8	49621 Whirlpool Leveling Feet
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	WP3393657 Whirlpool Belt Retainer
14	3978776 Whirlpool Bracket
15	SCREW
16	W10167613 Whirlpool Wire
17	W10811916 Whirlpool Plug
19	WPW10350906 Whirlpool Door Switch
20	W11247665 Whirlpool Switch
21	WPW10354249 Whirlpool Cover
22	WIRE, MOTOR TO BELT SWITCH
23	WPW10208250 Whirlpool Strike
24	WP693995 Whirlpool Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	W11234001 Whirlpool Drive Motor
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	BELT
31	W10181903 Whirlpool Bracket
32	W11676491 Whirlpool Base
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	WPW10344192 Whirlpool Idler Pulley
40	W11537223-includeCORE Whirlpool W11537223 Refrigerator Electronic Control
41	BRACKET, CONTROL
42	WP488729 Whirlpool Refrigerator Door Screw
43	WPW10363953 Whirlpool Dishwasher Panel
44	W10487431 Whirlpool Rear Panel
45	W11668653 Whirlpool Sound Panel
46	WP98129 Whirlpool Screw
47	WP3405160 Whirlpool Belt Assembly
48	W10323246 Whirlpool Dryer Vent Kit 4-Way
