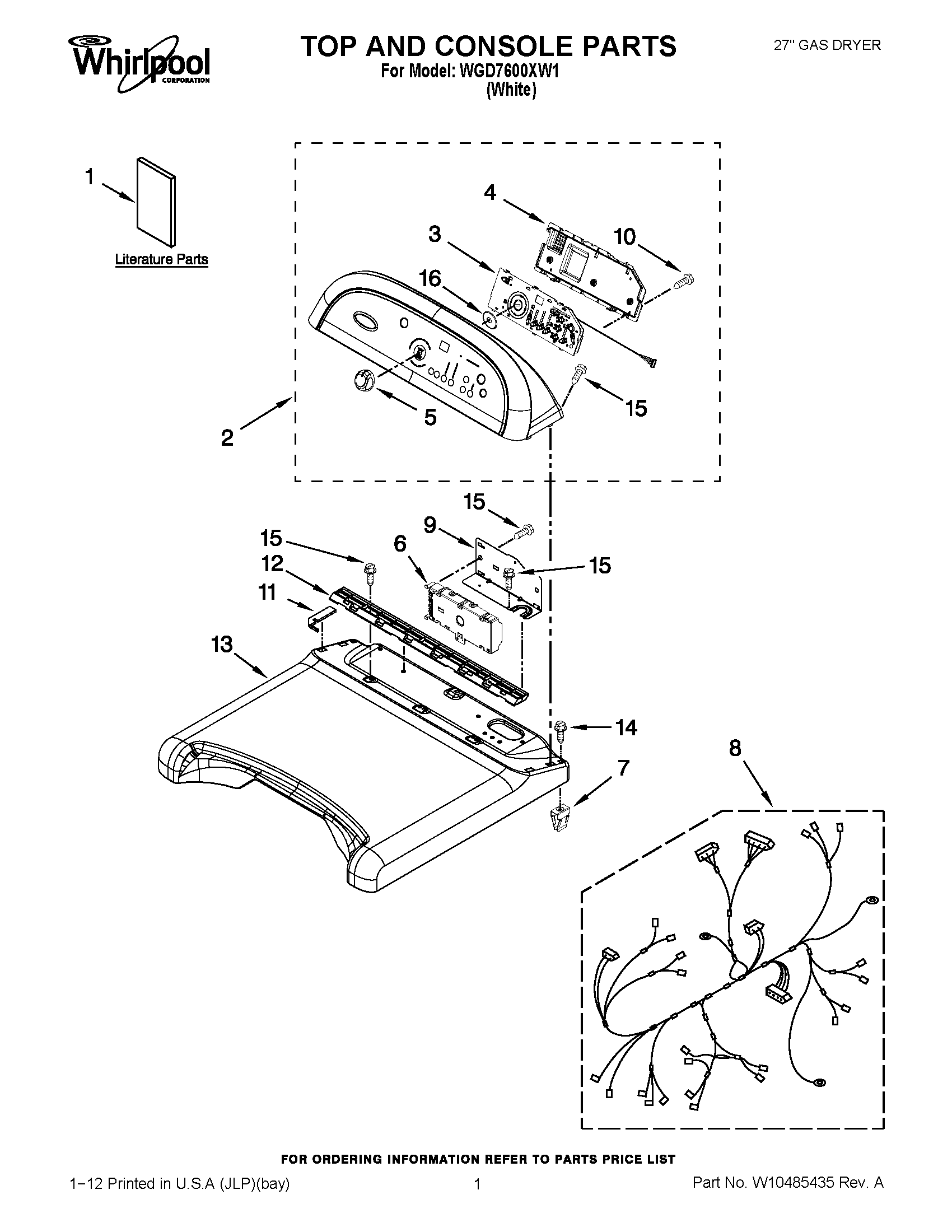

WGD7600XW1 01 – TOP AND CONSOLE PARTS

WGD7600XW1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD7600XW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTION
1	TECH, SHEET
1	GUIDE, USE & CARE
2	PANEL, CONSOLE
3	USER INTERFACE
4	8564265 Whirlpool Cover
5	WPW10211335 Whirlpool Knob
6	CONTROL ELECTRONIC
7	W10112673 Whirlpool Clip
8	HARNESS, WIRING MAIN
9	BRACKET, MACHINE CONTROLLER
10	WP4449745 Whirlpool Screw
11	W10185554 Whirlpool Seal Assembly
12	Bracket, Console
13	TOP
14	W10131402 Whirlpool Screw
15	WP33001882 Whirlpool Screw
16	SEAL, USER INTERFACE
