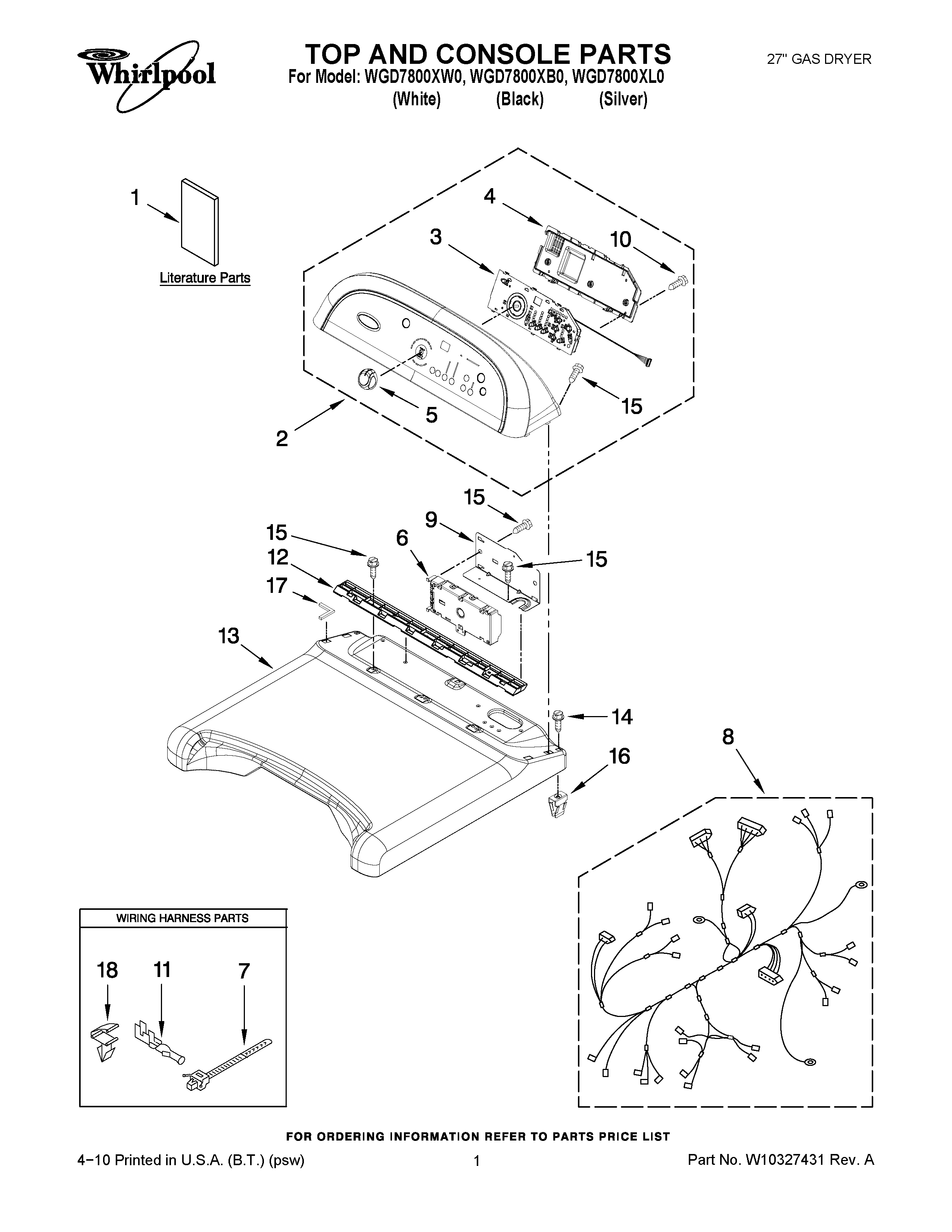

WGD7800XW0 01 – TOP AND CONSOLE PARTS

WGD7800XW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD7800XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE (SPANISH)
1INSTALLATION INSTRUCTION (SPANISH)
1GUIDE, USE & CARE
1INSTALLATION INSTRUCTION
1TECH, SHEET
2PANEL, CONSOLE (SILVER)
2PANEL, CONSOLE (BLACK)
2PANEL, CONSOLE (WHITE)
3WPW10298625 Whirlpool Electronic Control Board
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6CONTROL ELECTRONIC
7WP3391018 Whirlpool Wire Tie
8W10319805 Whirlpool Wire Harness
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11WP94614 Whirlpool Terminal
12Bracket, Console
13TOP
13TOP (BLACK)
13TOP (SILVER)
14W10131402 Whirlpool Screw
15WP33001882 Whirlpool Screw
16W10112673 Whirlpool Clip
17W10185554 Whirlpool Seal Assembly
18WP3394427 Whirlpool Clip
