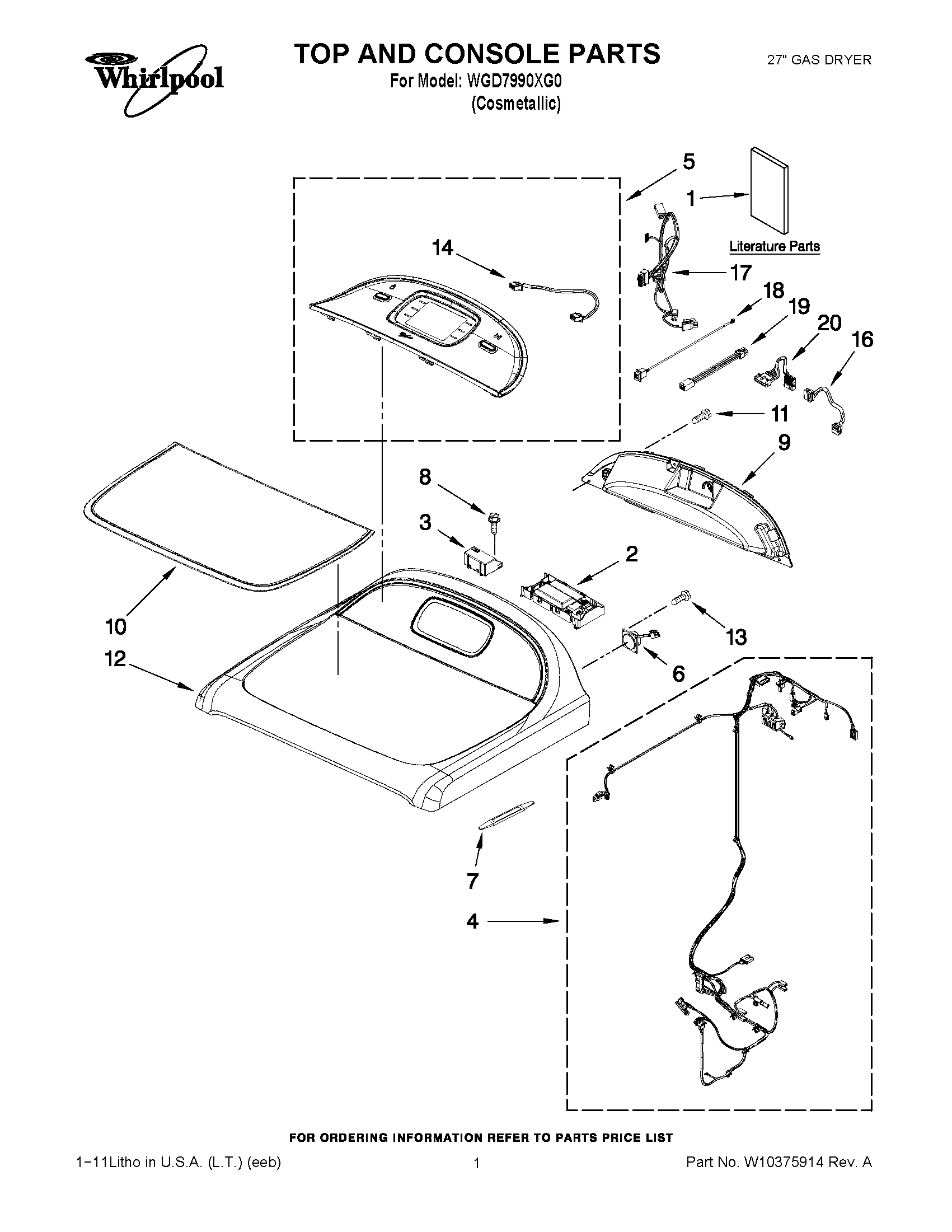

WGD7990XG0 01 – TOP AND CONSOLE PARTS
Written by
in
WGD7990XG0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
GUIDE, QUICK START INSTRUCTIONS
1
INSTALLATION
1
TECH SHEET
1
GUIDE, QUICK START
2
WPW10330449 Whirlpool Electronic Control Board + Core
3
POWER SUPPLY
4
HARNESS, MAIN
5
CONSOLE, FASCIA ASSEMBLY (COMPLETE)
6
SPEAKER ASSEMBLY
7
STICK, TRIM ASSEMBLY
8
W11311945 Whirlpool Refrigerator Screw
9
PANEL, REAR CONSOLE
10
PANEL ASSEMBLY TOP
11
WP488729 Whirlpool Refrigerator Door Screw
12
TOP & CONSOLE ASSEMBLY
13
SCREW, M2-0.89 X 10
14
JUMPER, (TO HMI)
16
JUMPER-CCU TO WIDE ISO
17
JUMPER, USER INTERFACE
18
JUMPER, UI TO USB
19
JUMPER-CCU P14
20
JUMPER-CCU P8
←
