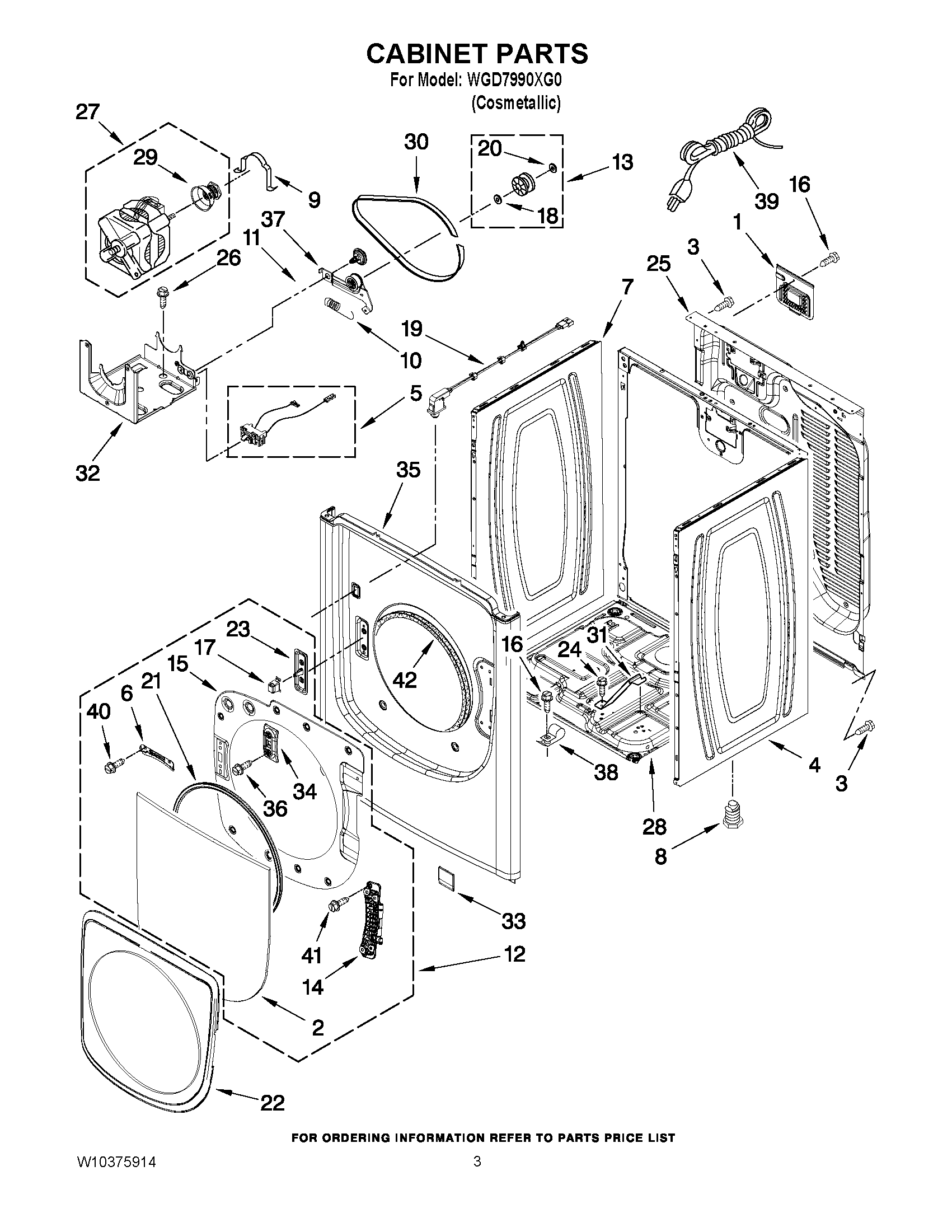

WGD7990XG0 02 – CABINET PARTS
Written by
in
WGD7990XG0 02 – CABINET PARTS
Products
Position
Product
NI
49621 Whirlpool Leveling Feet
1
W10819767 Whirlpool Cover
2
W11310036 Whirlpool Door Glass
3
W10850756 Whirlpool Screw
4
PANEL, SIDE
5
WPW10411937 Whirlpool Switch
6
W10208252 Whirlpool Retainer
7
PANEL, SIDE (L.H.)
9
WP660658 Whirlpool Clamp
10
WPW10446781 Whirlpool Spring
11
WP3389420 Whirlpool Screw
12
DOOR ASSEMBLY COMPLETE
13
279640 Whirlpool Dryer Idler Pulley Kit
14
HINGE, ASSEMBLY
15
DOOR INNER ASSEMBLY
16
WP488729 Whirlpool Refrigerator Door Screw
17
W11240283 Whirlpool Catch Assembly
18
WPW10121334 Whirlpool Washer
19
WPW10338189 Whirlpool Door Switch
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
W11126230 Whirlpool Seal
22
DOOR OUTER ASSEMBLY
23
STRIKE, DOOR
24
WP693995 Whirlpool Screw
25
PANEL, REAR
26
SCREW
27
279787 Whirlpool Dryer Drive Motor
28
W11215531 Whirlpool Base
29
W10837625 Whirlpool Dryer Motor Pulley
30
661570V Whirlpool Dryer Drum Belt
31
W10181903 Whirlpool Bracket
32
W11481730 Whirlpool Bracket
33
PLUG, FRONT PANEL
34
BEZEL, DOOR CATCH
35
PANEL, FRONT
36
SCREW
37
W10837240 Whirlpool Dryer Idler Pulley
38
3978776 Whirlpool Bracket
39
W11628810 Whirlpool Power Cord
40
SCREW
41
SCREW, M5-0.5 X 10
42
WP3387242 Whirlpool Seal
←
