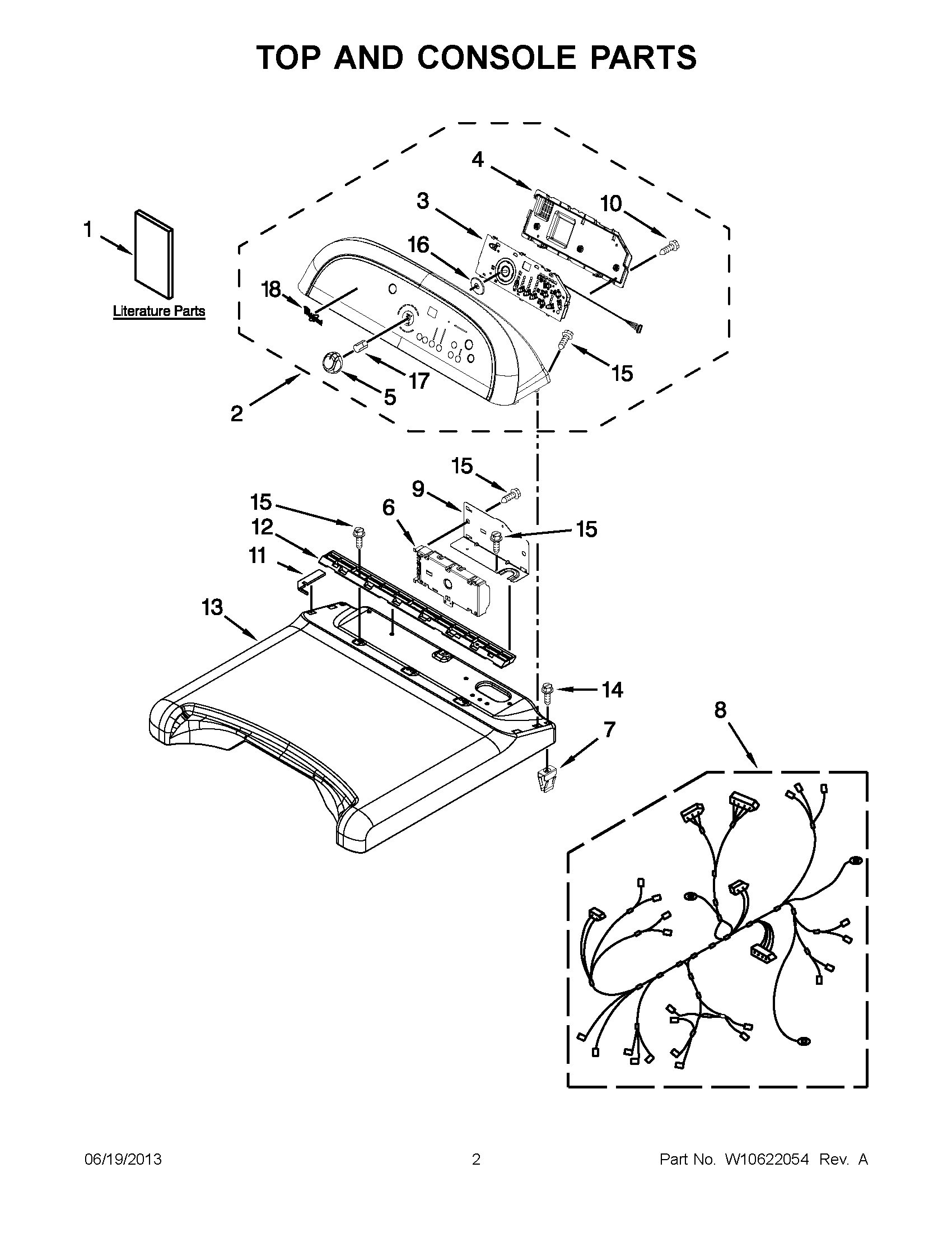

WGD8000BW0 01 – TOP AND CONSOLE PARTS

WGD8000BW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD8000BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1TECH SHEET
1WIRING DIAGRAM
2ASSEMBLY, CONSOLE (WHITE)
3WPW10566876-includeCORE Whirlpool WPW10566876 Refrigerator Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10576632 Whirlpool Dishwasher Knob
6WPW10532427-includeCORE Whirlpool WPW10532427 Washer Electronic Control Board + Core
7W10112673 Whirlpool Clip
8W10393458 Whirlpool Wire Harness
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10185554 Whirlpool Seal Assembly
12Bracket, Console
13TOP
14W10131402 Whirlpool Screw
15WP33001882 Whirlpool Screw
16SEAL, USER INTERFACE
17SPRING, CLIP KNOB
18WPW10393264 Whirlpool Refrigerator Nameplate
