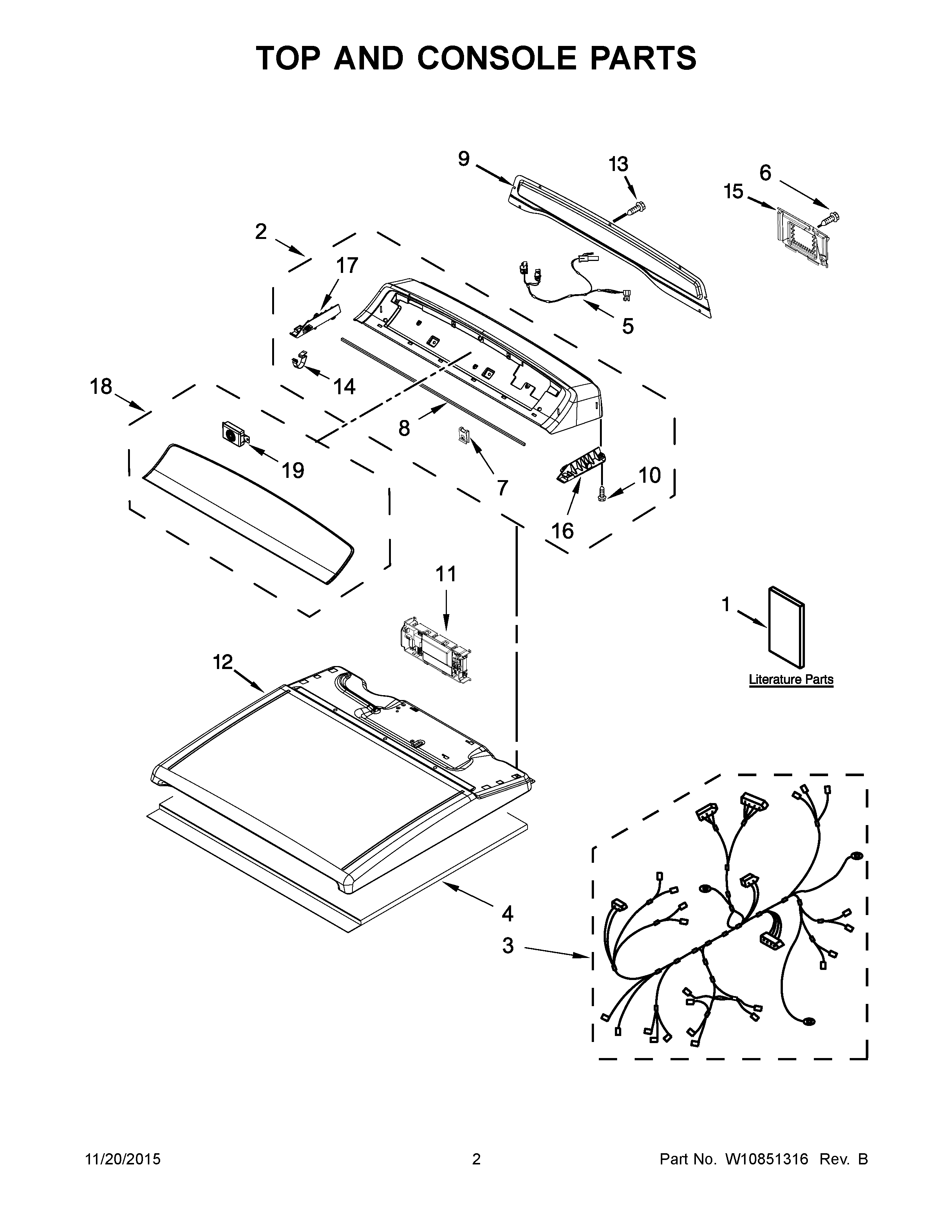

WGD8000DW2 02 – TOP AND CONSOLE PARTS

WGD8000DW2 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8000DW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CQUICKSTART GUIDE
1AGUIDE, USE AND CARE
1BTECH SHEET
2W11050696 Whirlpool Console
3W10777444 Whirlpool Wire Harness
4W10123956 Whirlpool Sound Absorber
5W10593673 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11W10802080-includeCORE Whirlpool W10802080 Refrigerator Electronic Control Board + Core
12W11227373 Whirlpool Top
13WP9740848 Whirlpool Dishwasher Screw
14WP8312709 Whirlpool Endcap Clip
15W10819767 Whirlpool Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11133029 Whirlpool Overlay Assembly
19W11123146 Whirlpool Speaker
