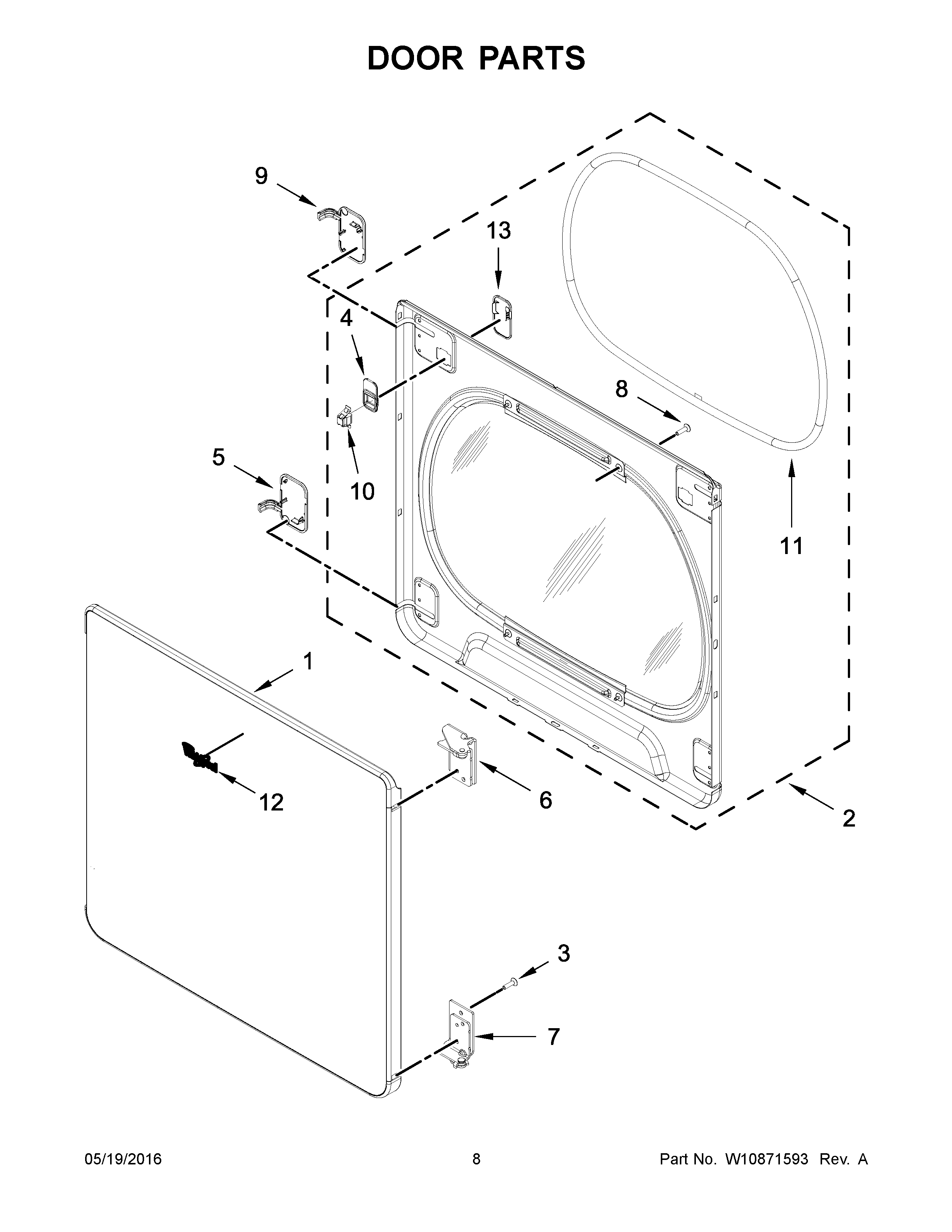

WGD8000DW3 05 – DOOR PARTS

Products

PositionProduct
1W10614976 Whirlpool Door
2W10614997 Whirlpool Door
3SCREW
4W11103932 Whirlpool Bezel Assembly
5W10631396 Whirlpool Cover
6W10850024 Whirlpool Hinge Assembly
7W10850044 Whirlpool Hinge
8WP488627 Whirlpool Refrigerator Screw
9W10631395 Whirlpool Cover Assembly
10W11429587 Whirlpool Catch Assembly
11W10763835 Whirlpool Door Seal Assembly
12WPW10393264 Whirlpool Refrigerator Nameplate
13W10631410 Whirlpool Plate
