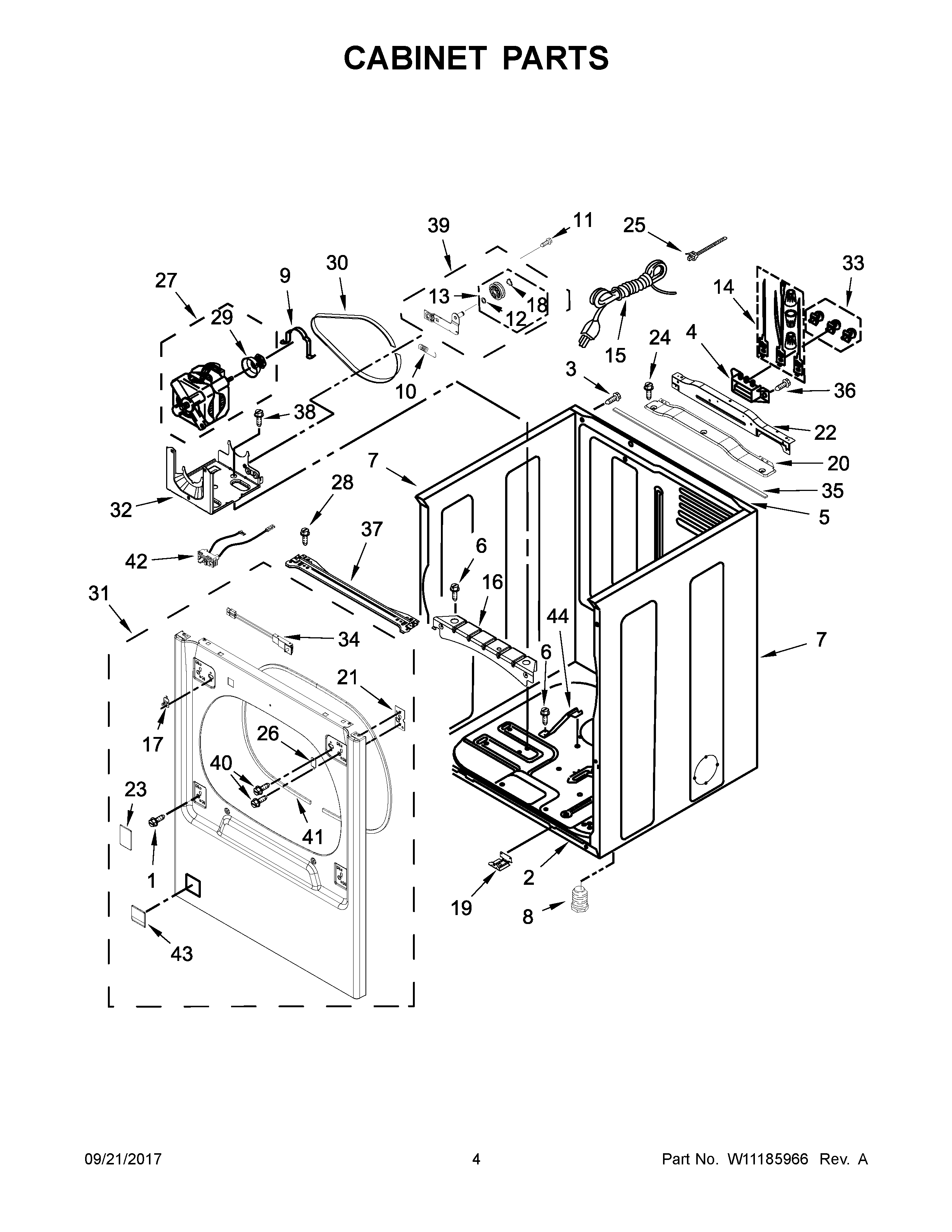

WGD8000DW4 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	W10613683 Whirlpool Base
3	W10636208 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10824895 Whirlpool Rear Panel
6	WP693995 Whirlpool Screw
7	W10645768 Whirlpool Panel Assembly
7A	W10633648 Whirlpool Cabinet Assembly
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10121334 Whirlpool Washer
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W11628810 Whirlpool Power Cord
16	W11282908 Whirlpool Bracket
17	W11163826 Whirlpool Strike
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	SPACER BRACKET, LOWER
20	W10651902 Whirlpool Bracket
21	BRACKET, HINGE
22	W10622391 Whirlpool Bracket
23	W10590953 Whirlpool Plug
24	W10718190 Whirlpool Screw
25	WPW10155270 Whirlpool Wire Tie
26	WPW10111888 Whirlpool Plate Assembly
27	W11105178 Whirlpool Drive Motor
28	SCREW
29	W11568637 Whirlpool Motor Pulley
30	W10849499 Whirlpool Belt
31	W10875869 Whirlpool Panel
32	W10578053 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	W11036551 Whirlpool Door Switch
35	W10316616 Whirlpool Seal
36	SCREW
37	BRACE, CAB AND SEAL ASSEMBLY
38	SCREW
39	W10837240 Whirlpool Dryer Idler Pulley
40	W10891954 Whirlpool Screw
41	WP3387242 Whirlpool Seal
42	W11662087 Whirlpool Dryer Switch
43	W10811916 Whirlpool Plug
44	W10181903 Whirlpool Bracket
