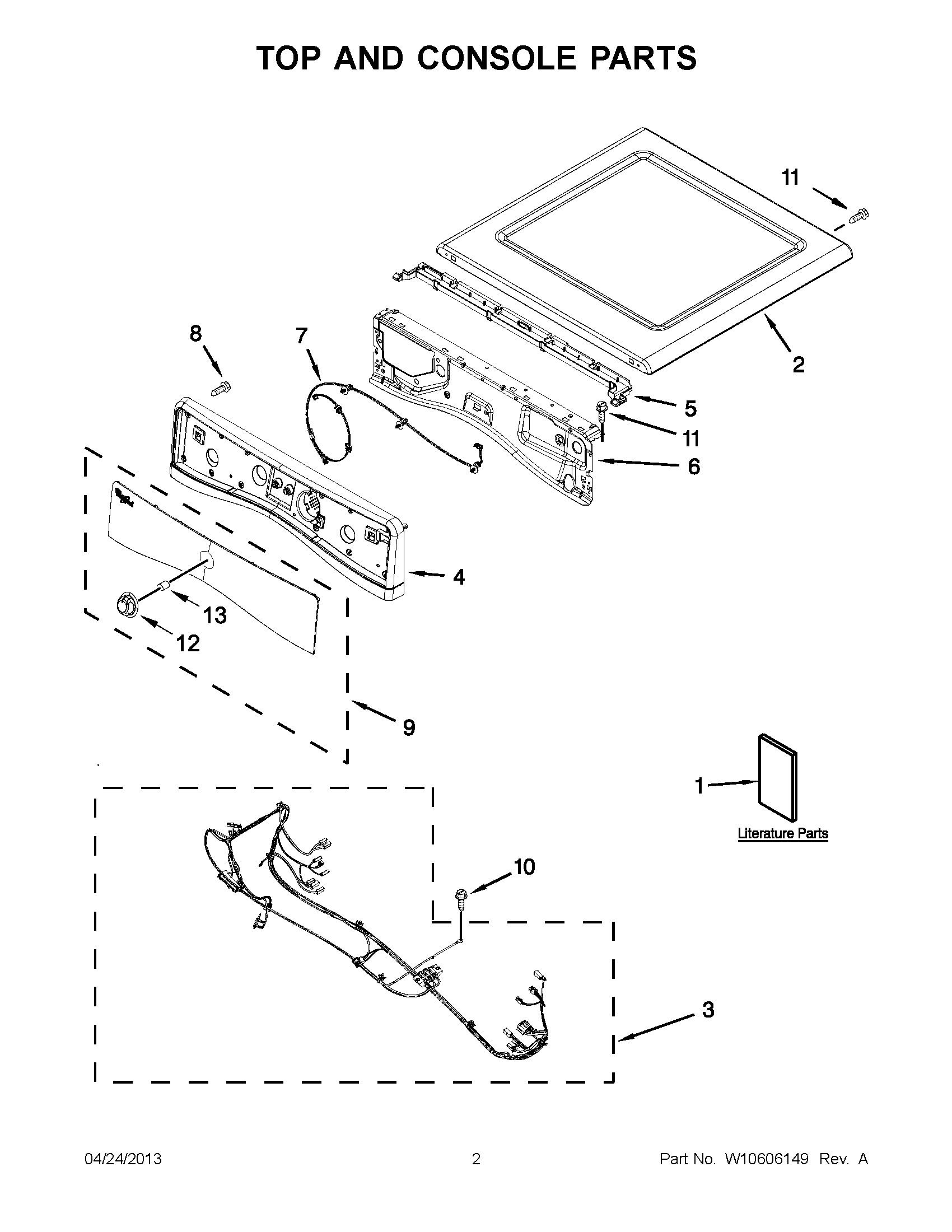

WGD80HEBC0 01 – TOP AND CONSOLE PARTS

WGD80HEBC0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD80HEBC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2WPW10208383 Whirlpool Top Panel
2WPW10460919 Whirlpool Top
3W10526664 Whirlpool Wire Harness
4WPW10391519 Whirlpool Console
4W10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W11025125 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9IML ASSEMBLY (CHROME SHADOW)
9WPW10391545 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12KNOB ASSEMBLY
13WP8536939 Whirlpool Spring Clip
