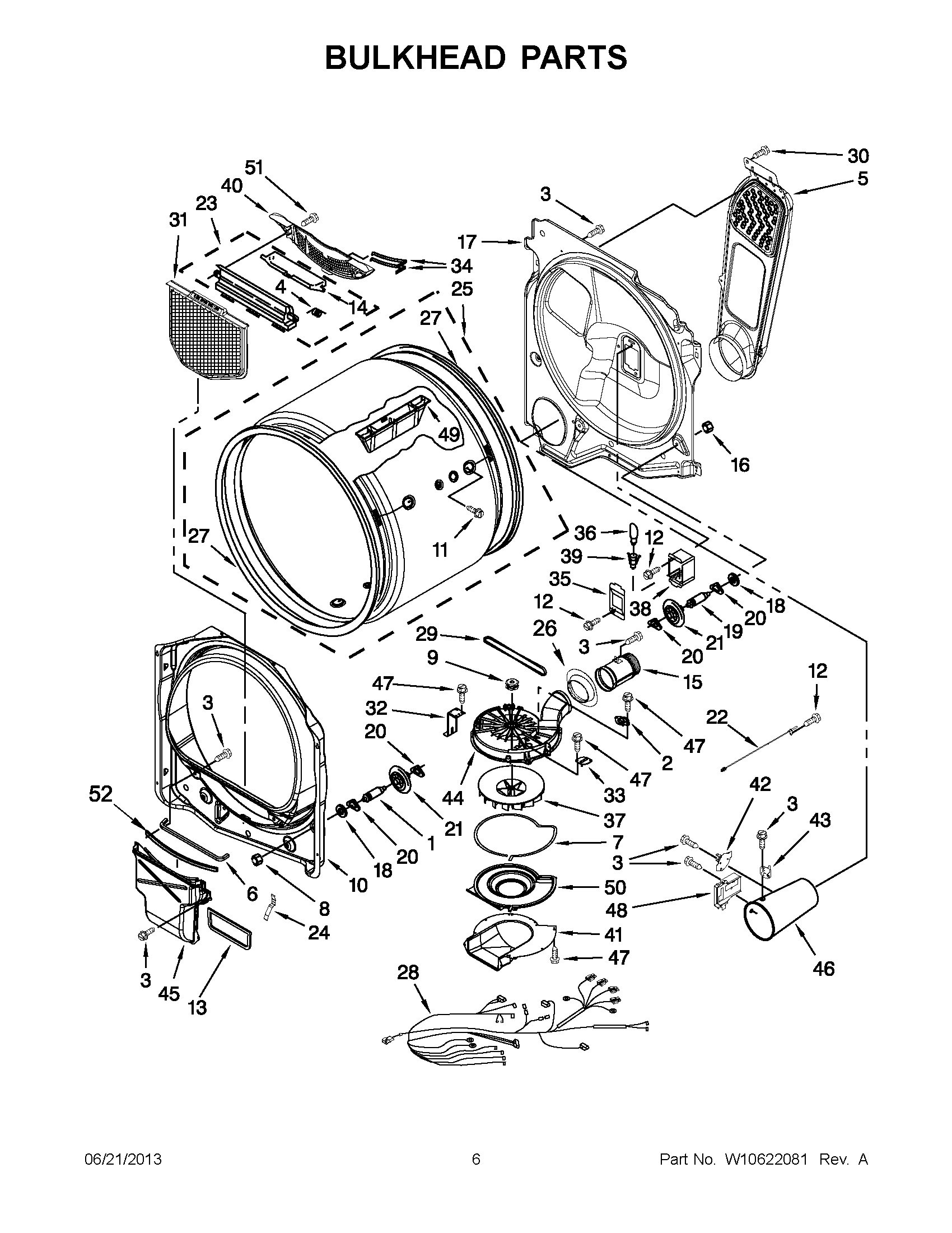

WGD8100BW0 03 – BULKHEAD PARTS

WGD8100BW0 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP8577274 Whirlpool Dryer Thermistor
3WP90767 Whirlpool Screw
4WP3394986 Whirlpool Spring
5AIR DUCT ASSEMBLY
6WP697813 Whirlpool Seal
7WP8573068 Whirlpool Seal Gasket
8WPW10080210 Whirlpool Nut
9WP8544739 Whirlpool Motor Pulley
10WP8557244 Whirlpool Bulkhead Assembly
11W10853898 Whirlpool Screw
12WP488729 Whirlpool Refrigerator Door Screw
13SEAL, LINT DUCT
14W11222846 Whirlpool Door
15PIPE, EXHAUST
16WPW10080190 Whirlpool Nut
17WP8557234 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22WPW10419068 Whirlpool Thermistor
23W11129408 Whirlpool Out Housing
248573070 Whirlpool Clip
25W10549614 Whirlpool Drum
26W10475158 Whirlpool Shield
27SEAL-DOOR
28W10393458 Whirlpool Wire Harness
29WP8544742 Whirlpool Dryer Blower Belt
30WP693995 Whirlpool Screw
31W10120998 Whirlpool Dryer Lint Screen Filter
32BRACKET, BLOWER HOUSING (2)
33WP3390719 Whirlpool Dryer Thermal Fuse
34WP3387223 Whirlpool Electrode Assembly
35W11226088 Whirlpool Lens Assembly
36WP22002263 Whirlpool Dryer 10W Light Bulb
37WP8544737 Whirlpool Wheel Assembly
383977373 Whirlpool Bracket
39W11222979 Whirlpool Socket
40W11117302 Whirlpool Grille Out
41DUCT, INLET BLOWER
42WP8573713 Whirlpool Thermal Fuse
43THRMST-FIX
44HOUSING, BLOWER
45LINT DUCT ASSEMBLY
46WP8573824 Whirlpool Funnel
473350424 Whirlpool Screw
48WP338906 Whirlpool Dryer Gas Sensor
498563860 Whirlpool Drum Baffle
50WP8544719 Whirlpool Cover Assembly
51WP3387230 Whirlpool Screw
