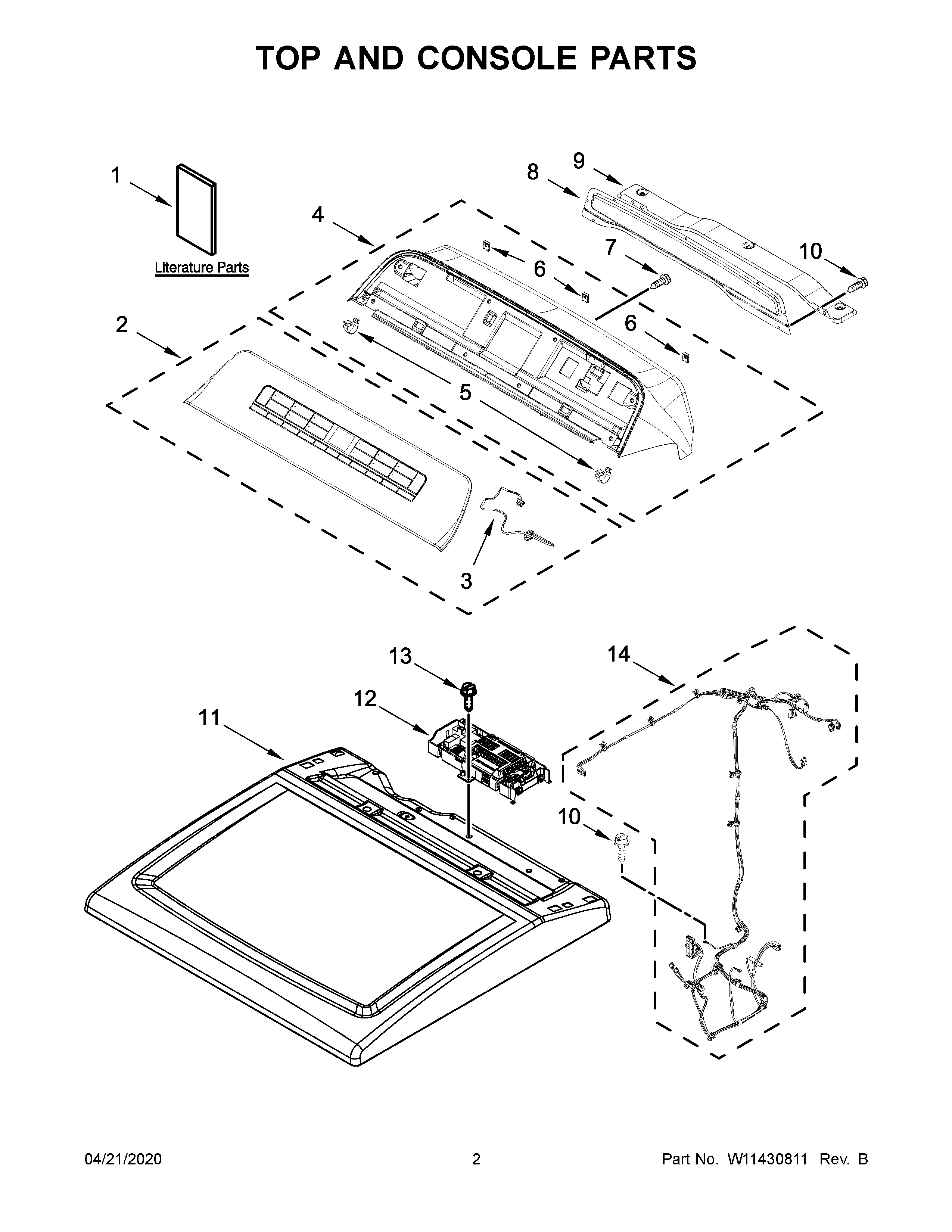

WGD8120HC0 02 – TOP AND CONSOLE PARTS

WGD8120HC0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8120HC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1ATECH SHEET
2W11419060 Whirlpool Control Panel
3W11164312 Whirlpool Wire Harness
4W11401367 Whirlpool Console
4AW11401368 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7WP9740848 Whirlpool Dishwasher Screw
8W10622402 Whirlpool Rear Panel
9W10651902 Whirlpool Bracket
10W11568617 Whirlpool Screw
11AW11051477 Whirlpool Top
11W11227373 Whirlpool Top
12W11526010 Whirlpool Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14HARNESS, MAIN
