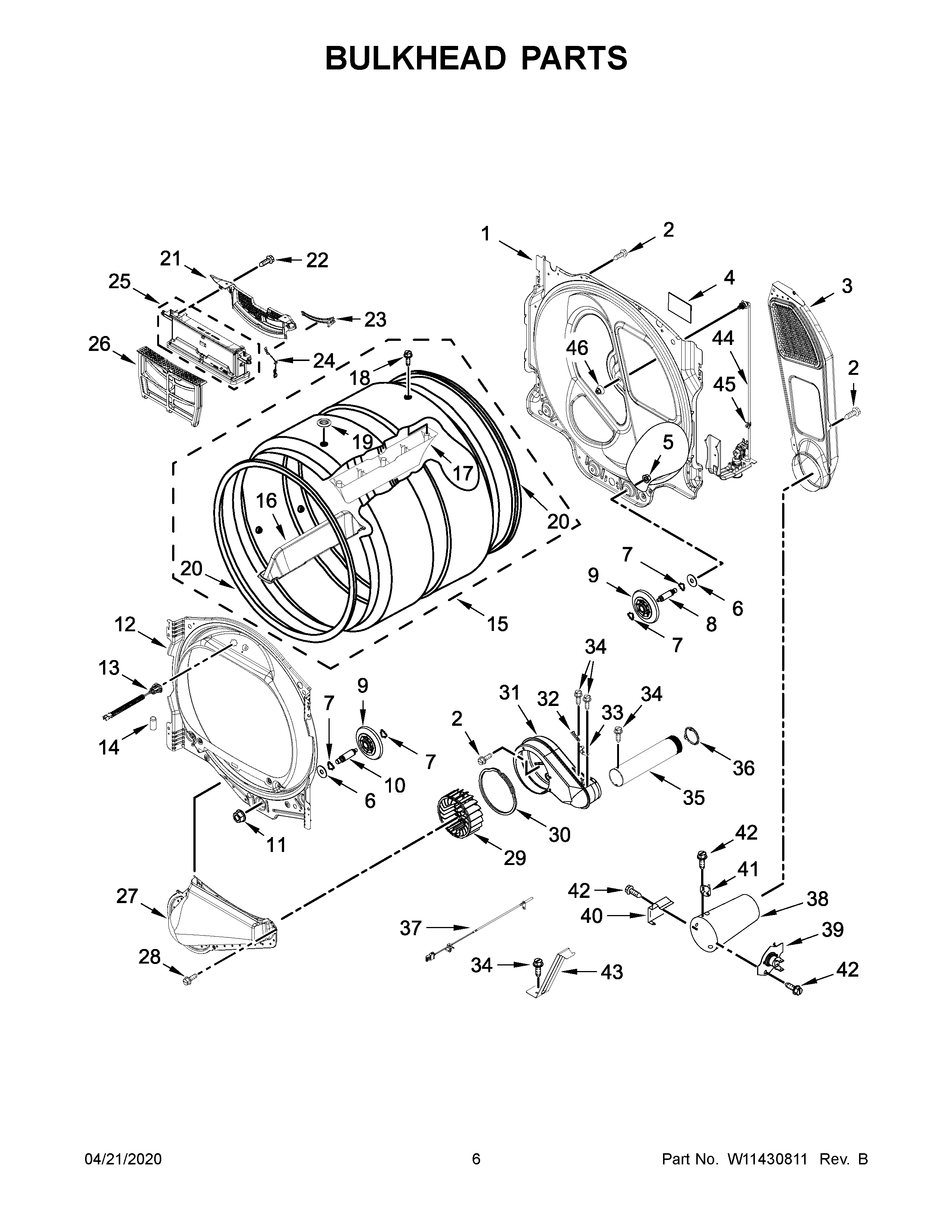

WGD8120HC0 04 – BULKHEAD PARTS

WGD8120HC0 04 – BULKHEAD PARTS

Products

PositionProduct
NIW10443301A Whirlpool Dryer Hose Kit
NIW10782875 Whirlpool Fill Hose
NIW10044609A Whirlpool Steam Dryer Hose Installation Kit
NIW10623830 Whirlpool Dryer Fill Hose
1W11135006 Whirlpool Bulkhead
2WP488729 Whirlpool Refrigerator Door Screw
3W11129538 Whirlpool Air Duct
4W11409002 Whirlpool Pad
5WPW10080190 Whirlpool Nut
6W11236646 Whirlpool Washer Assembly
7WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
8SHAFT
9WPW10314173 Whirlpool Dryer Drum Support Wheel
10SHAFT
11WPW10080210 Whirlpool Nut
12W10861007 Whirlpool Bulkhead Assembly
13WPW10629046 Whirlpool Light Bulb
14W10491983 Whirlpool Tine Tip
15W10646770 Whirlpool Drum Assembly
16W10767074 Whirlpool Drum Baffle
17W10767090 Whirlpool Drum Baffle
18W10853898 Whirlpool Screw
19W10665050 Whirlpool Plug
20W11189144 Whirlpool Felt Seal
21W11242876 Whirlpool Out Housing
22WP3387230 Whirlpool Screw
23W11165163 Whirlpool Electrode Assembly
24W11161899 Whirlpool Wire
25W10608813 Whirlpool Outside Grille
26W10859086 Whirlpool Dryer Lint Screen
27W10868982 Whirlpool Lint Duct
28WP489463 Whirlpool Refrigerator Screw
29WP697772 Whirlpool Dryer Blower Wheel
30W10868675 Whirlpool Seal
31W11246350 Whirlpool Housing
32FUSE-THRML
33WP8577274 Whirlpool Dryer Thermistor
34WP693995 Whirlpool Screw
35W10608817 Whirlpool Exhaust Pipe
36WPW10344699 Whirlpool Collar
37W11744013 Whirlpool Thermistor
38WP8573824 Whirlpool Funnel
39WP8573713 Whirlpool Thermal Fuse
40WP338906 Whirlpool Dryer Gas Sensor
41THRMST-FIX
42WP90767 Whirlpool Screw
43W10181903 Whirlpool Bracket
44W11314437 Whirlpool Valve Assembly
45WP3391018 Whirlpool Wire Tie
46W11230609 Whirlpool Nozzle
