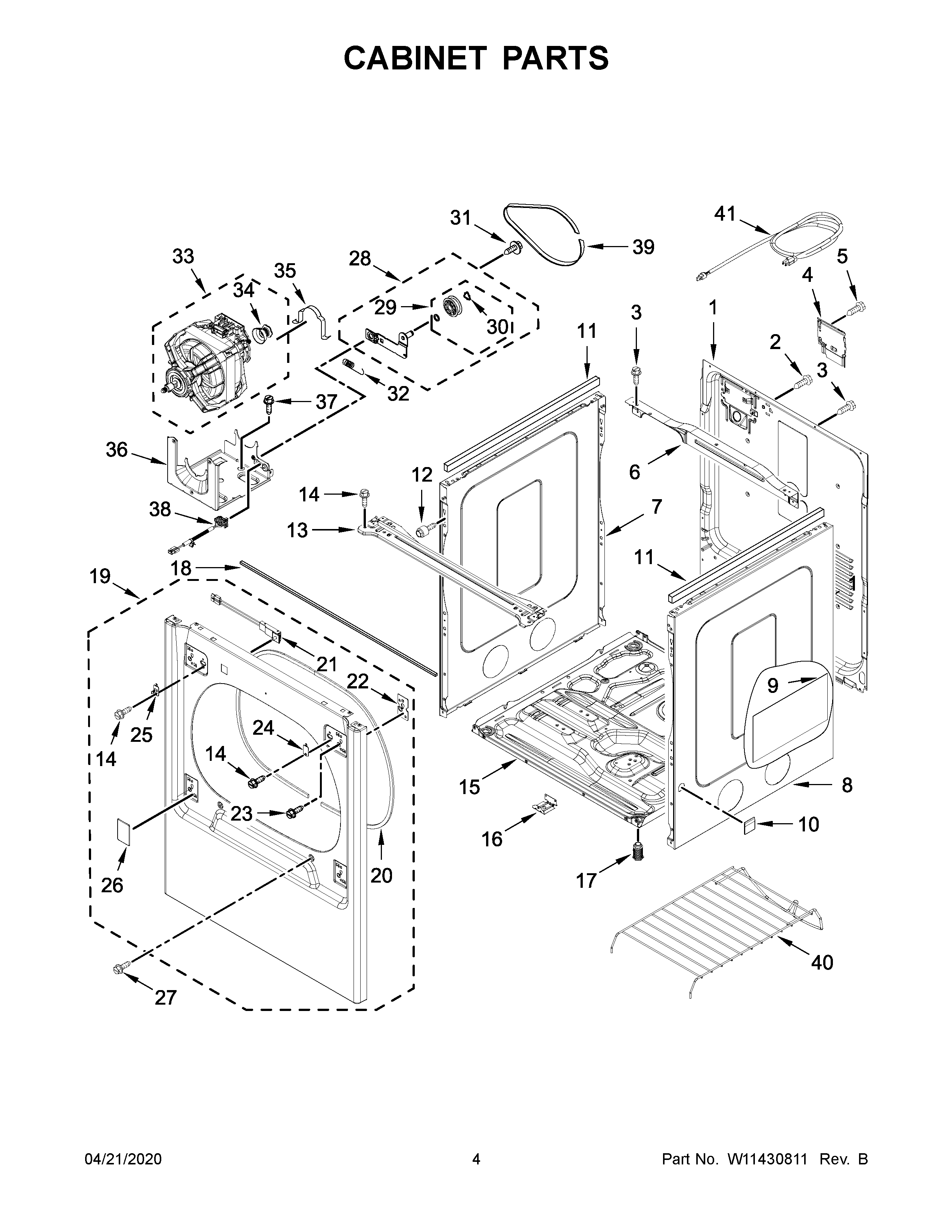

WGD8120HW0 03 – CABINET PARTS

Products

Position	Product
1	W10824896 Whirlpool Rear Panel
2	W10850756 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	W10819767 Whirlpool Cover
5	WPW10661886 Whirlpool Refrigerator Door Handle Screw
6	W10622391 Whirlpool Bracket
7A	W10681830 Whirlpool Panel
7	W10633648 Whirlpool Cabinet Assembly
8	W10645768 Whirlpool Panel Assembly
8A	W10681831 Whirlpool Panel Assembly
9	W11690850 Whirlpool Pad
10	W10811916 Whirlpool Plug
10A	W11406198 Whirlpool Plug
11	W10316616 Whirlpool Seal
12	W10636208 Whirlpool Screw
13	BRACE, CAB AND SEAL ASSEMBLY
14	W10891954 Whirlpool Screw
15	W10613683 Whirlpool Base
16	SPACER BRACKET, LOWER
17	49621 Whirlpool Leveling Feet
18	W11406199 Whirlpool Seal
19	W10875869 Whirlpool Panel
19A	W10875891 Whirlpool Panel
20	WP3387242 Whirlpool Seal
21	W11036551 Whirlpool Door Switch
22	BRACKET, HINGE
23	SCREW
24	WPW10111888 Whirlpool Plate Assembly
25	W11163826 Whirlpool Strike
26	W10590953 Whirlpool Plug
26A	W10596965 Whirlpool Plug
27	WP308685 Whirlpool Microwave Screw
28	W10837240 Whirlpool Dryer Idler Pulley
29	279640 Whirlpool Dryer Idler Pulley Kit
30	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31	WP3389420 Whirlpool Screw
32	WPW10446781 Whirlpool Spring
33	W11105178 Whirlpool Drive Motor
34	W11568637 Whirlpool Motor Pulley
35	CLAMP
36	W10578053 Whirlpool Base Assembly
37	SCREW
38	W11662087 Whirlpool Dryer Switch
39	W10849499 Whirlpool Belt
40	W10864105 Whirlpool Dryer Drying Rack
41	W11628810 Whirlpool Power Cord
