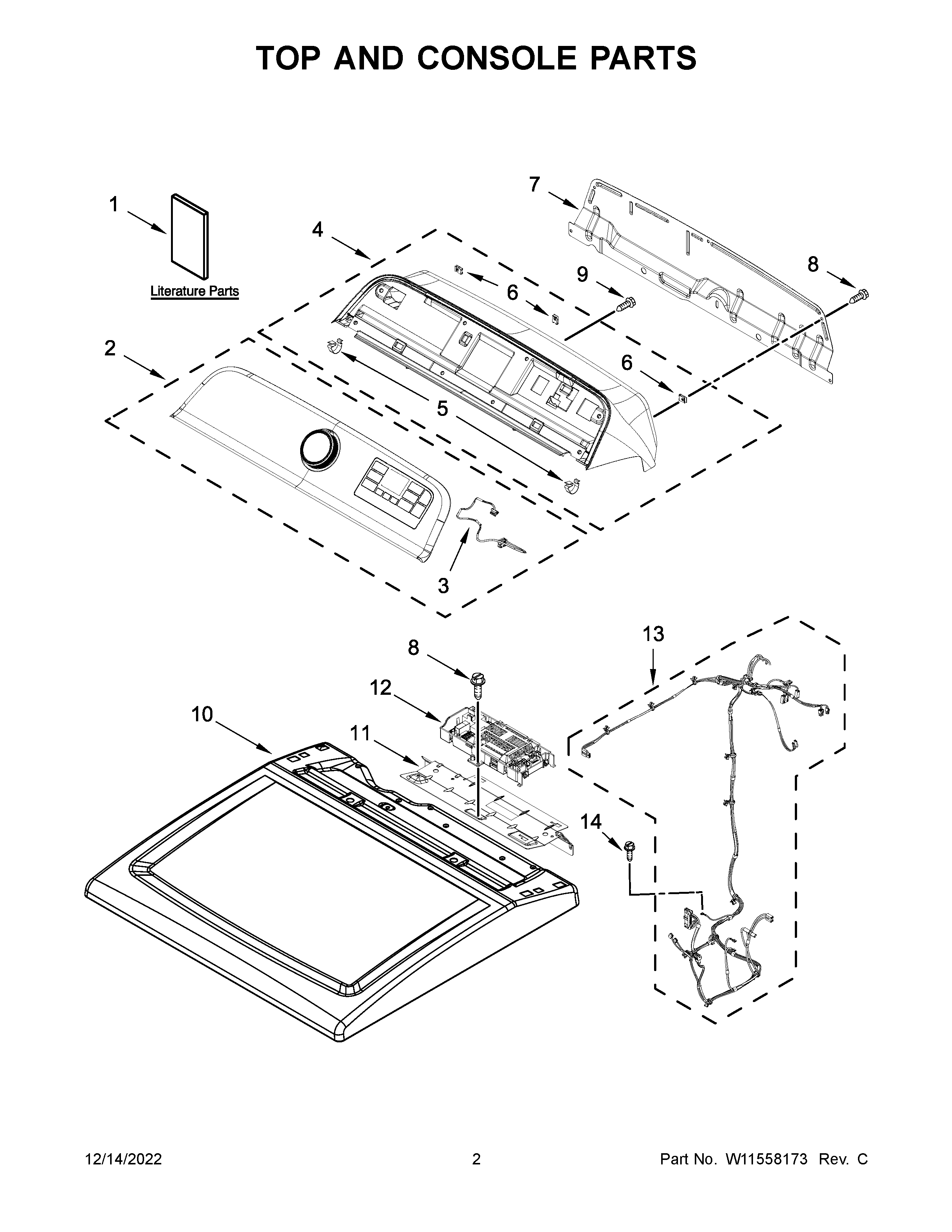

WGD8127LC1 02 – TOP AND CONSOLE PARTS

WGD8127LC1 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8127LC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BQUICK START GUIDE
1ATECH SHEET
2W11626080 Whirlpool UI Panel + Core
3W11164312 Whirlpool Wire Harness
4AW11401366 Whirlpool Console
4W11401363 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7W11433112 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP9740848 Whirlpool Dishwasher Screw
10AW11641122 Whirlpool Top
10TOP (WHITE)
11W11431865 Whirlpool Bracket
12W11618918-includeCORE Whirlpool W11618918 Refrigerator Electronic Control Board + Core
13W11459149 Whirlpool Wire Harness
14W11693756 Whirlpool Screw Assembly
