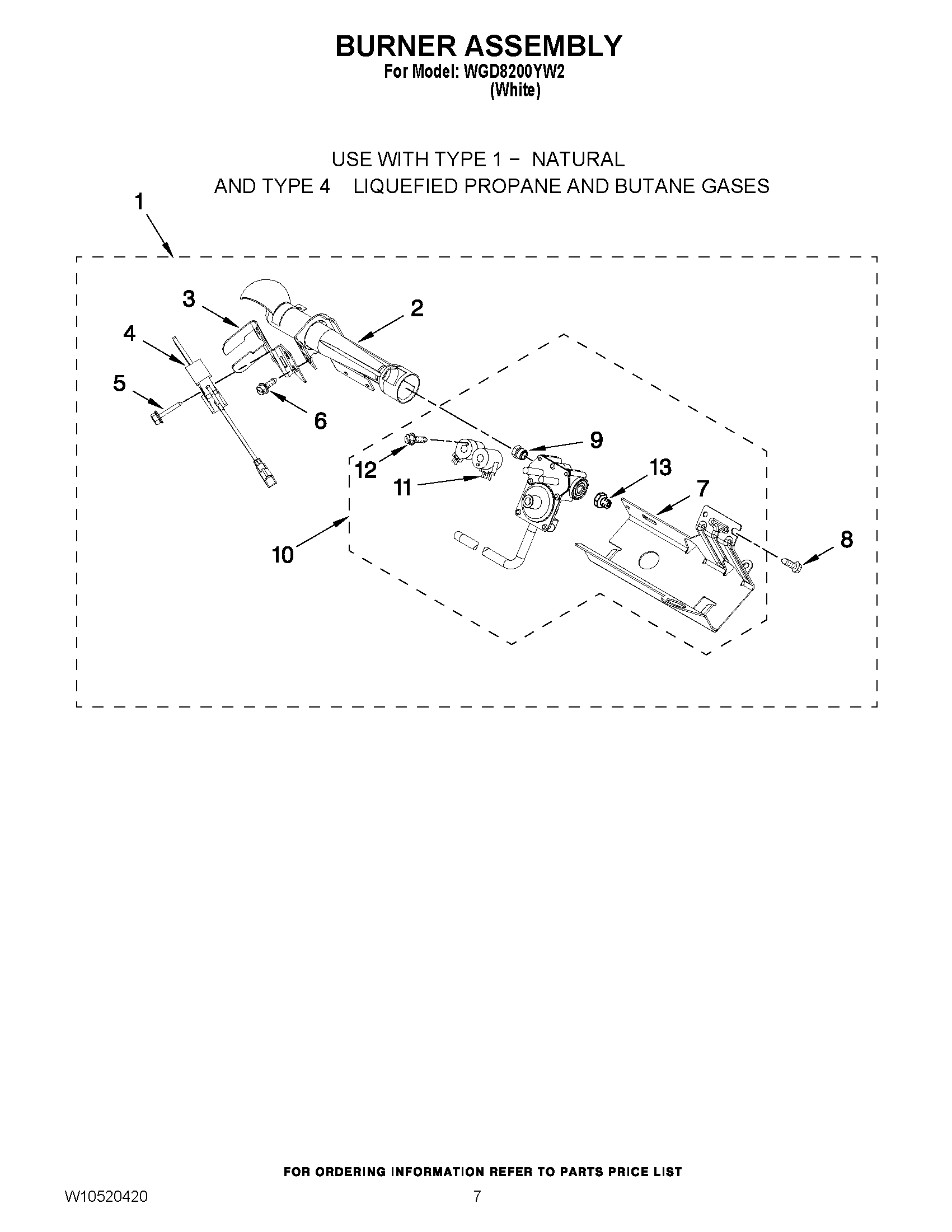

WGD8200YW2 04 – BURNER ASSEMBLY

Products

Position	Product
1	WP8557891 Whirlpool Gas Burner
2	WPW10536683 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	W10183823 Whirlpool Bracket
8	WP693995 Whirlpool Screw
9	WP229742 Whirlpool Gas Orifice
9	W11581317 Whirlpool LP Gas Connector
9	WP15418 Whirlpool Gas Orifice
10	WP8573071 Whirlpool Gas Valve
11	WPW10368268 Whirlpool Coil Valve
12	326049536 Whirlpool Screw
13	W10295523 Whirlpool Plug
