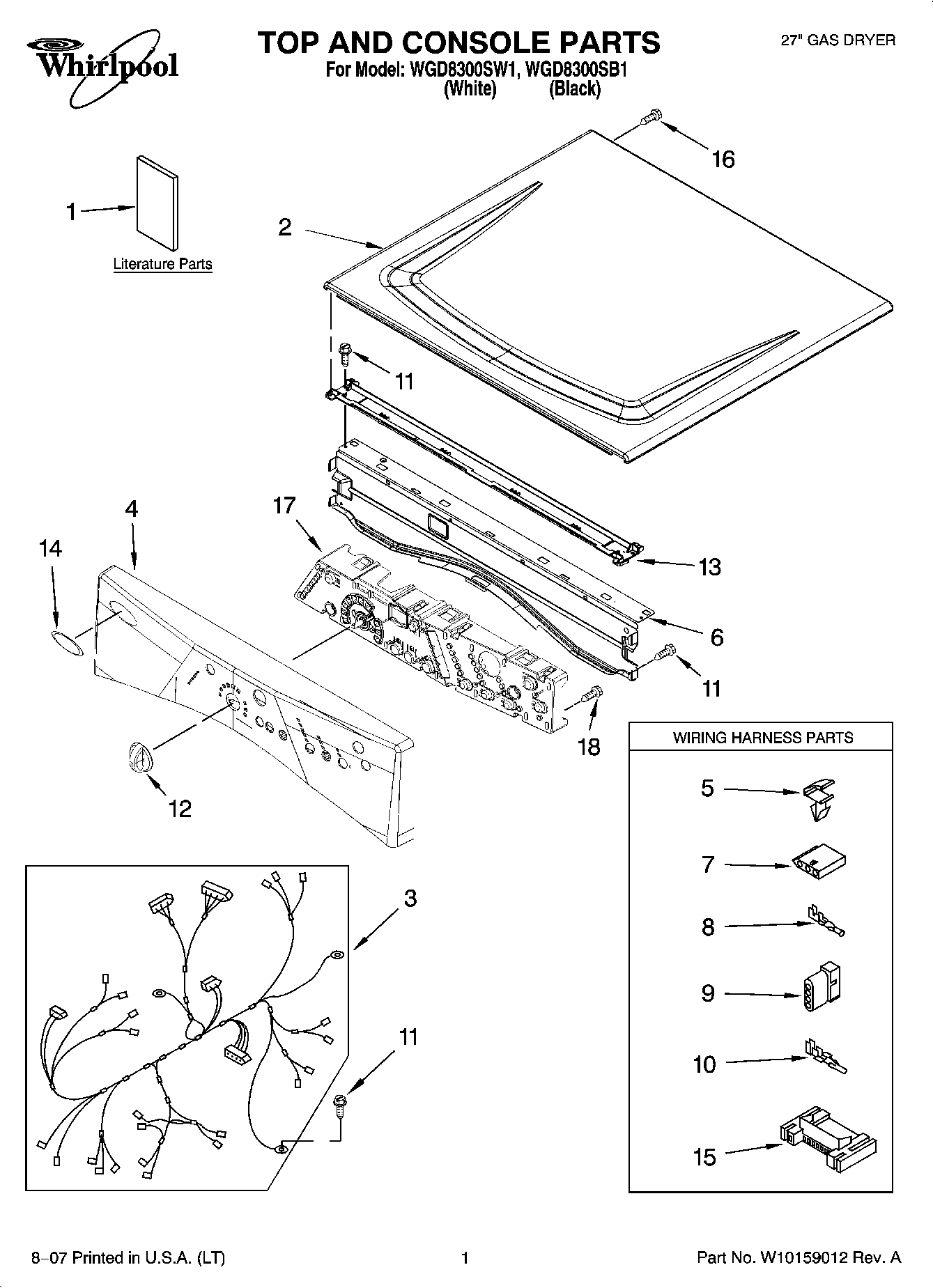

WGD8300SB1 01 – TOP AND CONSOLE PARTS

WGD8300SB1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD8300SB1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Guide, Quick Start
2Top (Black)
2WPW10336080 Whirlpool Top Assembly
3Harness, Main
4Panel, Console (Black)
4Panel, Console (White)
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12ASSEMBLY, KNOB
12W10129067 Whirlpool Knob
13WPW10266747 Whirlpool Channel
14Medallion
153395683 Whirlpool Connector
17Assembly, User Interface
18Screw, 2-28 x 1/2
