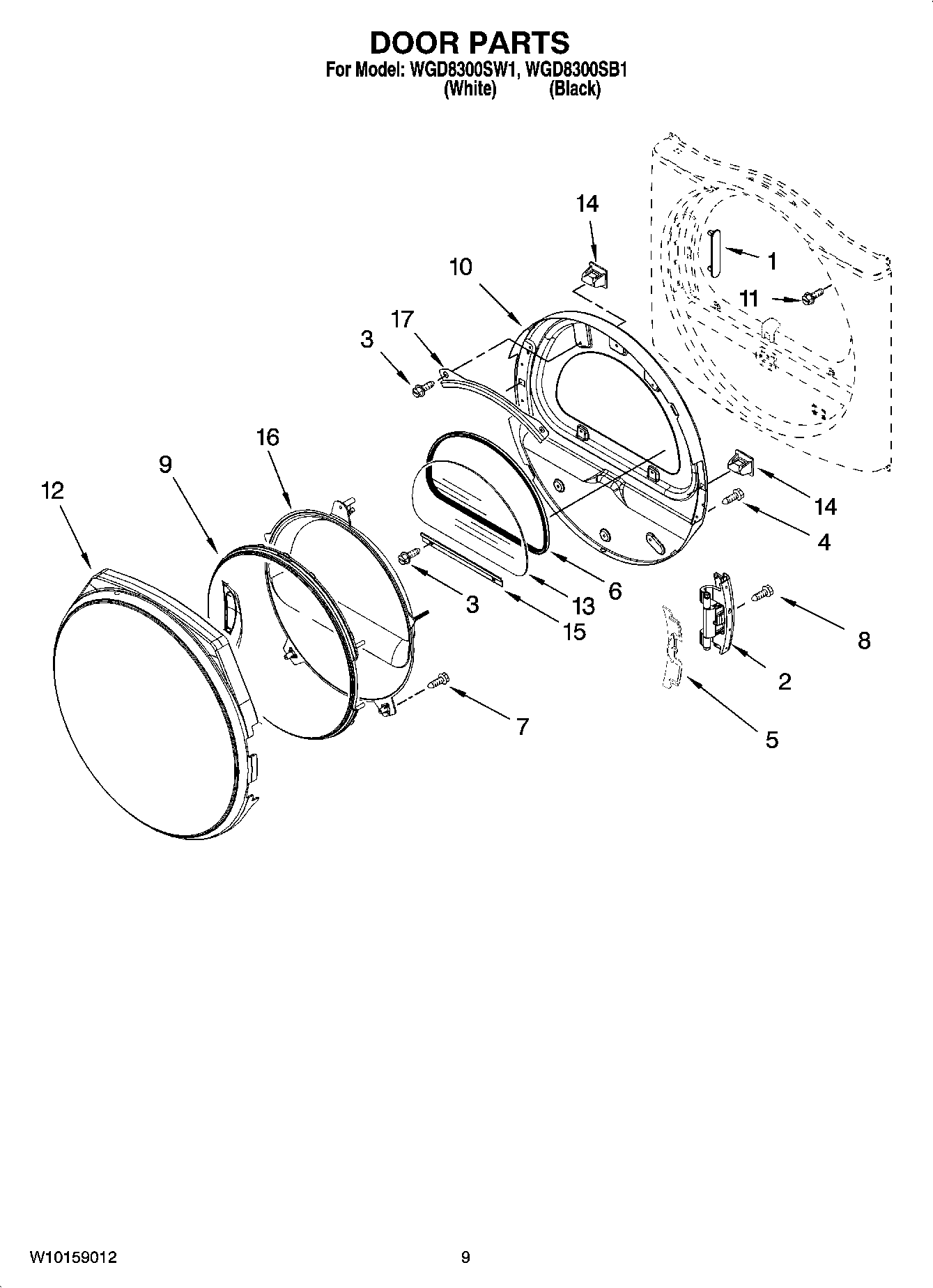

WGD8300SB1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WGD8300SB1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WGD8300SB1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
PAINT, BULK (1 qt.) (Black (Uncut))
PAINT, TOUCH-UP (1/2oz.) (Black)
8212450A Whirlpool Dryer Rack Assembly
ACCESSORY PARTS
ACCESSORY PARTS, KIT, HOLD DOWN
4392067 Whirlpool Dryer Repair Kit
W11224254 Whirlpool Test Kit
WPL 786020
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
18565119 Whirlpool Plug
2Door, Hinge Assembly
3WP3373329 Whirlpool Dishwasher Screw
4W11116979 Whirlpool Screw
5Cover, Hinge (Black)
5Cover, Hinge (White)
6W11706993 Whirlpool Seal
7WP8534022 Whirlpool Screw
8Screw, 10-24 x 3/64
9Door Assembly (Outer)
10WPW10164062 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
12Door Ring (Outer) (Black)
12Door Ring (Outer) (White)
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W10822054 Whirlpool Retainer
16Door Intermediate (White)
16Door, Intermediate (Gray)
178519356 Whirlpool Retainer
