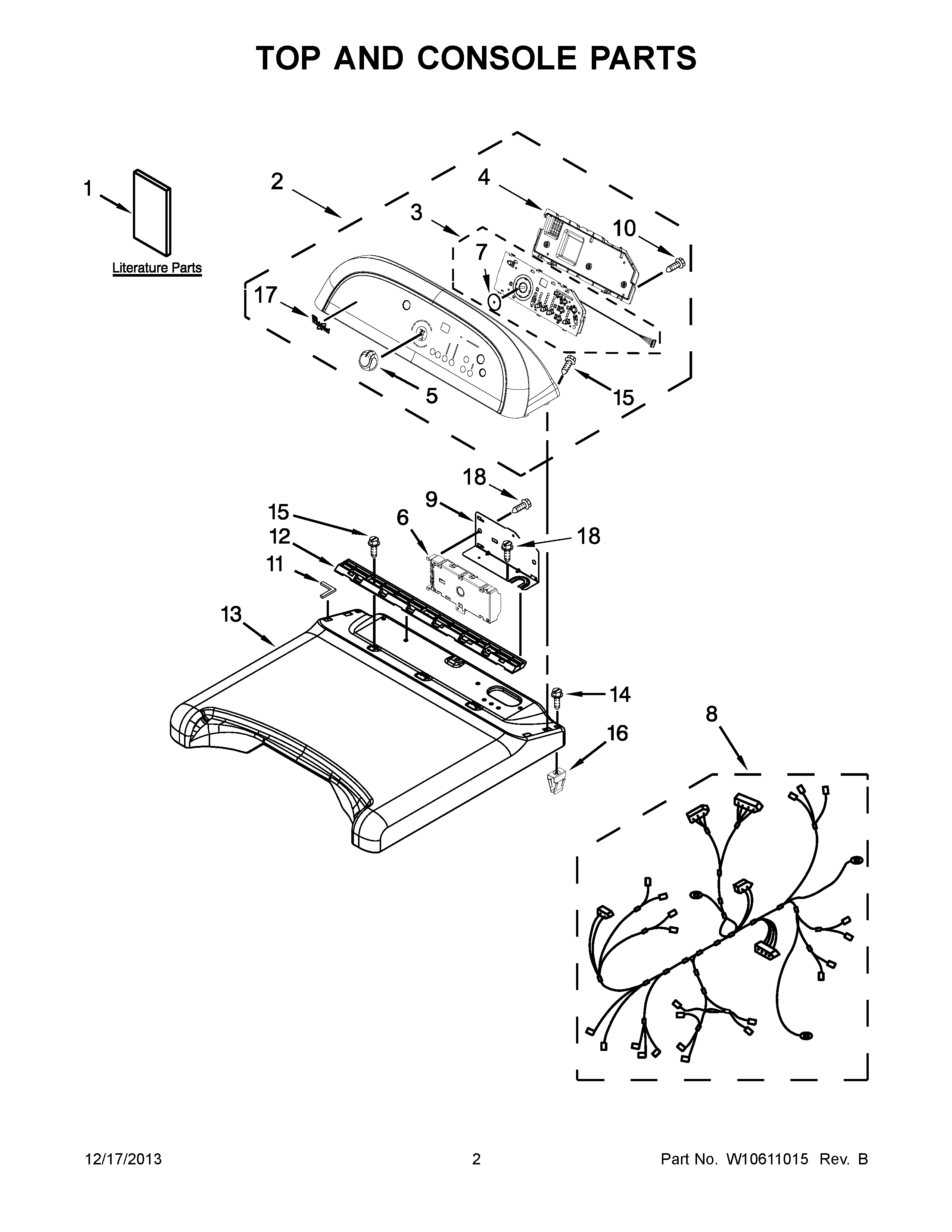

WGD8500BR0 02 – TOP AND CONSOLE PARTS

WGD8500BR0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8500BR0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE AND CARE
1INSTRUCTIONS, INSTALLATION
1TECH SHEET
2CONSOLE (CHERRY METALLIC)
2ASSEMBLY, CONSOLE (CHROME SHADOW)
2ASSEMBLY, CONSOLE (WHITE)
3ASSEMBLY, USER INTERFACE
48564265 Whirlpool Cover
5WPW10576632 Whirlpool Dishwasher Knob
5WPW10567081 Whirlpool Knob Assembly
6WPW10532427-includeCORE Whirlpool WPW10532427 Washer Electronic Control Board + Core
7SEAL, USER INTERFACE
8HARNESS, WIRING
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10185554 Whirlpool Seal Assembly
12Bracket, Console
13TOP (CHERRY METALLIC)
13TOP (CHROME SHADOW)
13TOP (WHITE)
14W10131402 Whirlpool Screw
15WP33001882 Whirlpool Screw
16W10112673 Whirlpool Clip
17WPW10393264 Whirlpool Refrigerator Nameplate
18WP90767 Whirlpool Screw
