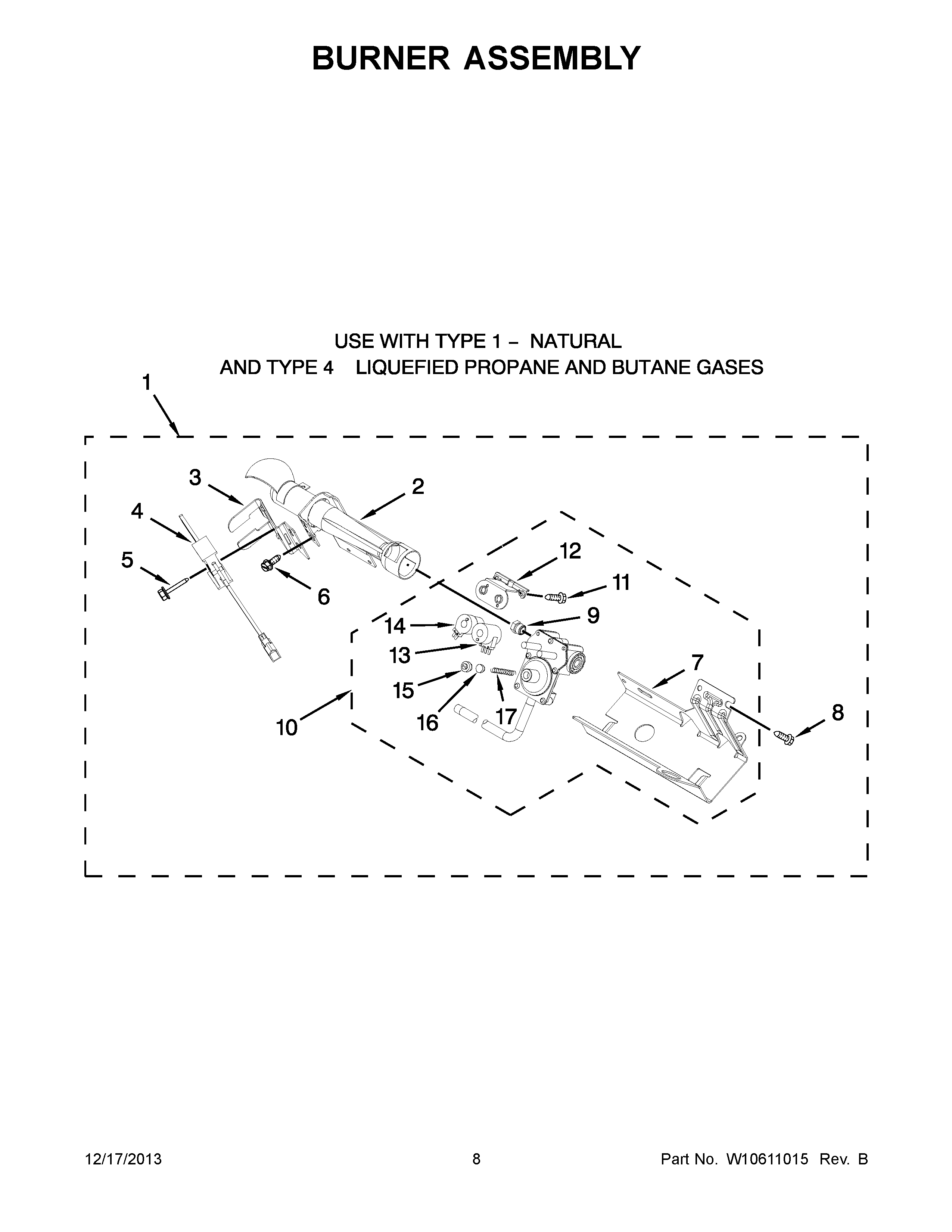

WGD8500BW0 05 – BURNER ASSEMBLY

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
NI	CABINET (NOT A SERVICEABLE PART)
1	WP8557891 Whirlpool Gas Burner
2	WPW10536683 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	W10183823 Whirlpool Bracket
8	WP693995 Whirlpool Screw
9	WP229742 Whirlpool Gas Orifice
9	ORIFICE, BURNER (TYPE 4 (BUTANE))
9	WP15418 Whirlpool Gas Orifice
10	WP8573071 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	Bracket, Coil
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
