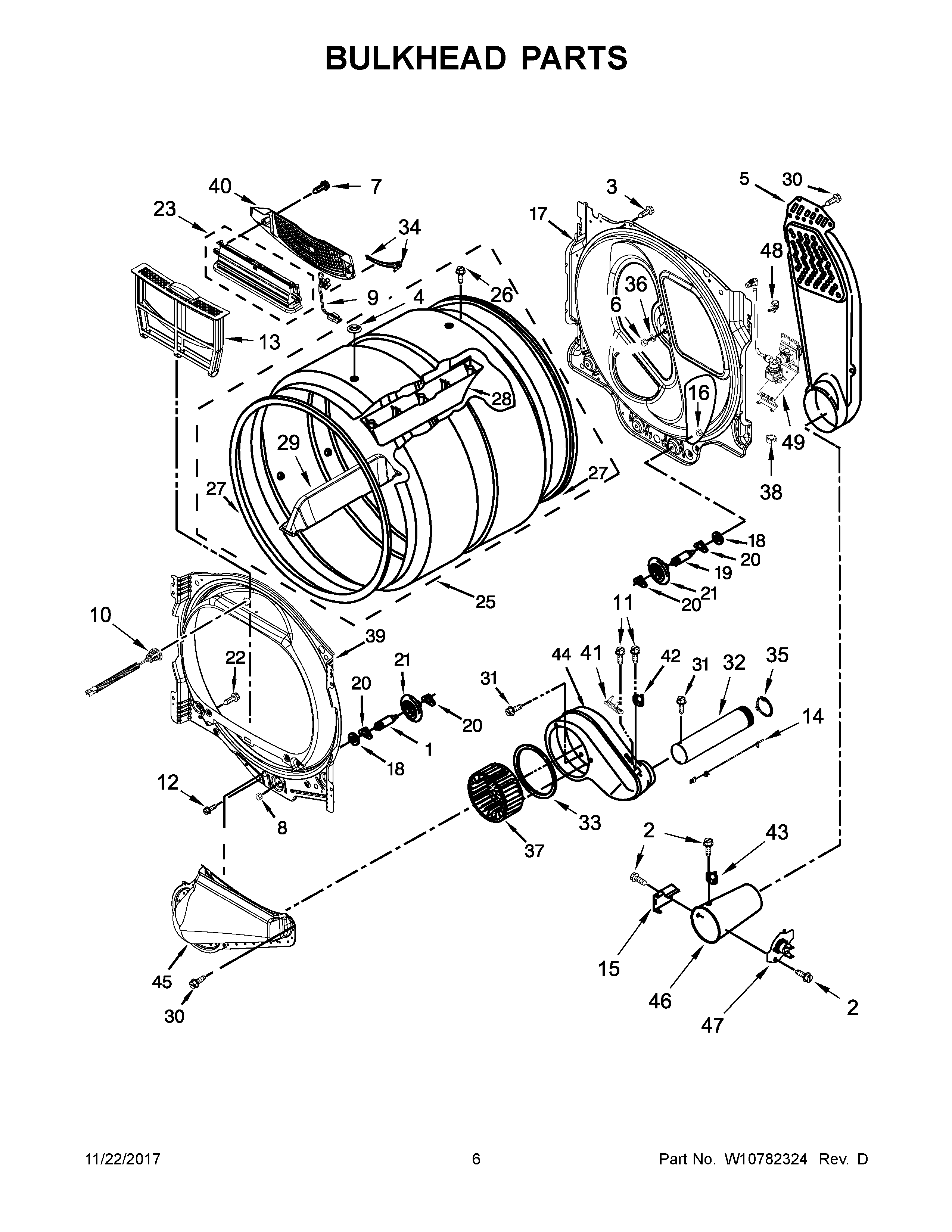

WGD8500DC1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP489463 Whirlpool Refrigerator Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	W10665050 Whirlpool Plug
5	W11129538 Whirlpool Air Duct
6	W10044628 Whirlpool Nut
7	WP3387230 Whirlpool Screw
8	WPW10080210 Whirlpool Nut
9	W11161899 Whirlpool Wire
10	WPW10629046 Whirlpool Light Bulb
12	WP308685 Whirlpool Microwave Screw
13	W10859086 Whirlpool Dryer Lint Screen
14	W11744013 Whirlpool Thermistor
15	WP338906 Whirlpool Dryer Gas Sensor
16	WPW10080190 Whirlpool Nut
17	W11135006 Whirlpool Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10348409 Whirlpool Screw
24	W11242876 Whirlpool Out Housing
25	W10646770 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11189144 Whirlpool Felt Seal
28	W10767090 Whirlpool Drum Baffle
29	W10767074 Whirlpool Drum Baffle
30	WP693995 Whirlpool Screw
31	WP90767 Whirlpool Screw
32	W10608817 Whirlpool Exhaust Pipe
33	WP697770 Whirlpool Blower Cover Plate Seal
34	W11165163 Whirlpool Electrode Assembly
35	WPW10344699 Whirlpool Collar
36	W10044579 Whirlpool Washer
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10044599 Whirlpool Clip
39	W10861007 Whirlpool Bulkhead Assembly
40	W10608813 Whirlpool Outside Grille
41	FUSE-THRML
42	WP8577274 Whirlpool Dryer Thermistor
43	THRMST-FIX
44	W11246350 Whirlpool Housing
45	W10868982 Whirlpool Lint Duct
46	WP8573824 Whirlpool Funnel
47	WP8573713 Whirlpool Thermal Fuse
48	WP3391018 Whirlpool Wire Tie
49	W11314437 Whirlpool Valve Assembly
