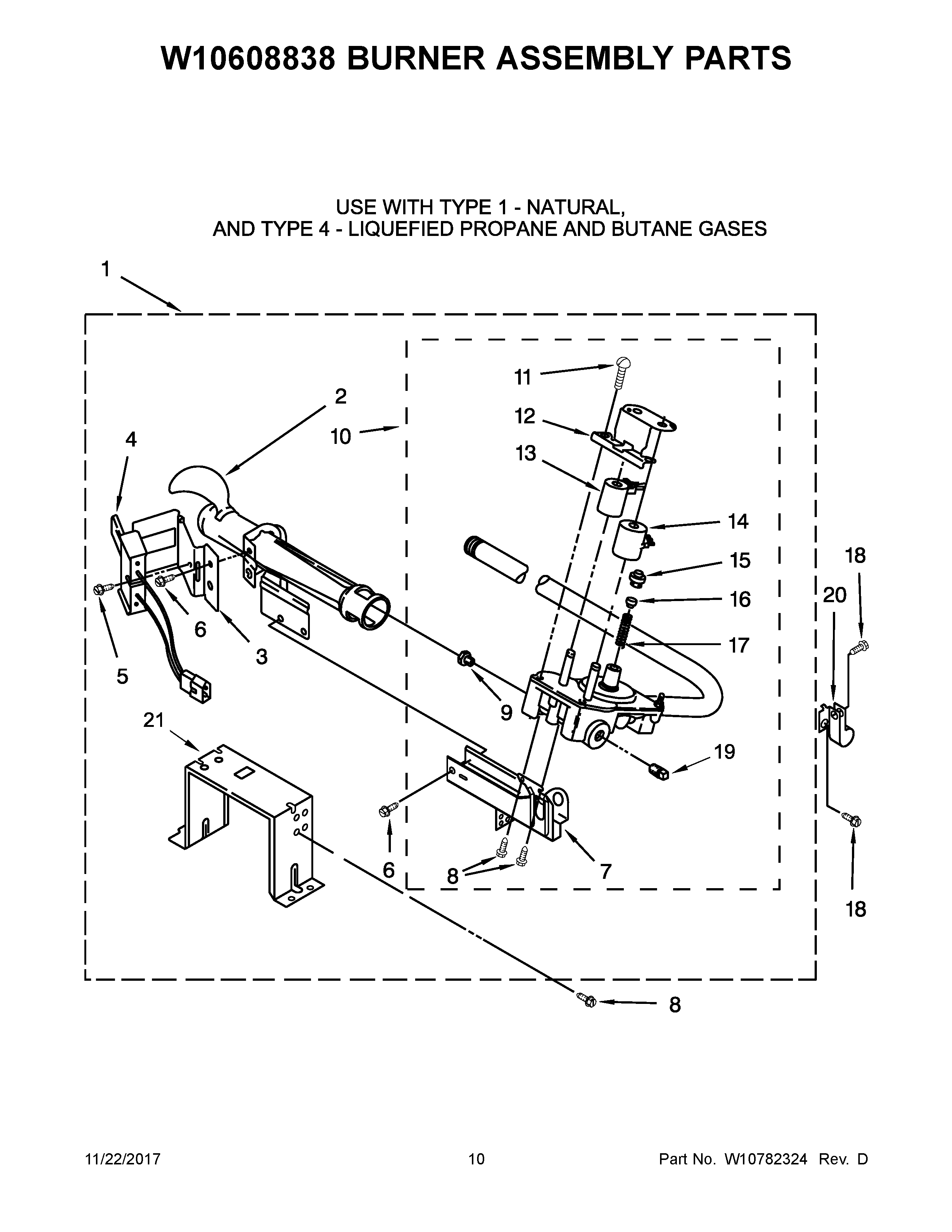

WGD8500DC1 06 – W10608838 BURNER ASSEMBLY PARTS

WGD8500DC1 06 – W10608838 BURNER ASSEMBLY PARTS

Written by

in

WGD8500DC1 06 – W10608838 BURNER ASSEMBLY PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11581317 Whirlpool LP Gas Connector
1W11233069 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9BWP229742 Whirlpool Gas Orifice
9WP15418 Whirlpool Gas Orifice
9AORIFICE, BURNER (TYPE 4 (BUTANE))
10WPW10118347 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
18WP488729 Whirlpool Refrigerator Door Screw
19W10295523 Whirlpool Plug
203978776 Whirlpool Bracket
21Bracket, Support
22W10641312 Whirlpool Pipe Assembly
