WGD8500DC4 03 – CABINET PARTS

WGD8500DC4 03 – CABINET PARTS

Written by

in

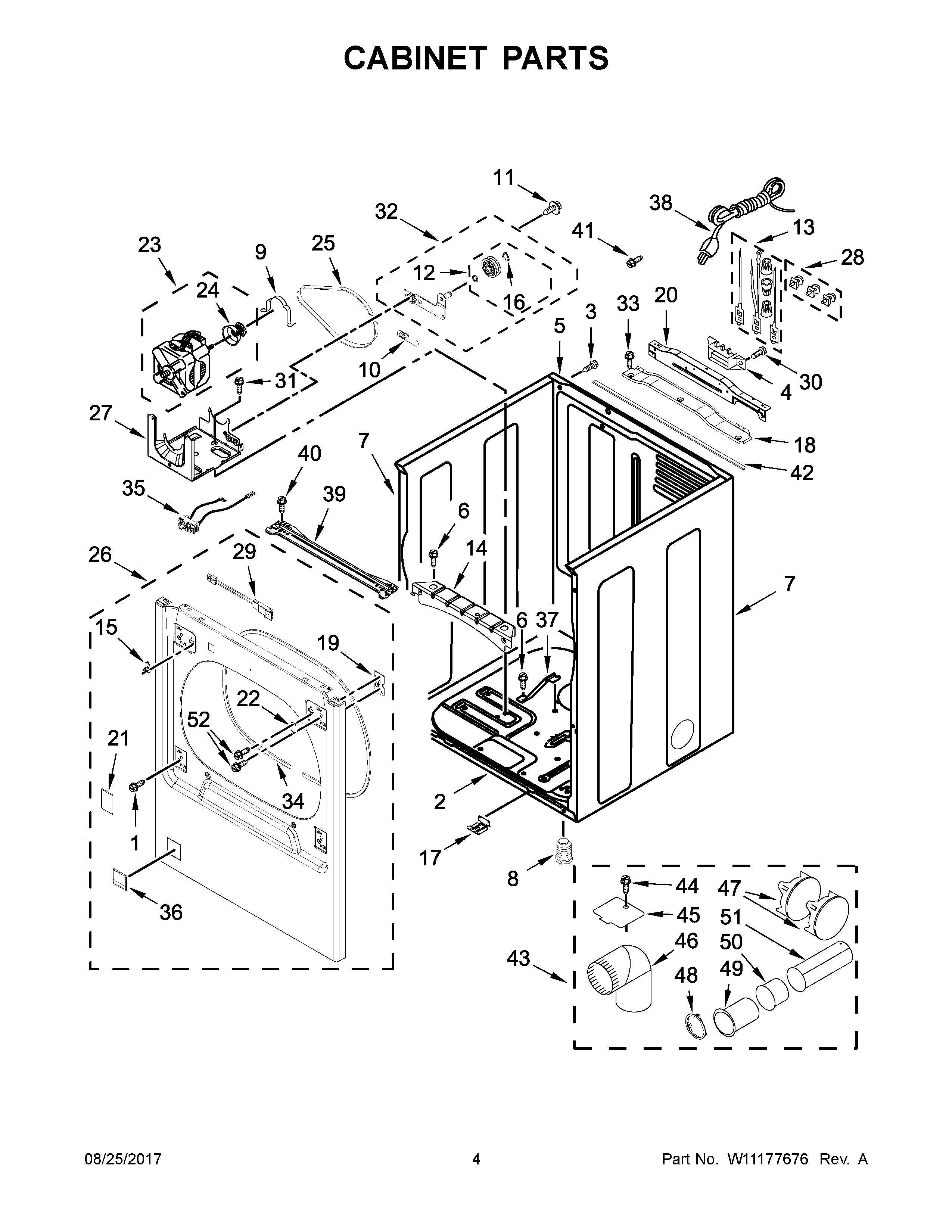

WGD8500DC4 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10850756 Whirlpool Screw
2W10613683 Whirlpool Base
3W10636208 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5W10824896 Whirlpool Rear Panel
6WP693995 Whirlpool Screw
7EPANEL, SIDE (LEFT) (RED)
7BW10573723 Whirlpool Cabinet
7AW10681830 Whirlpool Panel
7CW10645768 Whirlpool Panel Assembly
7DW10681831 Whirlpool Panel Assembly
7W10633648 Whirlpool Cabinet Assembly
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12279640 Whirlpool Dryer Idler Pulley Kit
13279318 Whirlpool Terminal
14W11282908 Whirlpool Bracket
15W11163826 Whirlpool Strike
16WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
17SPACER BRACKET, LOWER
18W10651902 Whirlpool Bracket
19BRACKET, HINGE
20W10622391 Whirlpool Bracket
21AW10596965 Whirlpool Plug
21W10590953 Whirlpool Plug
22WPW10111888 Whirlpool Plate Assembly
23W11105178 Whirlpool Drive Motor
24W11568637 Whirlpool Motor Pulley
25W10849499 Whirlpool Belt
26AW10875891 Whirlpool Panel
26BPANEL, FRONT (CHERRY METALLIC)
26W10875869 Whirlpool Panel
27W10578053 Whirlpool Base Assembly
28279393 Whirlpool Terminal Block Screw and Nut Kit
29W11036551 Whirlpool Door Switch
30SCREW
31SCREW
32W10837240 Whirlpool Dryer Idler Pulley
33WP3400805 Whirlpool Screw Assembly
34WP3387242 Whirlpool Seal
35W11662087 Whirlpool Dryer Switch
36BPLUG, FRONT PANEL (CHERRY METALLIC)
36W10811916 Whirlpool Plug
36AW10391496 Whirlpool Plug
37W10181903 Whirlpool Bracket
38W11628810 Whirlpool Power Cord
39BRACE, CAB AND SEAL ASSEMBLY
40W10891954 Whirlpool Screw
41SCREW
42W10316616 Whirlpool Seal
43W10704365 Whirlpool Dryer Exhaust Kit
44W11568617 Whirlpool Screw
45WPW10354249 Whirlpool Cover
46WPW10416072 Whirlpool Elbow
47WPW10404617 Whirlpool Plug Assembly
48WPW10344699 Whirlpool Collar
49PIPE, EXHAUST (MEDIUM)
50WPW10331278 Whirlpool Exhaust Pipe
51WP8563749 Whirlpool Exhaust Pipe
