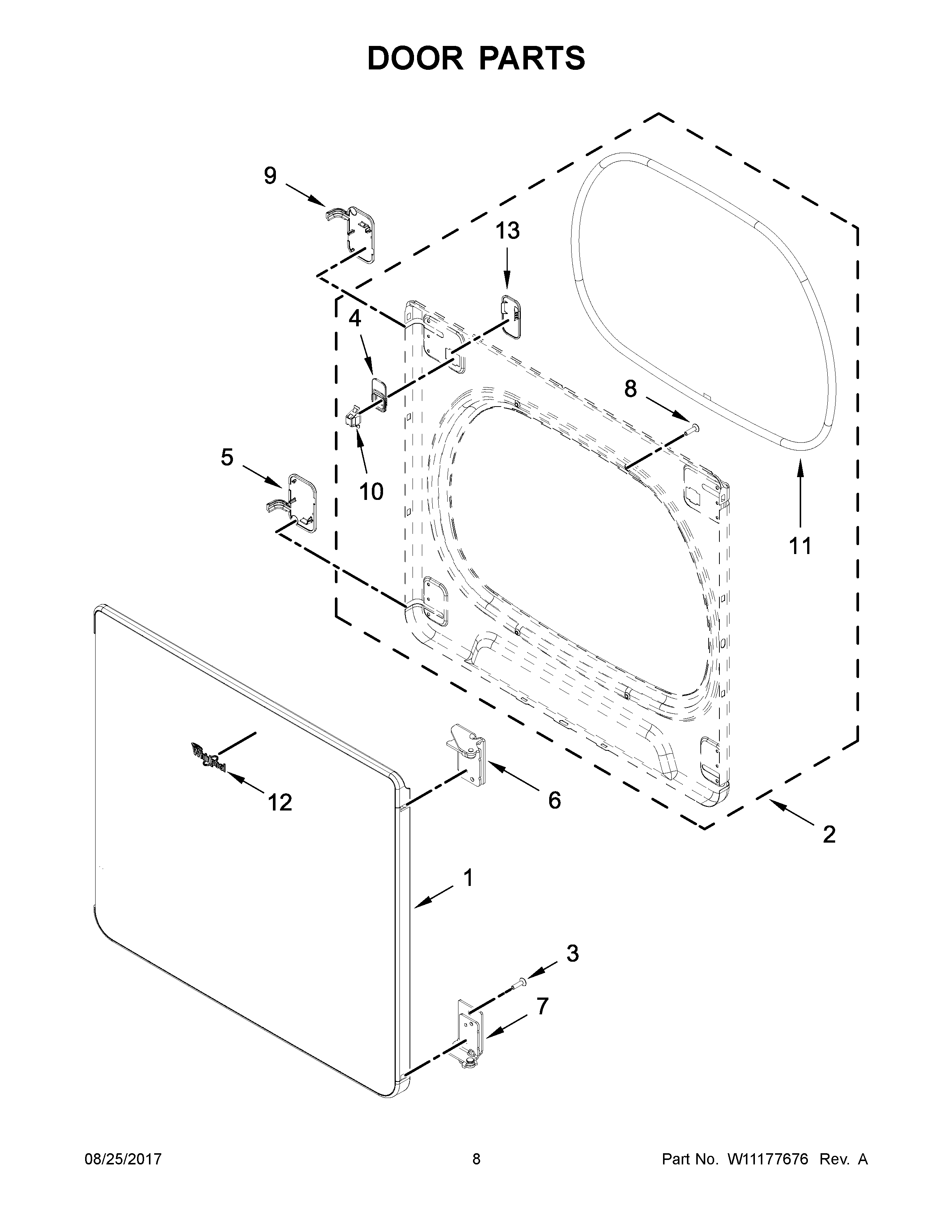

WGD8500DC4 05 – DOOR PARTS

Products

Position	Product
1	W10614960 Whirlpool Door Assembly
2	W11133036 Whirlpool Door Assembly
2A	W11162064 Whirlpool Door
3	SCREW
4A	W10669023 Whirlpool Bezel
4	W11103932 Whirlpool Bezel Assembly
5	W10631396 Whirlpool Cover
5A	W10631413 Whirlpool Cover
6	W10850024 Whirlpool Hinge Assembly
7	W10850044 Whirlpool Hinge
8	WP488627 Whirlpool Refrigerator Screw
9A	W10631412 Whirlpool Cover Assembly
9	W10631395 Whirlpool Cover Assembly
10	W11429587 Whirlpool Catch Assembly
11	W10763835 Whirlpool Door Seal Assembly
12	WPW10393264 Whirlpool Refrigerator Nameplate
13	W10631410 Whirlpool Plate
13A	W10669024 Whirlpool Plate
