WGD8500DR0 02 – TOP AND CONSOLE PARTS

WGD8500DR0 02 – TOP AND CONSOLE PARTS

Written by

in

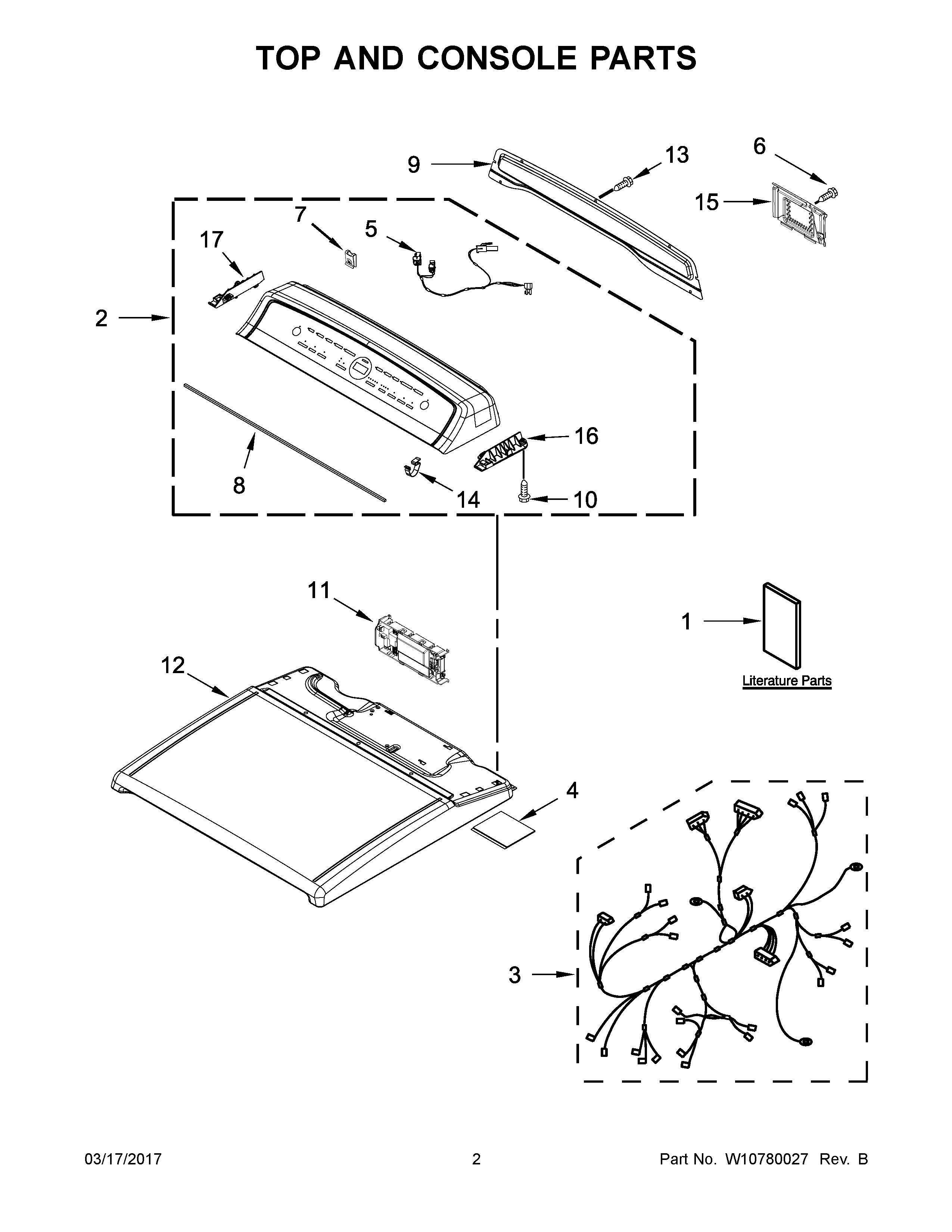

WGD8500DR0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CQUICKSTART GUIDE
1BTECH SHEET
1AGUIDE, USE AND CARE
2W10573719 Whirlpool Console Assembly
3W10706041 Whirlpool Wire Harness
4W10123956 Whirlpool Sound Absorber
5W10593673 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11CONTROL, ELECTRONIC
12W10573725 Whirlpool Top
13WP9740848 Whirlpool Dishwasher Screw
14WP8312709 Whirlpool Endcap Clip
15W10819767 Whirlpool Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
