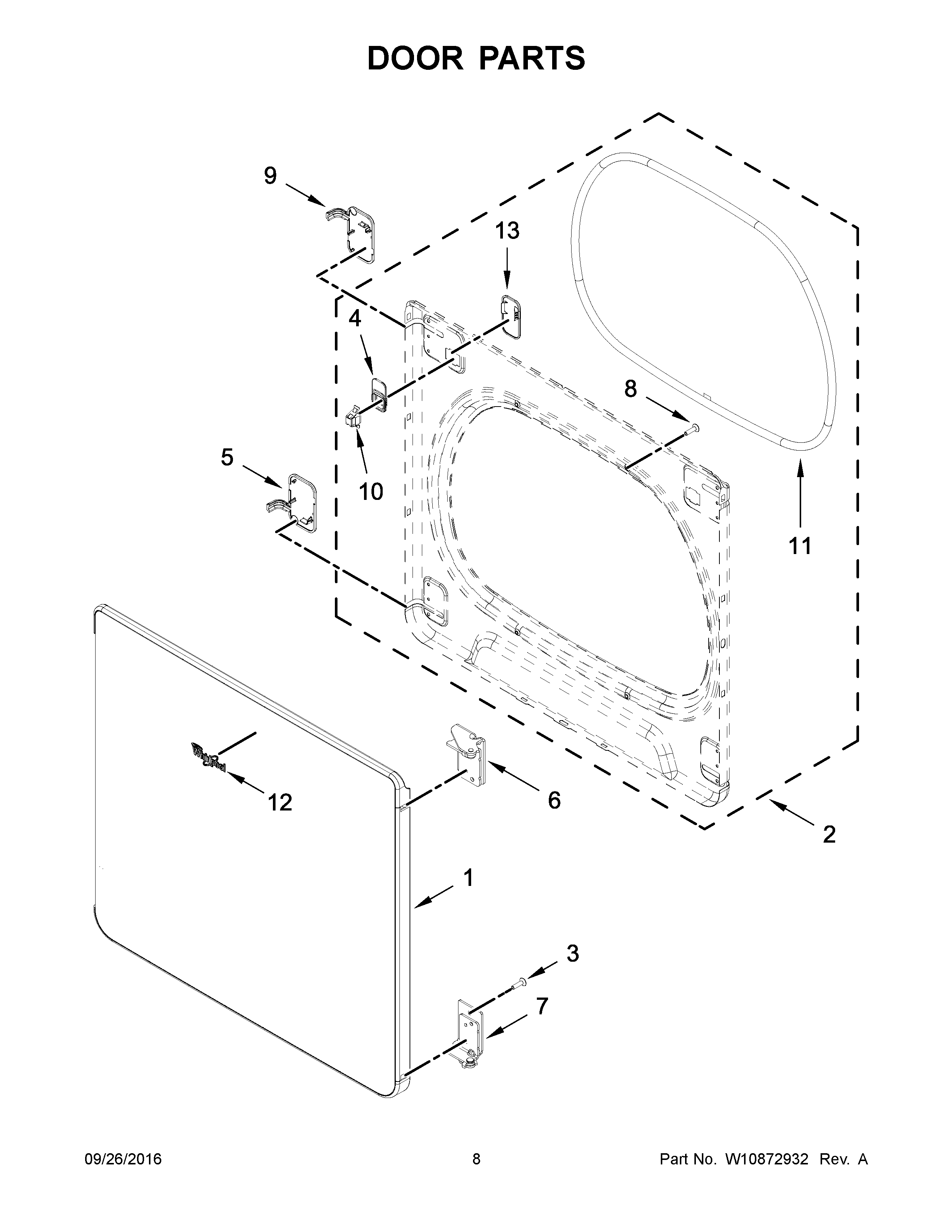

WGD8500DR3 05 – DOOR PARTS

Products

Position	Product
1	W10614960 Whirlpool Door Assembly
2	W10614997 Whirlpool Door
2A	W10615000 Whirlpool Door Assembly
3	SCREW
4	W11103932 Whirlpool Bezel Assembly
4A	W10669023 Whirlpool Bezel
5A	W10631413 Whirlpool Cover
5	W10631396 Whirlpool Cover
6	W10850024 Whirlpool Hinge Assembly
7	W10850044 Whirlpool Hinge
8	WP488627 Whirlpool Refrigerator Screw
9A	W10631412 Whirlpool Cover Assembly
9	W10631395 Whirlpool Cover Assembly
10	W11429587 Whirlpool Catch Assembly
11	W10763835 Whirlpool Door Seal Assembly
12	WPW10393264 Whirlpool Refrigerator Nameplate
13	W10631410 Whirlpool Plate
13A	W10669024 Whirlpool Plate
