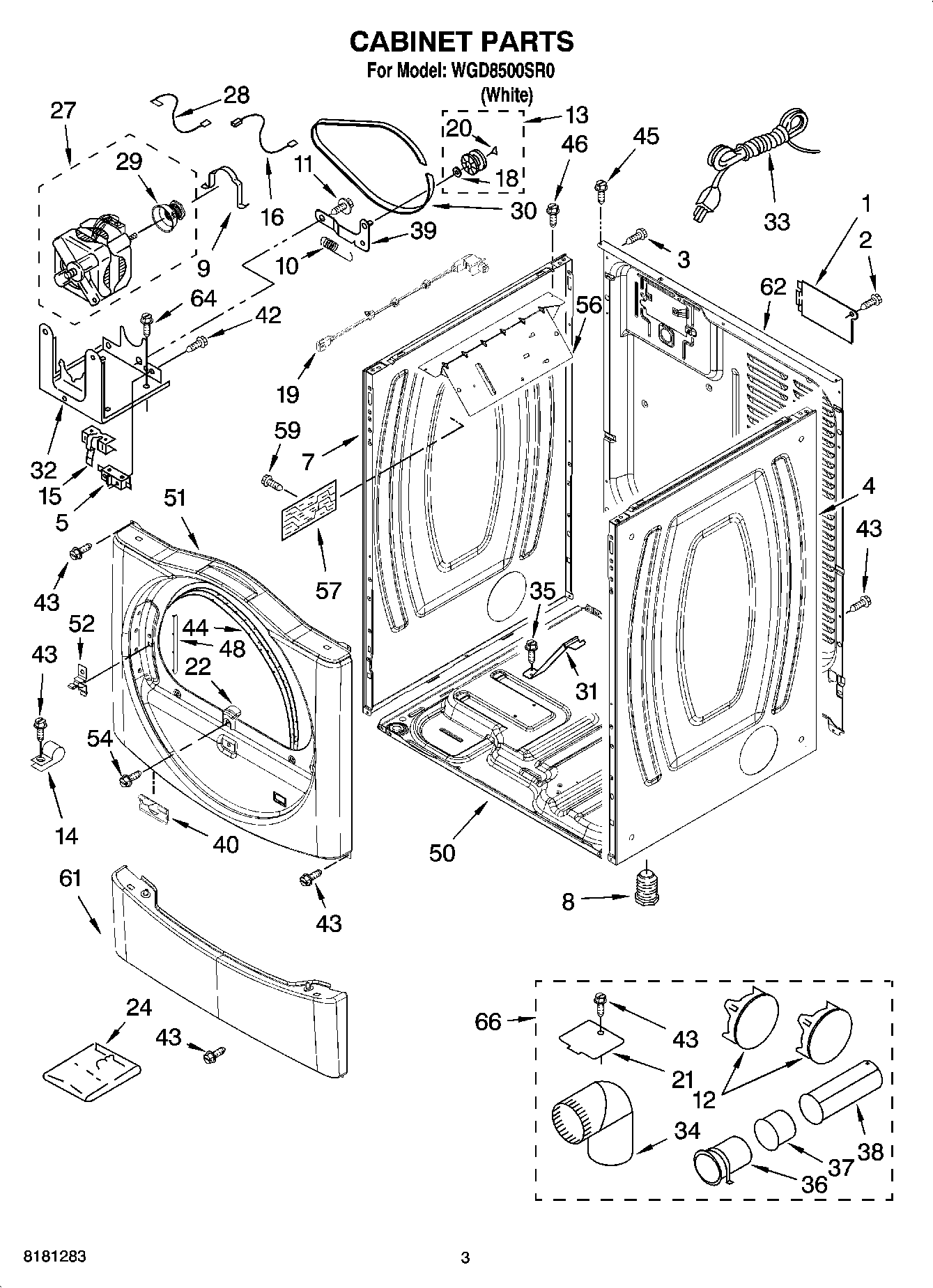

WGD8500SR0 02 – CABINET PARTS

WGD8500SR0 02 – CABINET PARTS

Written by

in

WGD8500SR0 02 – CABINET PARTS

Products

PositionProduct
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W10542714 Whirlpool Panel
5279782 Whirlpool Lid Switch
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15WP8066120 Whirlpool Lever Assembly
16Wire, Belt Switch
18WPW10121334 Whirlpool Washer
19Assembly, Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
228580015 Whirlpool Ramp
248572546 Whirlpool Washer Duet Sport Epic Stack Kit
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32WP3387118 Whirlpool Base Assembly
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
35WP693995 Whirlpool Screw
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40W11295573 Whirlpool Clip
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11693756 Whirlpool Screw Assembly
488565043 Whirlpool Plug
50W11215531 Whirlpool Base
51Front Panel (Includes Illus. 44)
52WP8565122 Whirlpool Strike Assembly
54WP308685 Whirlpool Microwave Screw
56WP8563727 Whirlpool Bracket
57WPL W10050520
61WP8540621 Whirlpool Toe Panel
62Panel, Rear
64SCREW
64Optional Parts Not Included
66W10470674 Whirlpool Dryer Side Vent Exhaust Kit
