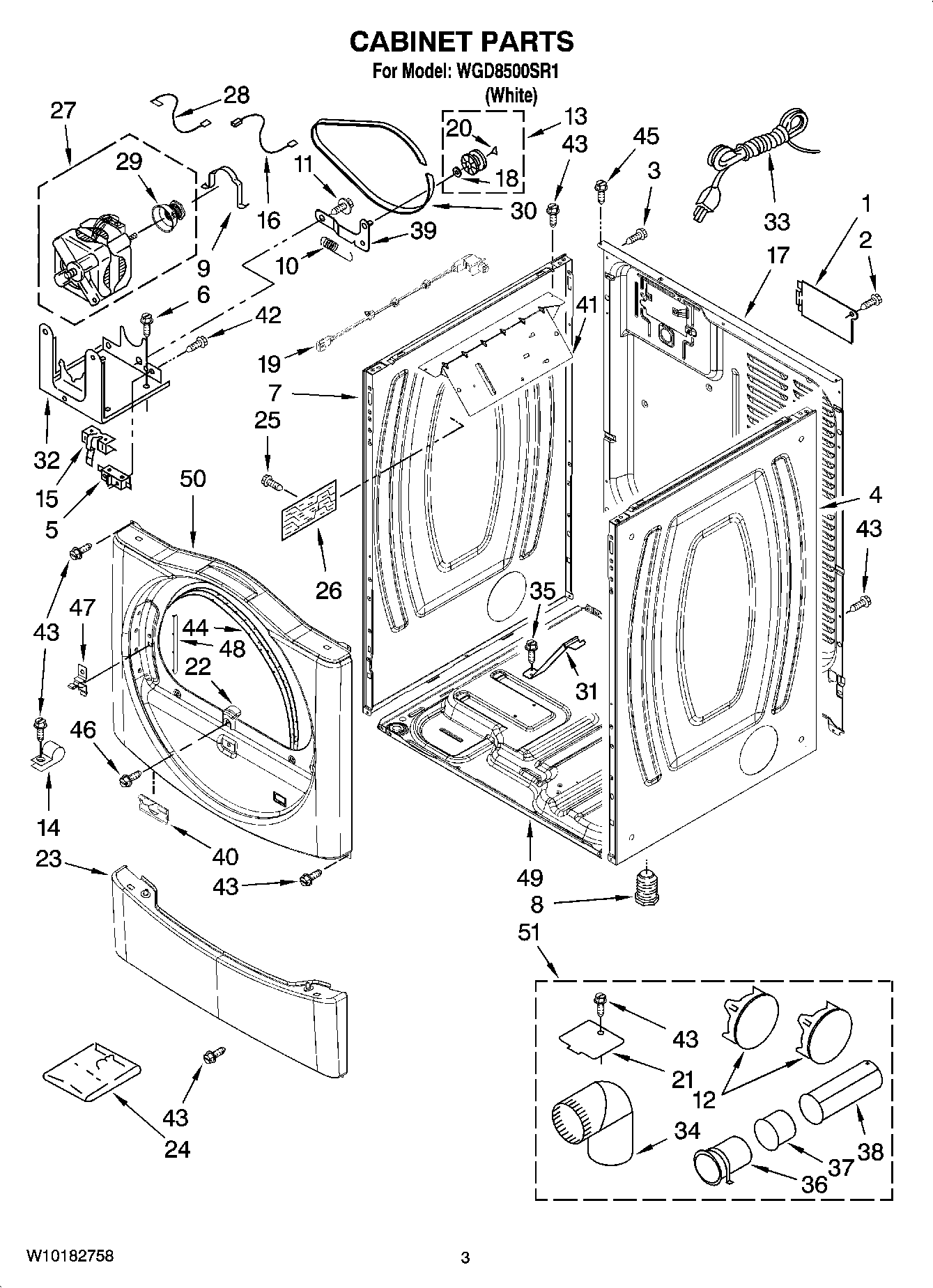

WGD8500SR1 02 – CABINET PARTS

Products

Position	Product
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	279782 Whirlpool Lid Switch
6	SCREW
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	WP8066120 Whirlpool Lever Assembly
16	Wire, Belt Switch
17	Panel, Rear
18	WPW10121334 Whirlpool Washer
19	Assembly, Door Switch
21	WPW10354249 Whirlpool Cover
22	8580015 Whirlpool Ramp
23	WP8540621 Whirlpool Toe Panel
24	8572546 Whirlpool Washer Duet Sport Epic Stack Kit
26	WPL W10111606
27	279787 Whirlpool Dryer Drive Motor
28	3398948 Whirlpool Wire
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	WP3387118 Whirlpool Base Assembly
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WP693995 Whirlpool Screw
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	W11295573 Whirlpool Clip
41	WP8563727 Whirlpool Bracket
42	WP98129 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
46	WP308685 Whirlpool Microwave Screw
47	WP8565122 Whirlpool Strike Assembly
48	8565043 Whirlpool Plug
49	W11215531 Whirlpool Base
50	Front Panel (Includes Illus. 44)
50	Optional Parts Not Included
51	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
