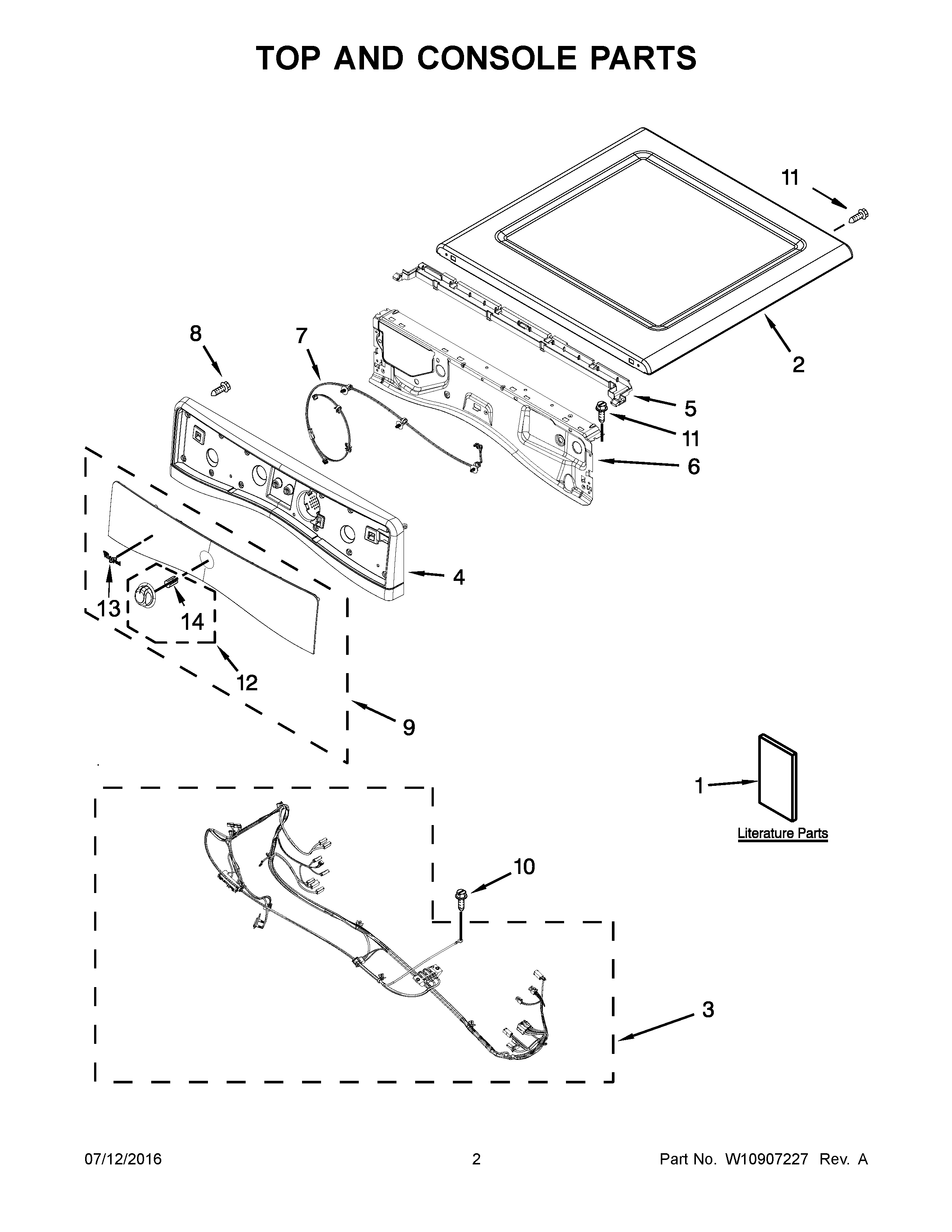

WGD8540FW0 02 – TOP AND CONSOLE PARTS

WGD8540FW0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8540FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BINSTALLATION INSTRUCTIONS
1CQUICK START GUIDE
1USE AND CARE GUIDE
1ATECH SHEET
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN WIRING
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W11025125 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9W11109850 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10875909 Whirlpool Timer Knob
13W11178521 Whirlpool Dishwasher Nameplate
14WP8536939 Whirlpool Spring Clip
