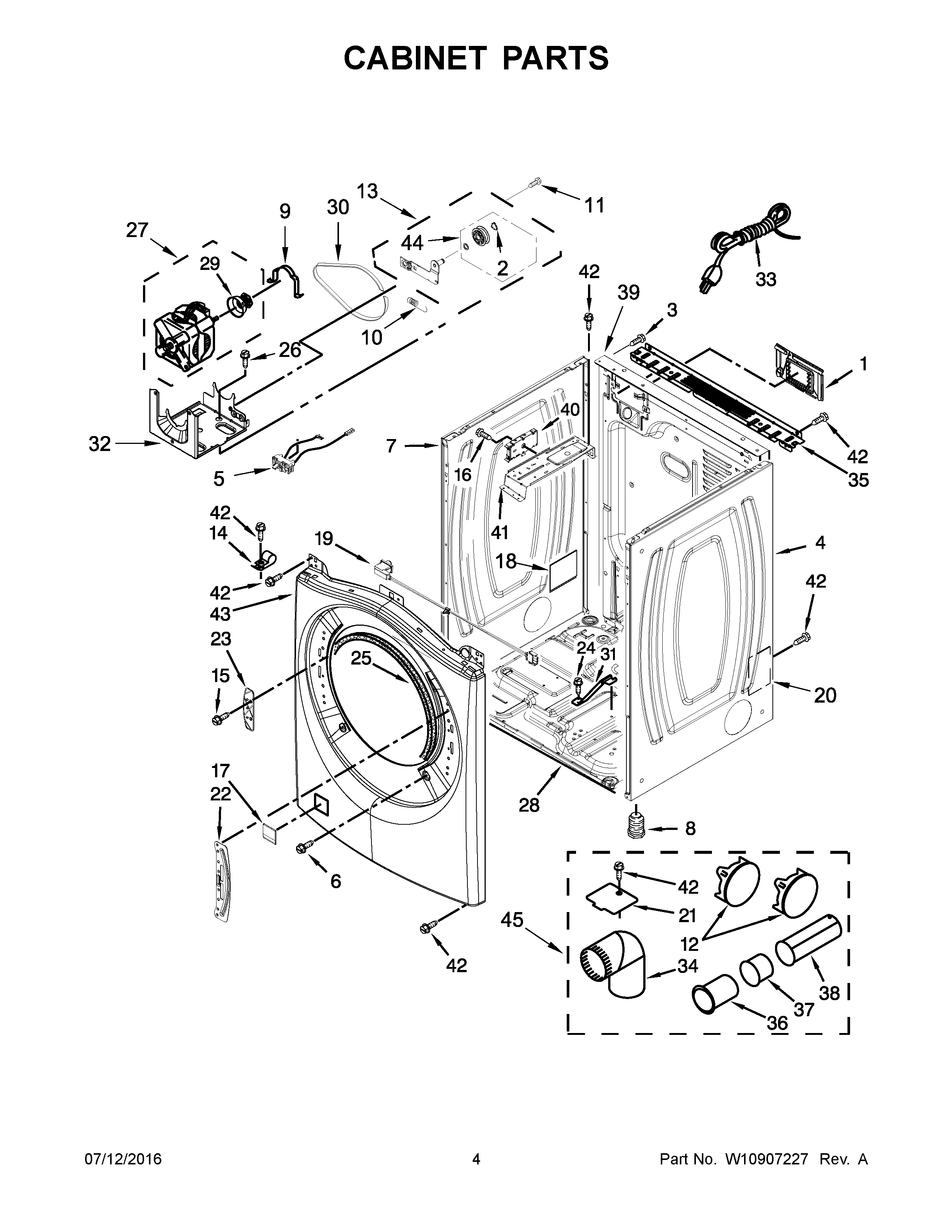

WGD8540FW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
3	W10850756 Whirlpool Screw
4	W11310043 Whirlpool Panel
5	W11662087 Whirlpool Dryer Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	W10837240 Whirlpool Dryer Idler Pulley
14	3978776 Whirlpool Bracket
15	SCREW
16	WP489463 Whirlpool Refrigerator Screw
17	W10811916 Whirlpool Plug
18	W11668653 Whirlpool Sound Panel
19	WPW10350906 Whirlpool Door Switch
20	W11409002 Whirlpool Pad
21	WPW10354249 Whirlpool Cover
22	BRACKET, DOOR HINGE
23	WPW10208250 Whirlpool Strike
24	WP693995 Whirlpool Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10487430 Whirlpool Rear Panel
40	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
41	BRACKET, CONTROL
42	WP488729 Whirlpool Refrigerator Door Screw
43	WPW10363953 Whirlpool Dishwasher Panel
44	279640 Whirlpool Dryer Idler Pulley Kit
45	W10323246 Whirlpool Dryer Vent Kit 4-Way
