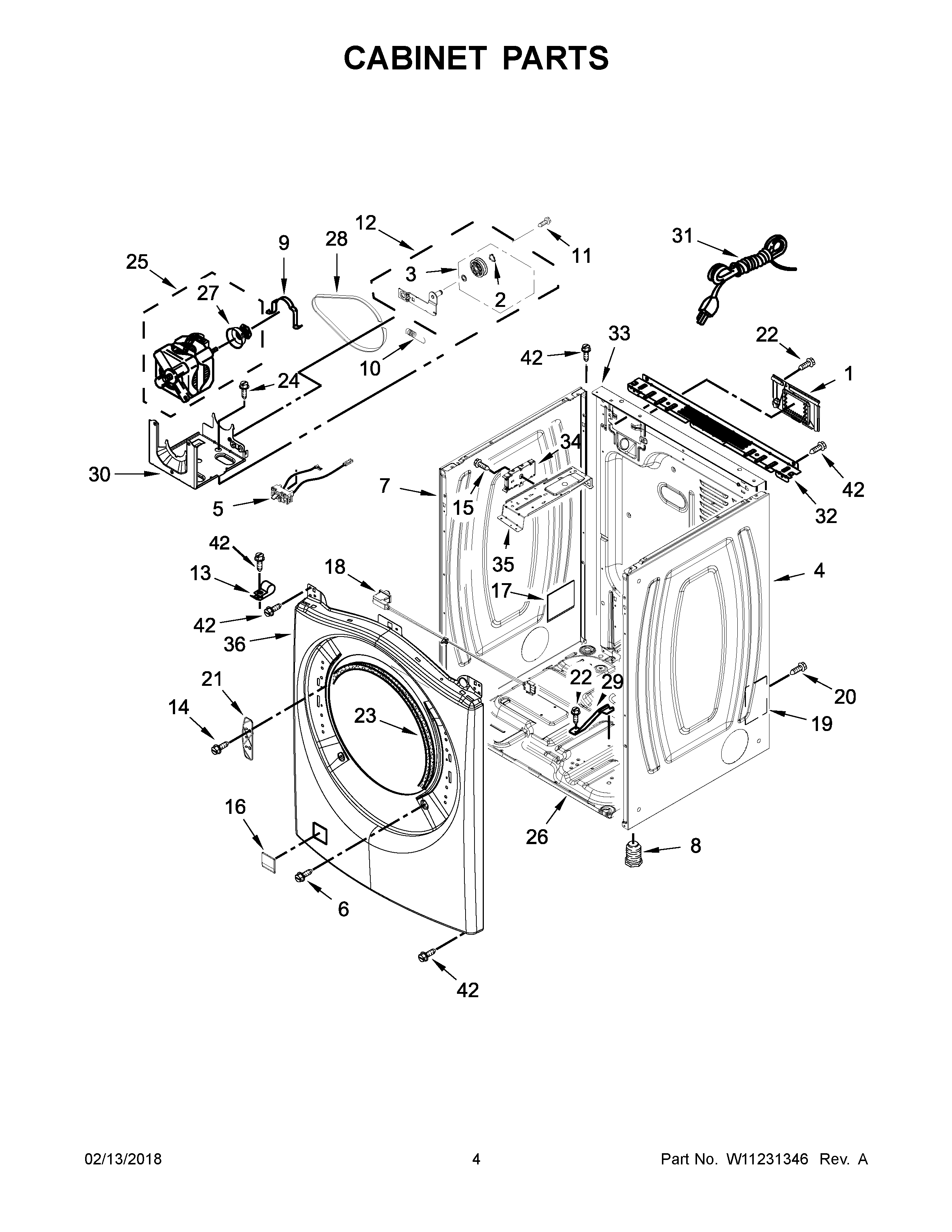

WGD8540FW1 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
3	279640 Whirlpool Dryer Idler Pulley Kit
4	W11310043 Whirlpool Panel
5	W11662087 Whirlpool Dryer Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	W10837240 Whirlpool Dryer Idler Pulley
13	3978776 Whirlpool Bracket
14	SCREW
15	WP489463 Whirlpool Refrigerator Screw
16	W10811916 Whirlpool Plug
17	W11668653 Whirlpool Sound Panel
18	WPW10350906 Whirlpool Door Switch
19	W11409002 Whirlpool Pad
20	W10850756 Whirlpool Screw
21	WPW10208250 Whirlpool Strike
22	WP693995 Whirlpool Screw
23	WP3387242 Whirlpool Seal
24	SCREW
25	MOTOR-DRVE
26	W11215531 Whirlpool Base
27	WP8066184 Whirlpool Dryer Motor Pulley
28	661570V Whirlpool Dryer Drum Belt
29	W10181903 Whirlpool Bracket
30	W11481730 Whirlpool Bracket
31	W10869140 Whirlpool Power Cord
32	WPW10208382 Whirlpool Dryer Bracket
33	W10487430 Whirlpool Rear Panel
34	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
35	BRACKET, CONTROL
36	WPW10363953 Whirlpool Dishwasher Panel
