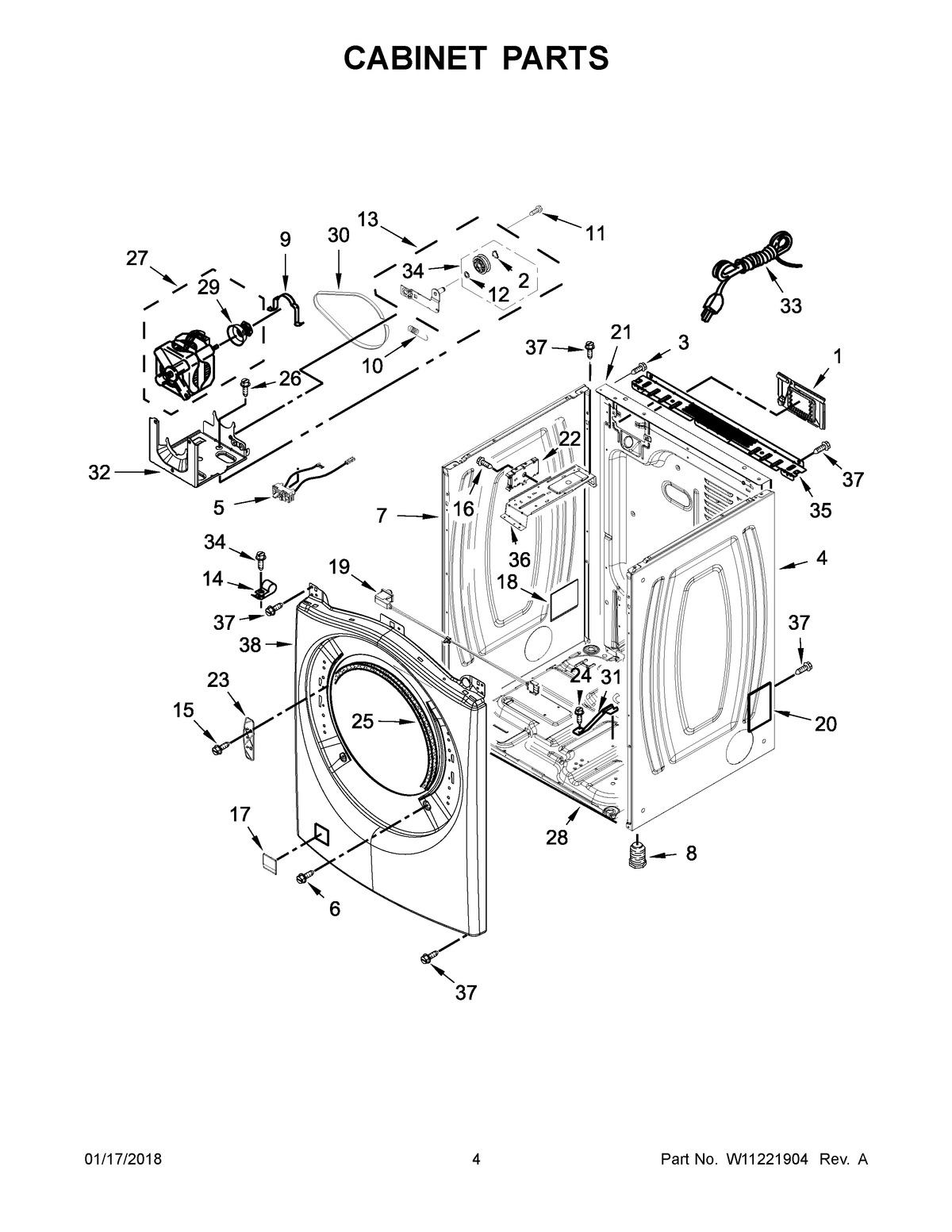

WGD85HEFC1 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
3	W10850756 Whirlpool Screw
4A	W11321018 Whirlpool Panel
4	W11310043 Whirlpool Panel
5	W11662087 Whirlpool Dryer Switch
6	WP308685 Whirlpool Microwave Screw
7A	W11315726 Whirlpool Panel Assembly
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10121334 Whirlpool Washer
13	W10837240 Whirlpool Dryer Idler Pulley
14	3978776 Whirlpool Bracket
15	SCREW
16	WP489463 Whirlpool Refrigerator Screw
17A	W10391496 Whirlpool Plug
17	W10811916 Whirlpool Plug
18	W11668653 Whirlpool Sound Panel
19	WPW10350906 Whirlpool Door Switch
20	W11409002 Whirlpool Pad
21	W10487430 Whirlpool Rear Panel
22	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
23	WPW10208250 Whirlpool Strike
24	WP693995 Whirlpool Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W10869140 Whirlpool Power Cord
34	279640 Whirlpool Dryer Idler Pulley Kit
35	WPW10208382 Whirlpool Dryer Bracket
36	BRACKET, CONTROL
37	WP488729 Whirlpool Refrigerator Door Screw
38A	WPW10463309 Whirlpool Dishwasher Panel
38	WPW10363953 Whirlpool Dishwasher Panel
