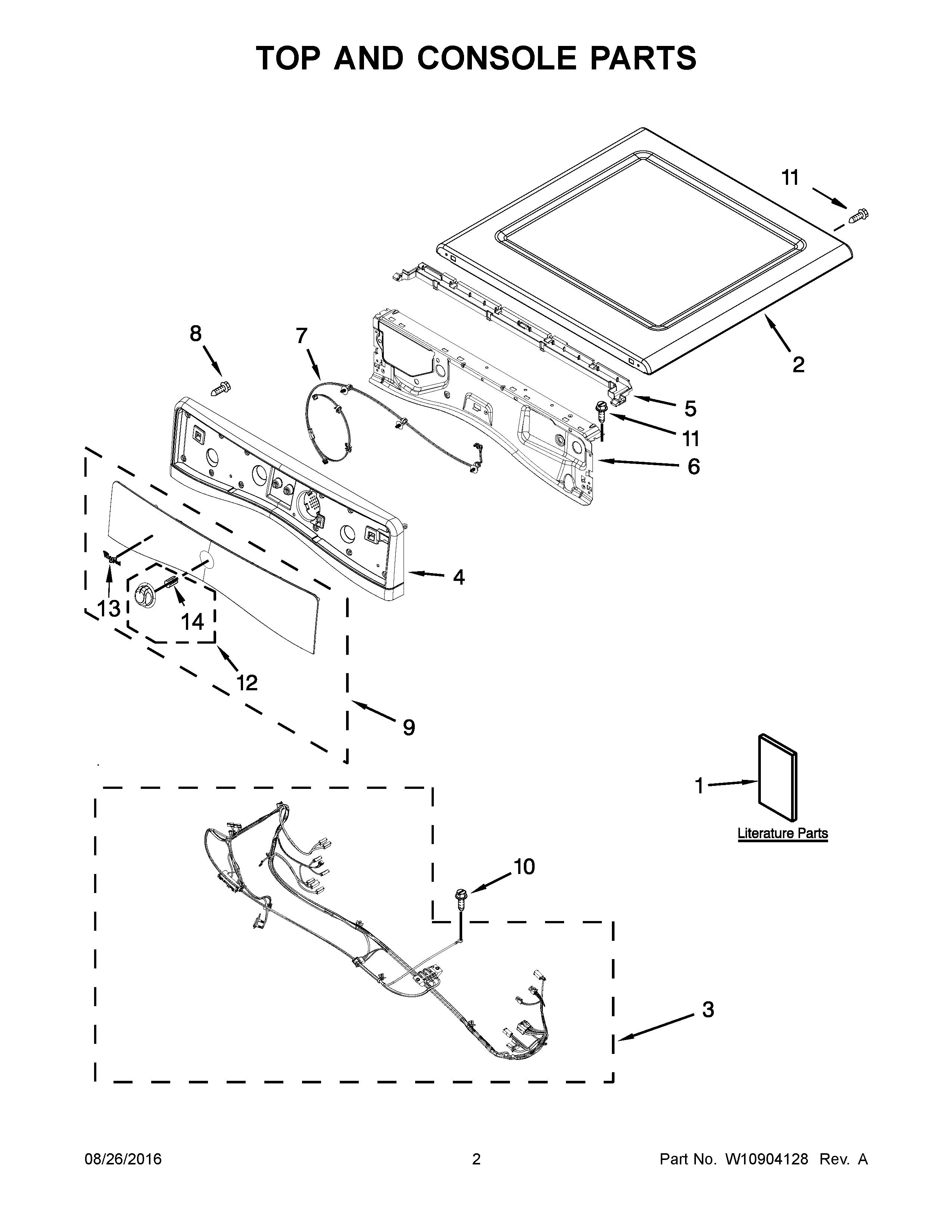

WGD85HEFW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1A	TECH SHEET
1C	QUICK START GUIDE
1B	INSTALLATION INSTRUCTIONS
2A	WPW10460919 Whirlpool Top
2	WPW10208383 Whirlpool Top Panel
3	HARNESS, MAIN WIRING
4	WPW10391519 Whirlpool Console
4A	W10876224 Whirlpool Console
5	WPW10653575 Whirlpool Channel
6	W11480682 Whirlpool Bracket
7	W11025125 Whirlpool Wire Harness
8	W10853898 Whirlpool Screw
9	W11109849 Whirlpool Control Panel
9A	W11109852 Whirlpool Control Panel
10	WP693995 Whirlpool Screw
11	WP488729 Whirlpool Refrigerator Door Screw
12	W10875909 Whirlpool Timer Knob
13A	WPW10393264 Whirlpool Refrigerator Nameplate
13	W11178521 Whirlpool Dishwasher Nameplate
14	WP8536939 Whirlpool Spring Clip
