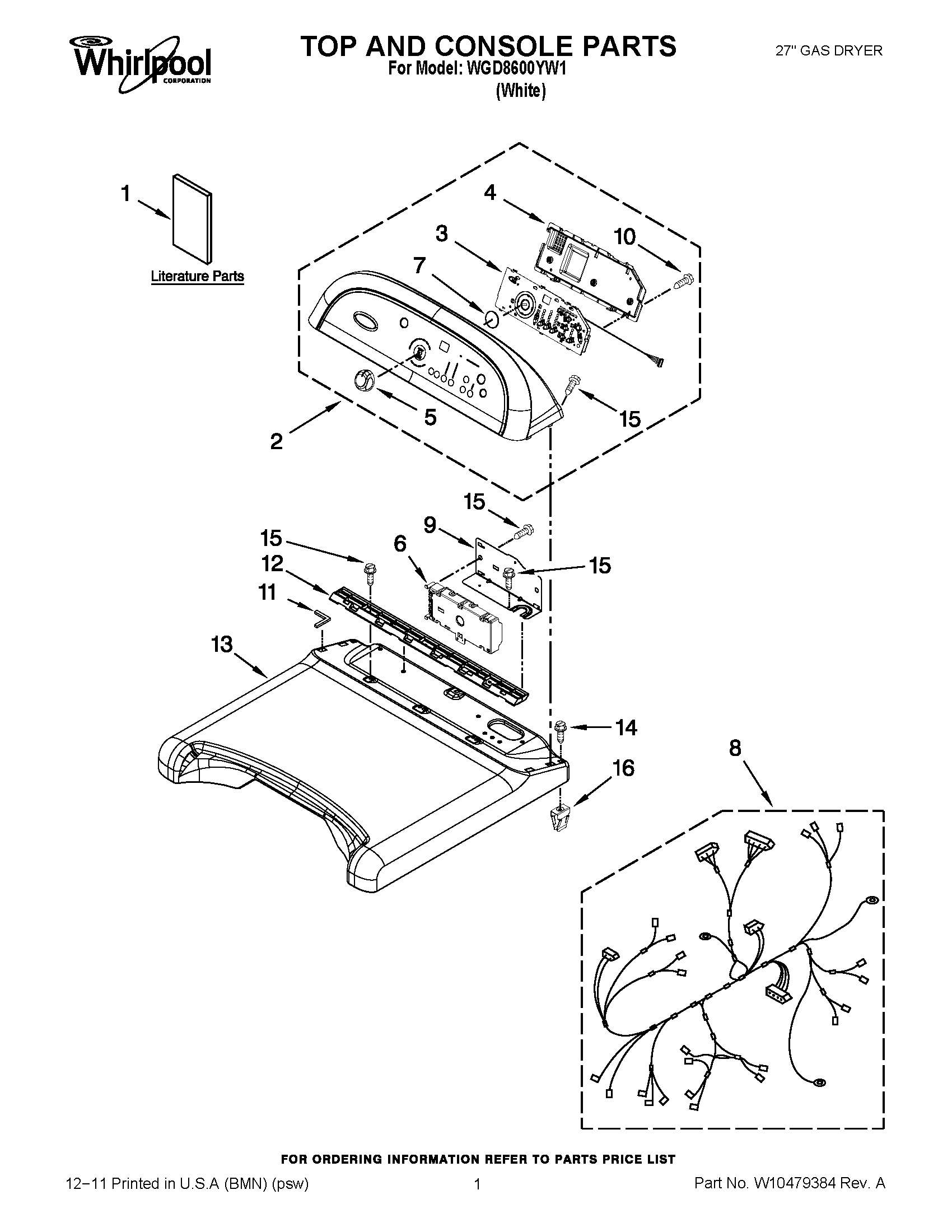

WGD8600YW1 01 – TOP AND CONSOLE PARTS

WGD8600YW1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD8600YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION, INSTRUCTION
1GUIDE, USE & CARE
2PANEL, CONSOLE
3WPW10388674 Whirlpool Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6WPW10432258-includeCORE Whirlpool WPW10432258 Washer Electronic Control Board + Core
7SEAL, USER INTERFACE
8HARNESS, WIRING
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10185554 Whirlpool Seal Assembly
12Bracket, Console
13TOP
14W10131402 Whirlpool Screw
15WP33001882 Whirlpool Screw
16W10112673 Whirlpool Clip
