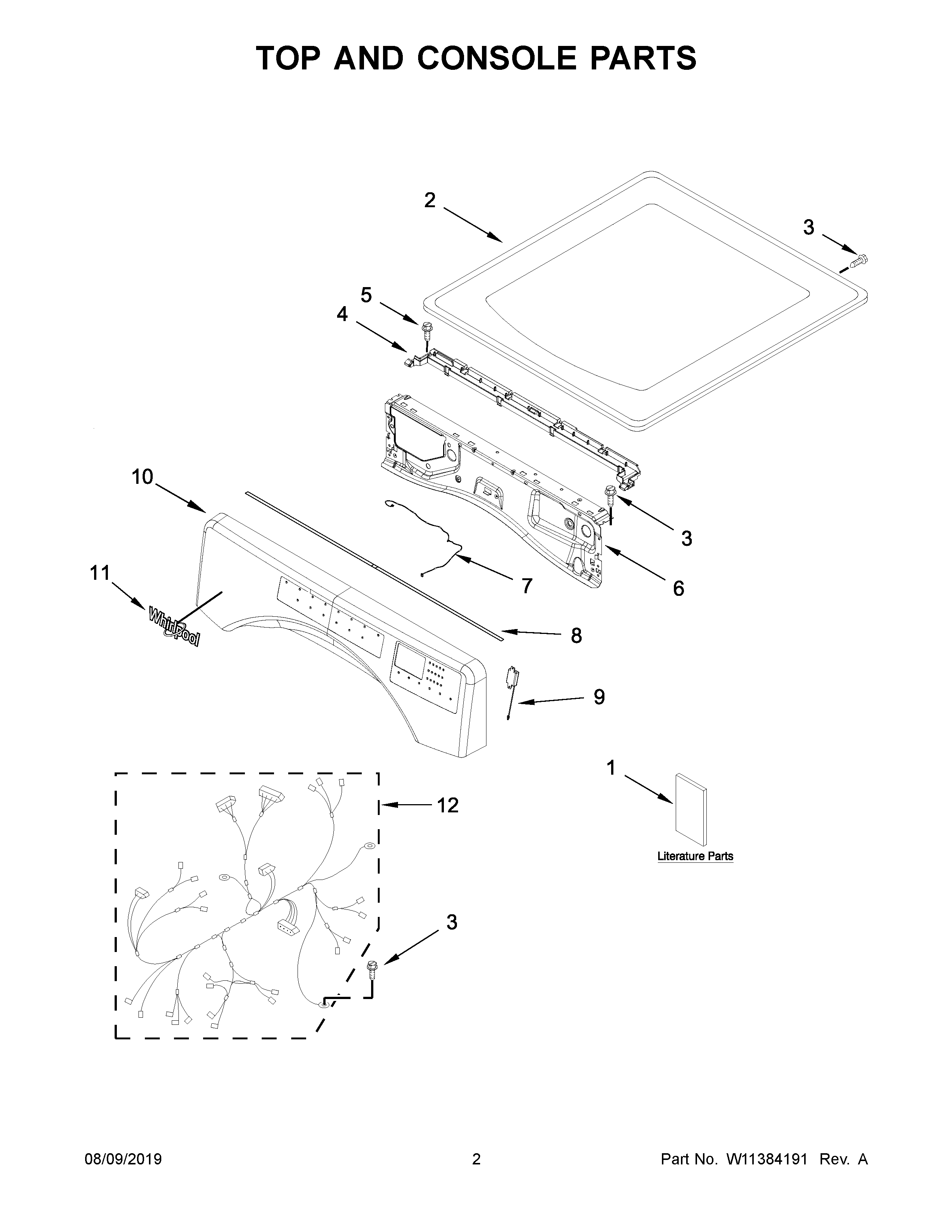

WGD8620HC1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	INSTALLATION INSTRUCTIONS
1D	QUICK START GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
1C	WIRING DIAGRAM
2	WPW10208383 Whirlpool Top Panel
2A	WPW10460919 Whirlpool Top
3	WP693995 Whirlpool Screw
4	W11310027 Whirlpool Bracket
5	W11686675 Whirlpool Screw
6	W11480682 Whirlpool Bracket
7	W11459337 Whirlpool Wire Harness
8	SEAL
9	W11123146 Whirlpool Speaker
10A	W11367342 Whirlpool Console + Core
10	W11367339 Whirlpool Console + Core
11	W11223753 Whirlpool Refrigerator Nameplate
12	W11157861 Whirlpool Wire Harness
