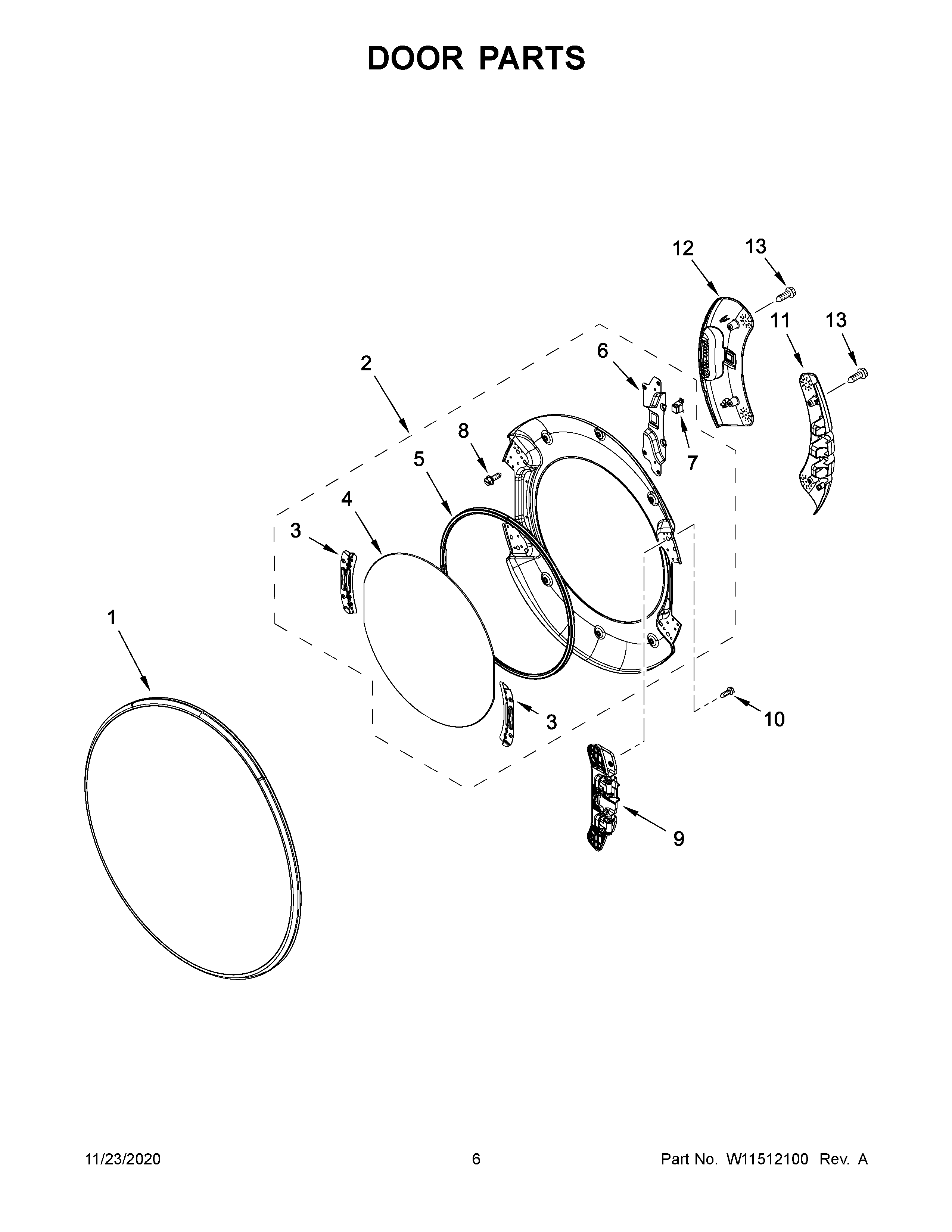

WGD8620HC2 04 – DOOR PARTS

Products

Position	Product
1	W11318810 Whirlpool Outer Door Assembly
2	W11701947 Whirlpool Door Assembly
3	W11310037 Whirlpool Retainer
4	W11310036 Whirlpool Door Glass
5	W11310035 Whirlpool Seal
6	W11310039 Whirlpool Cover
7	W11240283 Whirlpool Catch Assembly
8	SCREW
9	W11318815 Whirlpool Hinge
10	8540479 Whirlpool Screw
11	W11120174 Whirlpool Cover Assembly
12	COVER
13	SCREW
