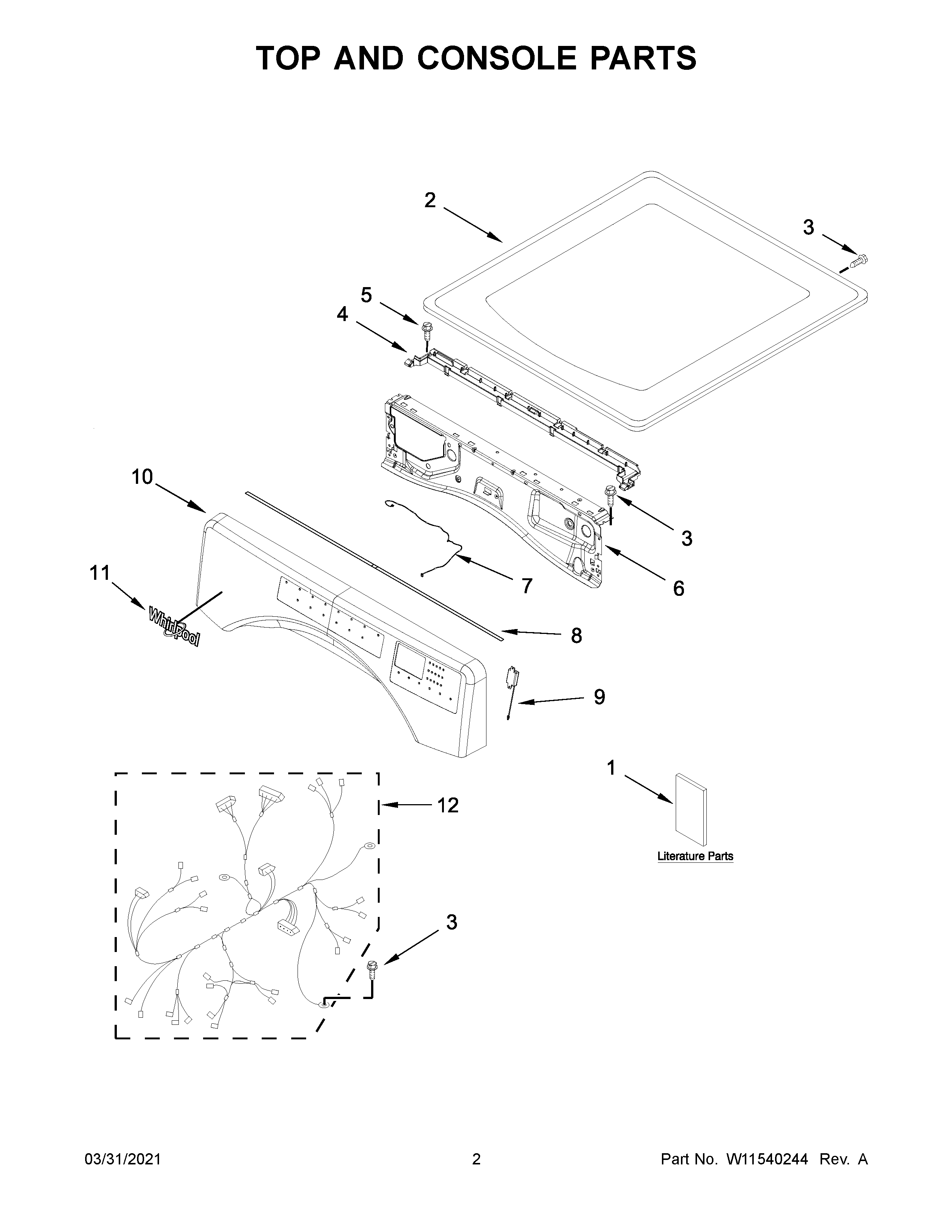

WGD8620HC3 02 – TOP AND CONSOLE PARTS

WGD8620HC3 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8620HC3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1CQUICK START GUIDE
1ATECH SHEET
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11459337 Whirlpool Wire Harness
8SEAL
9W11123146 Whirlpool Speaker
10AW11367342 Whirlpool Console + Core
10W11367339 Whirlpool Console + Core
11W11223753 Whirlpool Refrigerator Nameplate
12W11157861 Whirlpool Wire Harness
