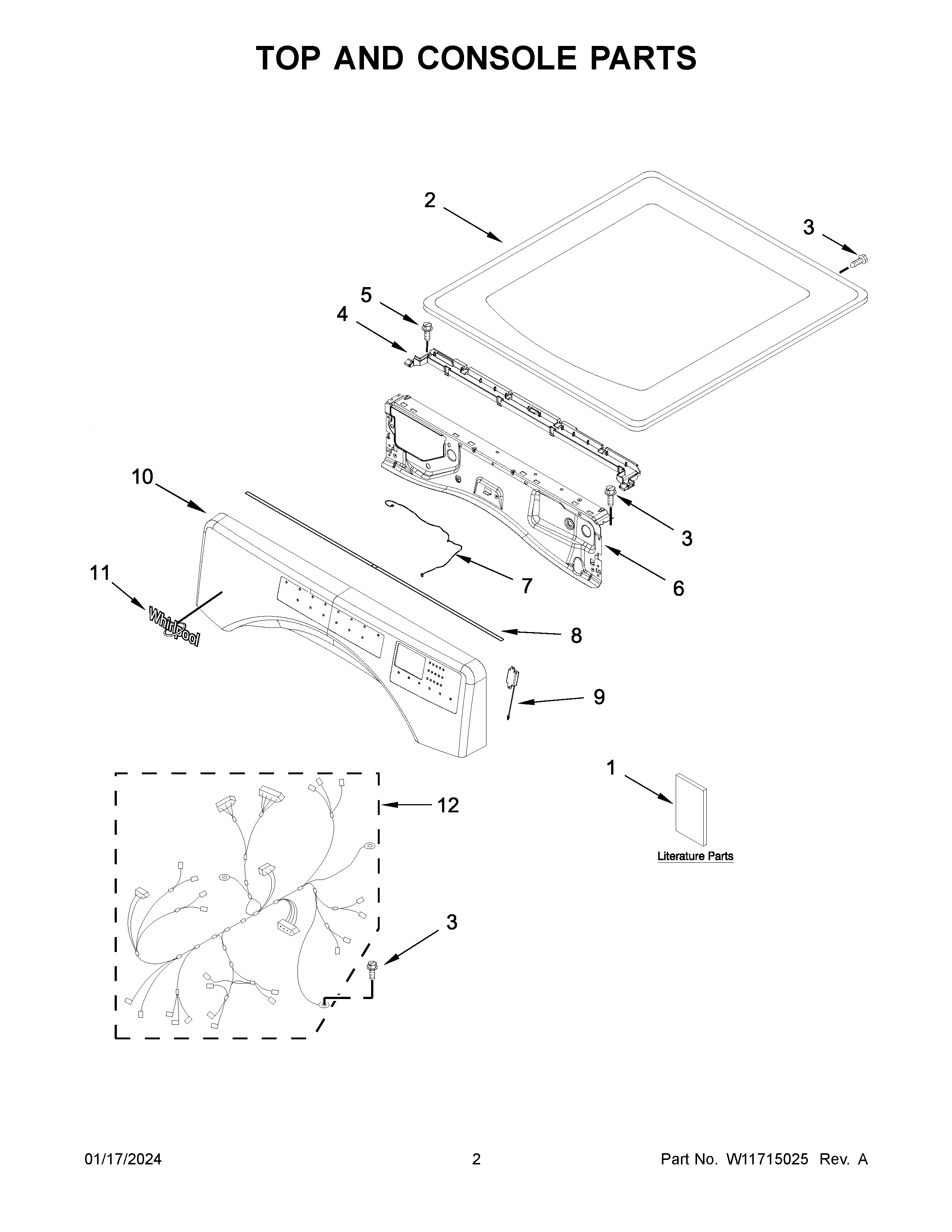

WGD8620HW4 02 – TOP AND CONSOLE PARTS

WGD8620HW4 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8620HW4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1CQUICK START GUIDE
1ATECH SHEET
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11459337 Whirlpool Wire Harness
8SEAL
9W11123146 Whirlpool Speaker
10W11716417-includeCORE Whirlpool W11716417 Console
10AW11716418-includeCORE Whirlpool W11716418 Console
11W11223753 Whirlpool Refrigerator Nameplate
12W11157861 Whirlpool Wire Harness
