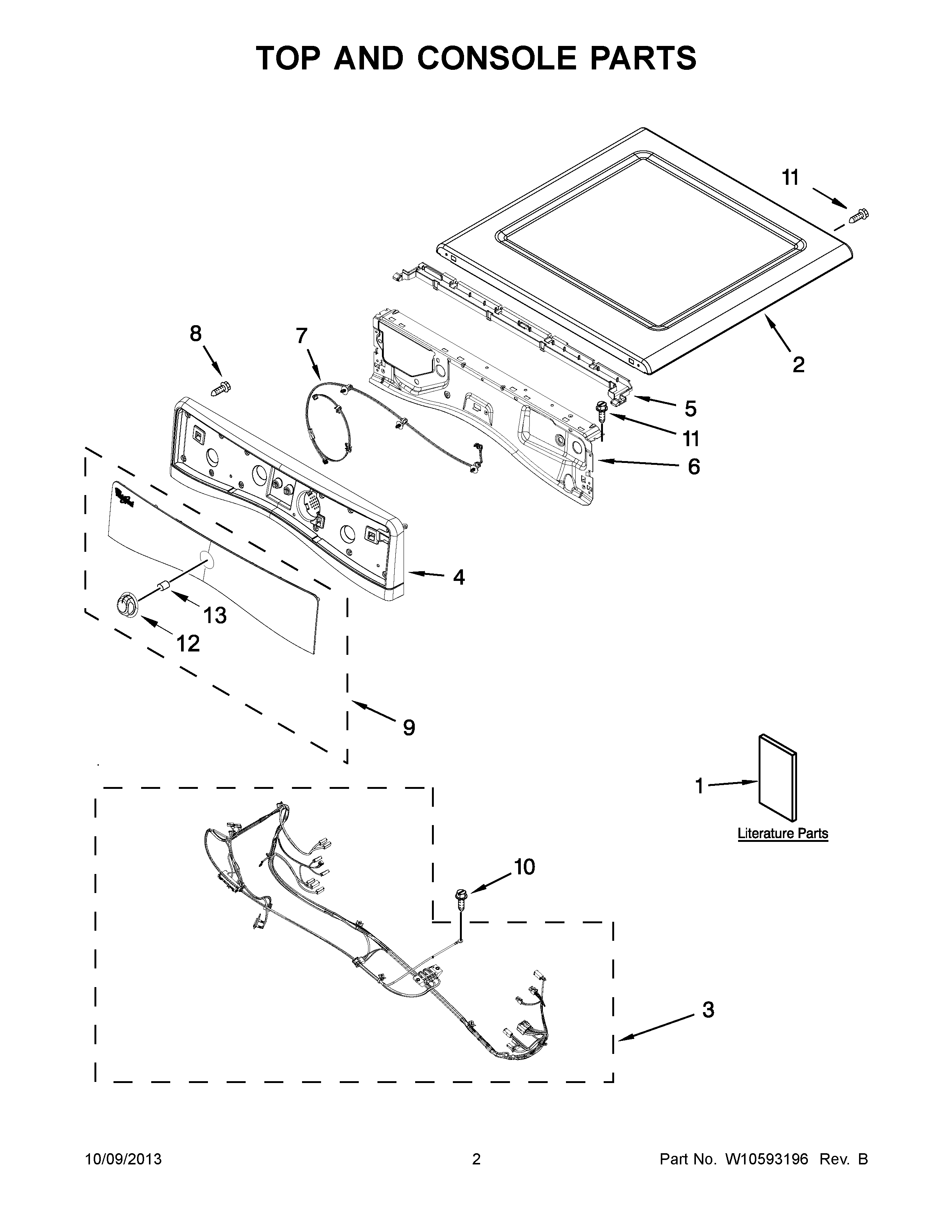

WGD86HEBC0 02 – TOP AND CONSOLE PARTS

WGD86HEBC0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD86HEBC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2WPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN WIRING
4W10876224 Whirlpool Console
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9W10553782 Whirlpool Control Panel
9WPW10553780 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12KNOB ASSEMBLY
13WP8536939 Whirlpool Spring Clip
