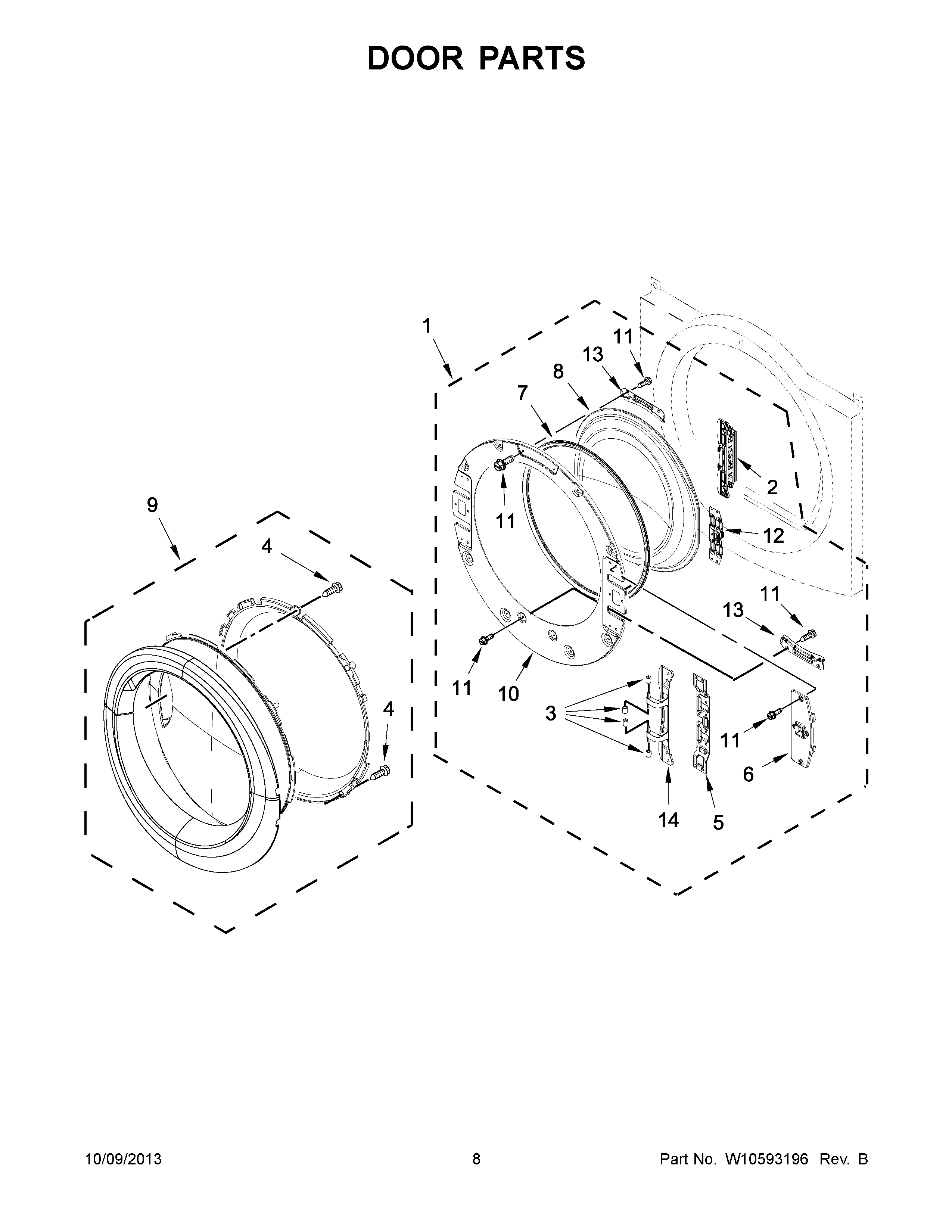

WGD86HEBC0 05 – DOOR PARTS

WGD86HEBC0 05 – DOOR PARTS

Written by

in

WGD86HEBC0 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	HINGE
3	WPW10208398 Whirlpool Hinge Pin Cap
4	SCREW
5	WPW10208419 Whirlpool Plate
6	W10772469 Whirlpool Door Catch Cover
7	W11126230 Whirlpool Seal
8	W11310036 Whirlpool Door Glass
9	W10877391 Whirlpool Door Assembly
10	DOOR, INNER
11	SCREW
12	WPW10208254 Whirlpool Catch
13	W10208252 Whirlpool Retainer
14	HINGE
