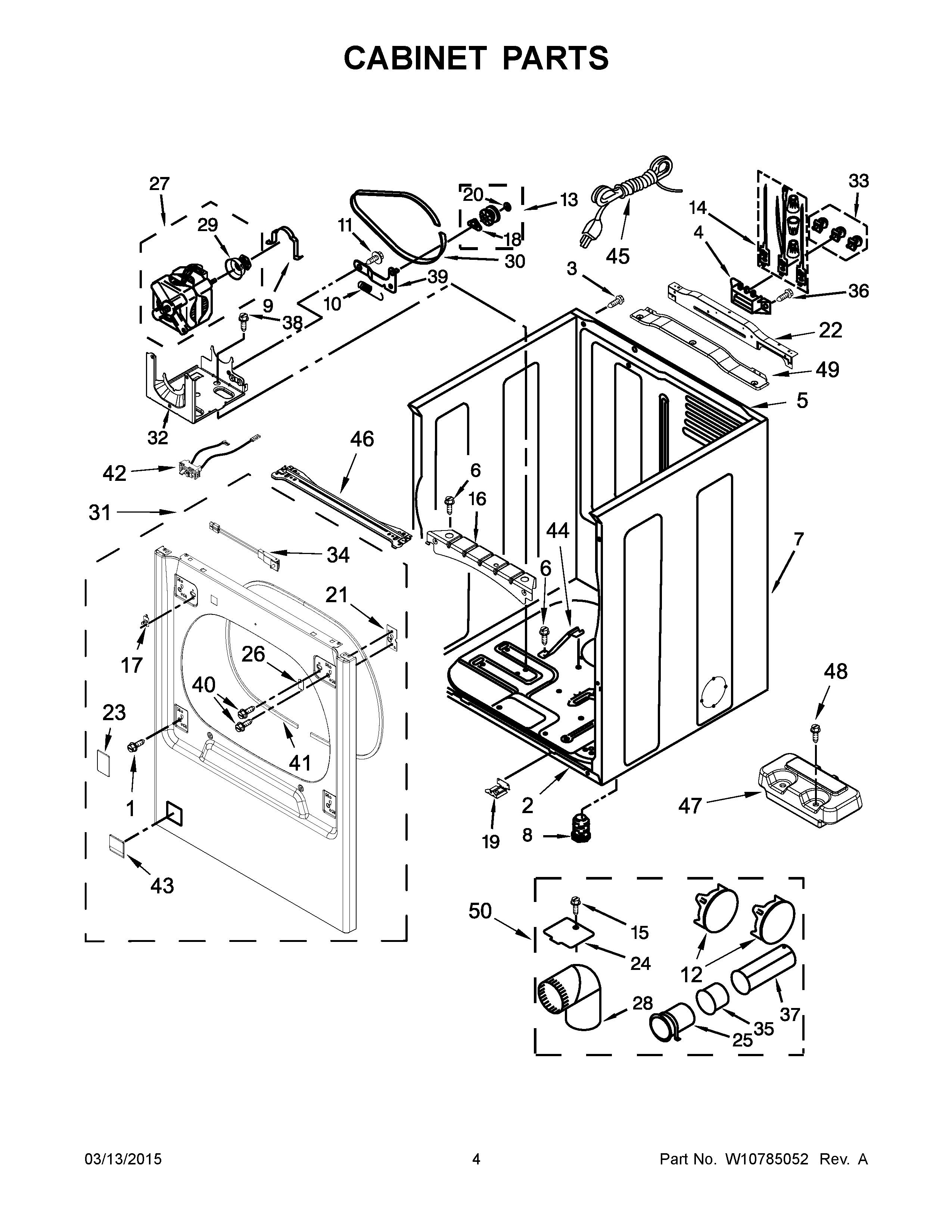

WGD8700EC0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP488627 Whirlpool Refrigerator Screw
2W10613683 Whirlpool Base
3W10636208 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5W10824896 Whirlpool Rear Panel
6WP693995 Whirlpool Screw
7W10681831 Whirlpool Panel Assembly
7AW10681830 Whirlpool Panel
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WPW10139210 Whirlpool Screw
16W11282908 Whirlpool Bracket
17W10725916 Whirlpool Strike
18WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19SPACER BRACKET, LOWER
20WPW10121334 Whirlpool Washer
21BRACKET, HINGE
22W10622391 Whirlpool Bracket
23W10596965 Whirlpool Plug
24WPW10354249 Whirlpool Cover
25WP8563747 Whirlpool Exhaust Pipe
26WPW10111888 Whirlpool Plate Assembly
27W11105178 Whirlpool Drive Motor
28WPW10416072 Whirlpool Elbow
29W11568637 Whirlpool Motor Pulley
30W10849499 Whirlpool Belt
31W10875891 Whirlpool Panel
32W10578053 Whirlpool Base Assembly
33279393 Whirlpool Terminal Block Screw and Nut Kit
34W11036551 Whirlpool Door Switch
35WPW10331278 Whirlpool Exhaust Pipe
36SCREW
37WP8563749 Whirlpool Exhaust Pipe
38SCREW
39W10837240 Whirlpool Dryer Idler Pulley
40WP3400805 Whirlpool Screw Assembly
41WP3387242 Whirlpool Seal
42W10847984 Whirlpool Switch
43W10391496 Whirlpool Plug
44W10181903 Whirlpool Bracket
45W11628810 Whirlpool Power Cord
46BRACE, CAB AND SEAL ASSEMBLY
47BALLAST
48SCREW
49W10651902 Whirlpool Bracket
50W10470674 Whirlpool Dryer Side Vent Exhaust Kit
