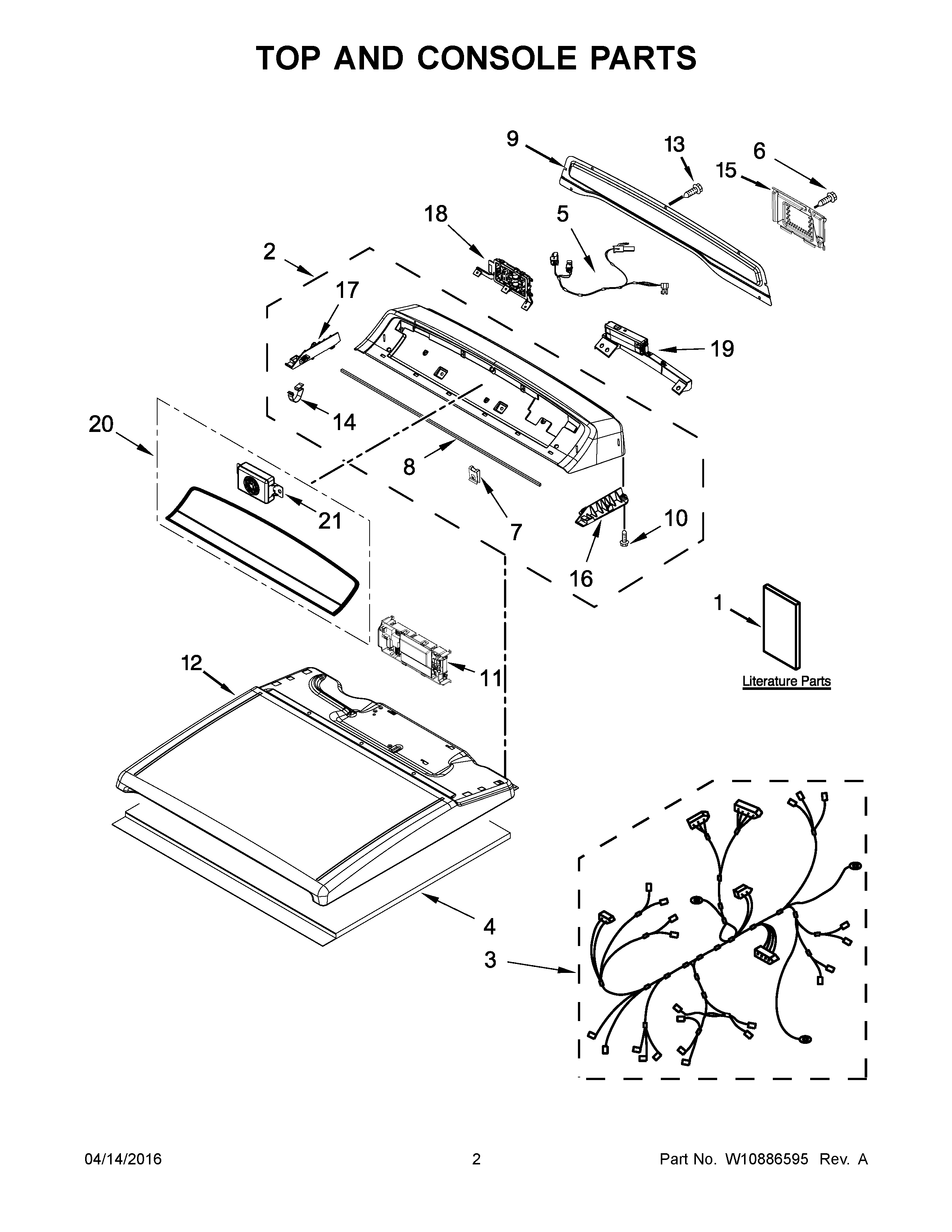

WGD8700EC2 02 – TOP AND CONSOLE PARTS

WGD8700EC2 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8700EC2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AOWNERS MANUAL
1BTECH SHEET
2W11116871 Whirlpool Console
3WIRING HARNESS
4W11668653 Whirlpool Sound Panel
5HARNESS, USER INTERFACE
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11WPW10786068-includeCORE Whirlpool WPW10786068 Washer Electronic Control Board + Core
12W11051477 Whirlpool Top
13WP9740848 Whirlpool Dishwasher Screw
14WP8312709 Whirlpool Endcap Clip
15W10819767 Whirlpool Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18WPW10721100-includeCORE Whirlpool WPW10721100 Refrigerator Electronic Control Board + Core
19W10833064-includeCORE Whirlpool W10833064 Washer Electronic Control Board + Core
20W10885296 Whirlpool Control Panel
21W11123146 Whirlpool Speaker
